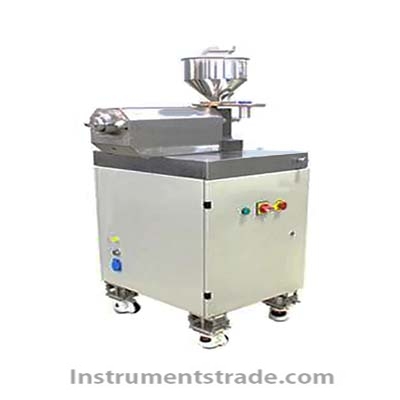

Introduction: Rheometer Workstation - Visualization Module The extrusion barrel is transparent, and it is a functional module that can observe the entire rheological process of polymer materials from solid state through compaction, transportation, melt plasticization, and homogenization. Scope of application 1. Visualizing Extrusion Research 2. Research on the dispersion process of dispersed phase 3. Research on polymer plasticization process 4. For the teaching of extruder principle Features: 1. The barrel made of high-performance transparent material and special process has good wear resistance and compression resistance 2. High-precision far-infrared temperature sensor, precise temperature control 3. The material is melted and conveyed, and the granulation and plastic extrusion are completed with the corresponding mold. Technical parameters: Model: RVSM-20/25 Screw diameter: 20 mm Aspect ratio: 25 L/D Working temperature: 250℃ Temperature control accuracy: ±1℃ Working pressure: 10MPa Heating/cooling method: electric heating/fan cooling Total power: 3 kW Total mass: 300 kg L×W×H: 750×690×1360 mm
