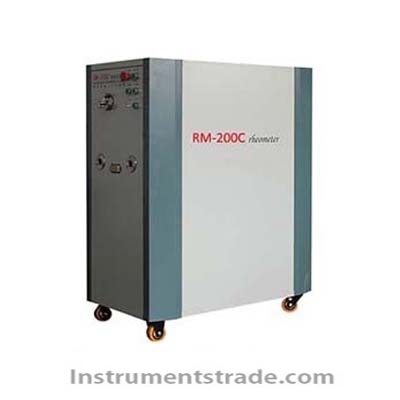

RM-200C torque rheometer for pvc powder material etc

Product ID：WLNlb003

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberRM-200C

Brand NameHEBHAPU

Payment TermsTT，PAYPAL，Alibaba.com Pay

Brief introduction
Torque rheometer is used to study polymer flow and deformation, and will result in torque - time and torque - temperature in the form of charts show the instrument and equipment; mainly used in the laboratory simulation production mixing, extrusion process, a series of data to guide the reality in the formulation of research and production.
Can be used to study the heat shrinkable, thermal stability, shear stability, dynamic rheological properties and plasticizing behavior. The effect of the dynamic stability of the material and the dynamic stability of the epoxy resin and the screw speed on the performance of the system.
Technical parameter
1.Movable Main Platform
RM-200C can be used to study the thermal stability, shear stability, flow and plastic behavior of thermoplastic materials, which can be used to determine the rheological properties of the system in a similar way.

Performance Index	Performance Parameter
Control Mode	Industry Bus
Mains connection	3×380V,50Hz +N +PE,32A
Fixing Mode	Movable
Power of Motor (Schneider)	4.08 KW
Motor Speed	3000 rpm
driver power	7.0 kw
Reducer(Neugart)	1:20 i
Speed Range	0 ~150 rpm
Speed Accuracy	0 .05% F.S
Temperature Control Mode	5 channels Measure, 4 channels Control
Static Measurement Accuracy of Temperature	+0.1℃
Dynamic Measurement Accuracy of Temperature	±0.5℃
Torque Range	0 ~ 250 Nm
Torque Accuracy	0.1% F.S
Pressure Range	0.1 ~ 100 Mpa
Pressure Accuracy	0.5% F.S
Computer	PC
Printer	Colour ink jet printer
Operating System	Window XP for 32bit
Application Software	Platform software Mixer software Extruder software Viscosity software DataViewer software

Movable Platform of Mixer
The mixer platform can be used for the thermal fusion testing of multi components, the curing properties of thermosetting materials, thermal stability test, shear sensitivity test, material mixing, and so on.

Performance Index	Performance Parameter
Chamber Volume	60 ml
Rotors Mode	Roller
Speed ratio of rotors	3:2
Max. Temperature	350℃
Max. Torque	150 Nm
Heating Means	Electrical Heating
Power / Zone	1000 W per zone
Heating zone	3 Zone
Melt temperature	1 Zone

3.Conical Twin-screw Extrusion Of The Rheometer System
Conical twin screw torque rheometer consists of a main control unit and the conical twin screw unit, can in the laboratory simulation conical twin screw extrusion machine production process. Using the unique structure design, make each time to the corrosive material experiment after the cleaning more easy and quick. This equipment is especially suitable for processing PVC powder material, with different mould, can be directly extruded board, pipe and profiled material, etc..

Performance Index	Performance Parameter
Diameter of Screw	20-39mm
Length of Screw	325mm
Twin-Barrel	Twin-Barrel
Length of Twin-Barrel	340mm
Melt Temperature	1 Zone
Power/Zone	800W/1 Zone
Heating Zone	3 Zone
Cooling Ways	Compressed Ai
Die	Flat film Die

Flat die:
Die size: 60 x 1.5mm
Heating power: 0.2KW (inlet heating tube) x 6=1.2KW
Two way temperature measurement: material temperature and mold temperature
One way pressure measurement: material pressure
4.Tractor
Material: 3Cr13
The design specification: 75mm * 0.8mm
Shape thickness range: 0.9~2.0mm
Stereotypes: the upper and lower surface friction, side and side of the free
Shaping mode: water cooling
Traction mode: traction
Traction motor: JSCC, manual speed control
Motor power: 60W
Traction speed: 0.24~2.5m/min

Brief introduction
Torque rheometer is used to study polymer flow and deformation, and will result in torque - time and torque - temperature in the form of charts show the instrument and equipment; mainly used in the laboratory simulation production mixing, extrusion process, a series of data to guide the reality in the formulation of research and production.
