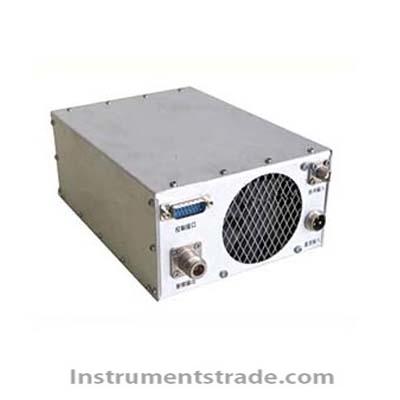

RSG50A RF Power Supply RF Generator

Product Introduction
The RSG50A RF Power Supply is a compact RF generator designed for university laboratories, research institutes, R&D applications, and automated production lines. It supports both local panel control and remote computer control, while the front-panel LED display provides real-time power information.
With continuously adjustable RF output from 2% to 100% of rated power, ±0.5% power stability, fast 10 ms power response, and multiple industrial RF frequency options, the RSG50A can be integrated into both laboratory RF systems and automated closed-loop production equipment.

Performance Features
•   5–50W RF output range with user fine-tuning of ±20%.
•   2–100% continuously adjustable output power for flexible RF power control.
•   ±0.5% power stability at rated output.
•   ±0.005% frequency stability for stable RF operation.
•   10 ms power response time from rated output start.
•   Multiple RF frequencies: 13.56, 27.12, 40.68, 81.36, and 100 MHz, with other industrial frequencies available.
•   Multiple output modes: continuous wave (CW) and rectangular square wave.
•   50Ω output impedance for standard RF system matching.
•   VSWR ≤2.0 withstand capability.
• Low harmonic distortion: second harmonic below -50 dB; third and higher harmonics below -55 dB.
•   Forward and reverse power LED display for convenient operating monitoring.
•   Flexible control: analog interface, RS485, or RS232 communication.
• Local and remote operation: supports panel control and computer-based control.
•   DC 24V power supply and forced-air cooling.
• Designed for laboratory research and automated closed-loop production systems.

Working Principle
The RSG50A generates a stable RF signal using a quartz-crystal-controlled excitation source and RF power amplification circuitry. The selected RF frequency is converted into the required RF output signal and amplified to the target power level.
The output power can be continuously adjusted from 2% to 100% of rated power, while the control system maintains power stability within ±0.5% at rated output. Forward and reverse power information can be monitored through the LED display.
The RF output is delivered through a standard coaxial connector with a 50Ω output impedance. For automated applications, the analog interface or optional RS485/RS232 communication interface allows the RF generator to be incorporated into remote or closed-loop control systems.

Technical Specifications

Parameter	Specification
Model	RSG50A
Rated Output Power	50 W
Output Power Setting	5–50 W
Fine-Tuning Range	±20%
Adjustable Output	2–100% of rated power, continuously adjustable
Power Stability	±0.5% of rated power output
Frequency Stability	±0.005%
Power Response Time	10 ms from rated output start
RF Signal	Standard sine wave
Excitation	Imported quartz crystal excitation
Standard Frequencies	13.56 / 27.12 / 40.68 / 81.36 / 100 MHz
Other Frequencies	Other industrial frequencies available
Signal Output Modes	Continuous wave (CW) / rectangular square wave
Output Impedance	50 Ω
Withstand VSWR	≤2.0
Second Harmonic	< -50 dB
Third & Higher Harmonics	< -55 dB
Power Supply	DC 24V
Unit Efficiency	70% at 50W output
Cooling	Forced air
Ambient Temperature	0–40°C
Relative Humidity	≤85%
Control Interface	Analog interface / RS485 / RS232
Output Interface	Standard coaxial connector, negative

Application Scenarios
The RSG50A RF generator is suitable for:
•   University and college RF laboratories
•   Research institutes and R&D centers
•   RF electronics experiments
•   Plasma and high-frequency experimental systems
•   RF material processing research
•   Automated production lines
•   Industrial RF equipment
•   Closed-loop RF power control systems
•   Applications requiring 13.56 MHz or other industrial RF frequencies

RSG50A vs. Conventional RF Generators

Feature	RSG50A RF Power Supply	Conventional RF Generator
Rated Power	50 W	Depends on model
Output Adjustment	2–100% continuously adjustable	Varies
Power Stability	±0.5%	Varies
Frequency Stability	±0.005%	Varies
Frequency Options	Multiple industrial RF frequencies	Usually model-dependent
Output Modes	CW / rectangular square wave	Varies
Power Response	10 ms	Varies
Output Impedance	50 Ω	Typically 50 Ω
Harmonic Suppression	2nd < -50 dB; 3rd+ < -55 dB	Varies
Remote Control	Analog / RS485 / RS232	Depends on configuration
Local Control	Panel control + LED display	Varies
Application	Laboratory + automated production	Often application-specific

FAQ
1. What is the rated output power of the RSG50A?
The RSG50A has a 50W rated RF output, with a specified output setting range of 5–50W.
2. Can the RF output power be continuously adjusted?
Yes. The RF output can be continuously adjusted from 2% to 100% of rated power.
3. What RF frequencies are available?
Standard frequency options include 13.56 MHz, 27.12 MHz, 40.68 MHz, 81.36 MHz, and 100 MHz. Other industrial frequencies can also be provided.
4. What output waveforms does the RSG50A support?
It supports continuous-wave (CW) and rectangular square-wave output modes.
5. How stable is the RF power?
The specified power stability is ±0.5% of rated power output.
6. How quickly does the RF power respond?
The specified power response time is 10 ms from rated output start.
7. What is the RF output impedance?
The standard RF output impedance is 50Ω.
8. Can the RSG50A be remotely controlled?
Yes. It supports an analog interface, with RS485 and RS232 communication protocols available for remote computer control.
9. Is the RSG50A suitable for automated production lines?
Yes. Its remote-control interfaces and stable RF output make it suitable for integration into automated production lines and closed-loop control systems.
10. What power supply does the RF generator require?
The RSG50A uses a DC 24V power supply and forced-air cooling.
