Sales RFG-300 RF power supply，Manufacturer

Position: Home > > Industry specific instrument > Other industries special instruments > RF power supply > RFG-300 RF power supply

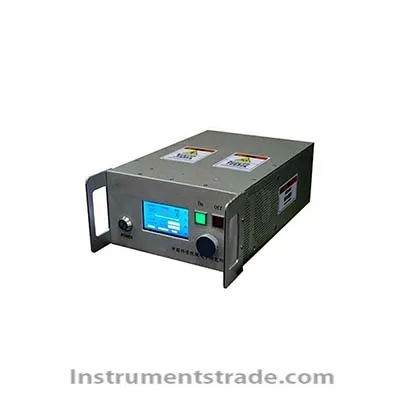

RFG-300 RF power supply

Product ID：OtherRFdy005

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberRFG-300

Brand NameYIMA

Payment TermsT/T, paypal

Introduction:
The RF power supply is a plasma supporting power supply. It consists of a RF power source, an impedance matcher and an impedance power meter. It is an emerging high-tech field in my country in the late 1980s. etching and other equipment.
The modern RF power supply has developed by leaps and bounds, from the tube power supply in the 1980s to the current transistor RF power supply step by step. 40.68Mhz, etc., and the application has also expanded from the previous vacuum field to other fields, semiconductor, beauty and so on.
Technical parameters:

Electrical parameters	Index
Output power	1W-300W continuously adjustable , forward and reverse power true color LCD intelligent display
RF last level of efficiency	≥86%(300W output)
Power stability	≤ ±0.5%(Rated power output)
Frequency stability	±10ppm
Withstand the maximum reflected power	300W
The maximum output power margin	20%
Harmonic output	Second harmonic less than -50dB, three times , and higher -order harmonic less than -55dB
Frequency signal	13.56MHz standard sine
Machine efficiency	≥70%

Introduction:
The RF power supply is a plasma supporting power supply. It consists of a RF power source, an impedance matcher and an impedance power meter. It is an emerging high-tech field in my country in the late 1980s. etching and other equipment.
The modern RF power supply has developed by leaps and bounds, from the tube power supply in the 1980s to the current transistor RF power supply step by step. 40.68Mhz, etc., and the application has also expanded from the previous vacuum field to other fields, semiconductor, beauty and so on.
