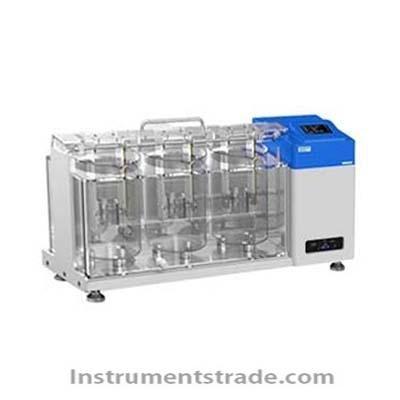

RBY-N intelligent fusion time limit tester for Drug suppository testing

Product ID:HZYJrbsx009

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberRBY-N
    Brand NameHUANGHAIYAOJIAN
    Payment TermsTT,PAYPAL
    RBY-N intelligent fusion time limit tester

    Introduction:
    RBY-N intelligent melting time limit tester follows the current "Chinese G Pharmacopoeia 2020 Edition" specification, and is used to check the process and time analysis of the melting, softening or dissolving of solid preparations such as suppositories and vaginal tablets under specified conditions.
    Features:
    1. User rights management: Follow GMP norms to set up three levels of different user rights.
    2. Logging: Used for audit trail queries.
    3. Experimental records: 10,000 experimental records can be saved, and complete experimental records can be output through the device interface, printing or USB.
    4. Sample information management: Commonly used sample information is entered, which is convenient for retrieval and use.
    5. Simple operation: HD touch screen, simple interface, minimalist operation mode.
    6. Real-time constant temperature control: high precision, fast heating, small temperature drift, double over-temperature protection and temperature calibration functions.
    7. Pre-heating function: There is a timed heating inside, and the user can set the system to start heating at a specified time.
    8. Circulating water bath system: more convenient pipeline design, professional medical grade quick connector.
    9. Adjustable flip frequency: change the flip frequency of the experimental device (1-30min) according to the needs of different experiments.
    Technical parameter:
    Item model number: RBY-N
    Product Number: 10106101
    Experimental device: 3 groups, automatic synchronous flip
    Beaker volume: 5000ml
    Transparent cylinder: inner diameter 52mm, height 60mm
    Stainless steel round plate: 2 pieces, diameter 50mm, each with 39 round holes of 4mm
    Flip frequency: default 10 minutes/time, adjustable (1-30 minutes/time)
    Flip angle: 180°
    Timing range: ≤999 hours 99 minutes 99 seconds
    Temperature adjustment range: room temperature~45
    Temperature control accuracy: <±0.3
    Temperature Resolution: 0.1
    Working environment: temperature 5 ~ 35 , relative humidity <80%
    Power supply: AC220V±10%, 50Hz
    Machine power: 1100W
    Dimensions (L×W×H): 91×29×48cm
  • Introduction:
    RBY-N intelligent melting time limit tester follows the current "Chinese G Pharmacopoeia 2020 Edition" specification, and is used to check the process and time analysis of the melting, softening or dissolving of solid preparations such as suppositories and vaginal tablets under specified conditions.
