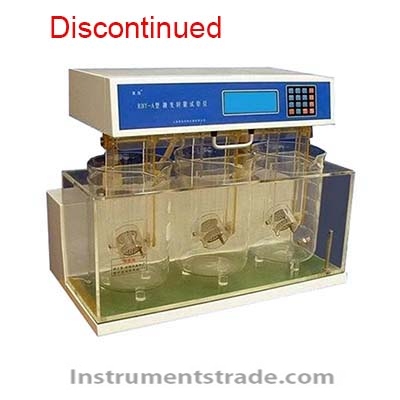

RBY-A melting time limit tester for Suppository melting performance test

Product ID:HZYJrbsx004

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberRBY-A
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
        RBY-A intelligent melt-change tester in summing up the experience of years of production melting machine on the basis of successful experience, developed a utility model drug melting device in the lifting system, the use of a unique automatic lift manually to ensure that the test The use of containers and easy to clean, constant temperature water cycle to achieve ± 0.1 accuracy, in line with the National Pharmacopoeia 2005 version of the standard.
    Features:
        1. Automatic temperature control, automatic chronograph, timing flipping indication, fault alarm.
        2. Automatic, automatic detection, automatic diagnosis, automatic alarm.
        3. The number of sleeve grid: three sets.
        4. Grid adopts imported stainless steel.
        5. Sleeve lathe flip mode: automatic flip
        6. Host parameters can be preset and automatically stored, the next boot without repeated settings.
        7. With self-test function and automatic protection function, given a variety of fault signals.
        8. Can be an external micro-printer function.
        9. With USB storage function, the experimental data retention, in order to view.
        10. Constant temperature using PID mode, can be easily used to correct the deviation of the software.
        11. Cleaning speed can be set arbitrarily.
    Technical indicators:
        1. Transparent sleeve: high 60 mm by 52 mm.
        2. Stainless steel grid: two 50 mm diameter of the 39 4 mm hole
        3. Speed ​​range: 10-100 r / min
        4. Speed ​​range: 10-100 r / min
        5. Temperature range: 30 (room temperature) -45
        6. Temperature resolution: 0.1
        7. Temperature error: ± 0.1
        8. Sleeve grid rollover frequency: 1 time / 10 points
        9. Timing function Displays the current sampling time, cumulative total time, sampling points
        10. Sampling cycle time: up to 0-999 minutes, countdown
        11. Power supply: AC220V ± 10%, 50Hz, 1250W
        12. Working environment conditions: temperature 5-40 , relative humidity 80% HR

  • Introduction:
        RBY-A intelligent melt-change tester in summing up the experience of years of production melting machine on the basis of successful experience, developed a utility model drug melting device in the lifting system, the use of a unique automatic lift manually to ensure that the test The use of containers and easy to clean, constant temperature water cycle to achieve ± 0.1 accuracy, in line with the National Pharmacopoeia 2005 version of the standard.
