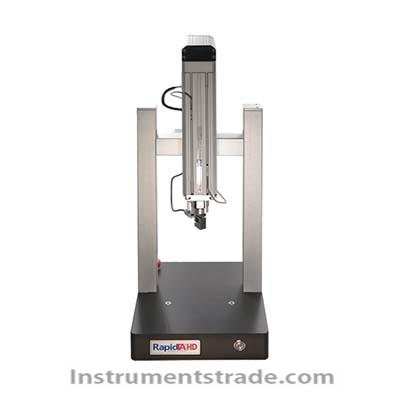

Rapid HD practical dual-column texture analyzer Introduction: The Rapid HD practical dual-column domestic texture analyzer boasts strong practicality, wide testing scope, and convenient operation (no need for complex training, one-click operation, and real-time automatic display of results). This instrument is affordable and suitable for scientific research and teaching in universities, vocational colleges, and research institutes, as well as for quality control and research and development of enterprise products, and texture analysis and physical property testing in fields such as food, agriculture, animal husbandry, aquatic products, forestry, tobacco, cosmetics, chemical industry, medicine, and materials. Technical Specifications: Test indicators: hardness, brittleness, viscosity, tenderness, cohesiveness, chewiness, relaxation, softness, breaking strength, tensile strength, adhesiveness, resilience, elasticity, ductility, gel strength, maturity, meat water holding capacity, and other indicators. Force sensor measurement range: 0-100kg; using replaceable load sensing components, with options including 0.5kg, 1kg, 5kg, 20kg, 30kg, 50kg, and 100kg load sensing components. Force sensing element accuracy: It can be verified and calibrated using third-party standard weights, in compliance with ISO 7500 Part 1 or ASTM E4 standards. Test software: Switch between Chinese and English at any time for texture analysis and physical property testing of various samples. During the software testing process, the software features a real-time display box, allowing real-time display of process data, enabling users to directly observe changes in the detection spectrum. Test method: The software settings interface shall visually display no fewer than 8 test modes simultaneously; meanwhile, the mode, starting point, target, time, test speed value, serial number, file name, hardness, brittleness, and sample height shall be loaded into the software test interface simultaneously. The instrument testing conforms to the following standards: Standard AACC 66-50 for noodle firmness determination, Standard AACC 74-09 for bread hardness determination, National Standard GB 28304-2012 for carrageenan gel strength determination, National Standard GB 6783-2013 for food additive (gelatin) coagulation strength determination, National Standard GB/T 36187-2018 for surimi gel strength determination, and Agricultural Industry Standard NY/T 1180-2006 for meat tenderness determination. Test results: The original data is automatically saved in Excel format for ease of future analysis, and the software automatically calculates the results. Multiple test curves can be superimposed for comparative analysis, and single test curves can also be exported. Test results can be exported in bulk in Excel format, which is convenient and fast. Instrument protection features: force sensor overload protection, emergency stop button, and upper and lower limit electrical signal indicator light limit protection device. Mobile arm design: A sealed design is adopted to ensure no direct contact with air, moisture, dust, etc.
Rapid HD practical dual-column texture analyzer Introduction: The Rapid HD practical dual-column domestic texture analyzer boasts strong practicality, wide testing scope, and convenient operation (no need for complex training, one-click operation, and real-time automatic display of results). This instrument is affordable and suitable for scientific research and teaching in universities, vocational colleges, and research institutes, as well as for quality control and research and development of enterprise products, and texture analysis and physical property testing in fields such as food, agriculture, animal husbandry, aquatic products, forestry, tobacco, cosmetics, chemical industry, medicine, and materials.
