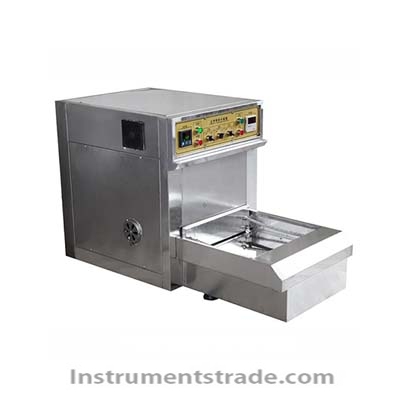

R-3 Automatic Fabric Sample Dryer and Stenter

Product Introduction
The R-3 Automatic Fabric Sample Dryer and Stenter is a compact textile laboratory machine designed for drying, heat setting, resin finishing, pad dyeing baking, and thermosetting tests on fabric samples.
With a test fabric size of 300 × 400 mm and an effective working size of 250 × 350 mm, the R-3 is suitable for small-sample process development in dyeing and finishing laboratories. Its hot-air circulation system provides adjustable upper and lower airflow, while the digital temperature control system supports stable heating from 20°C to 250°C.
The machine is manufactured from high-quality SUS304 stainless steel and features preset timing, automatic cycle completion, audible notification, and a two-group bidirectional stretching pin-frame system.

Performance Features
• Designed for textile dyeing and finishing laboratory applications.
• Supports fabric drying, heat setting, resin processing baking, pad dyeing baking, and thermosetting tests.
• Constructed from corrosion-resistant SUS304 stainless steel.
• Hot-air circulation system with adjustable upper and lower airflow.
• Digital automatic temperature control with temperature accuracy of approximately ±2%.
• Wide working temperature range from 20°C to 250°C.
• Preset heating and holding time from 10 seconds to 6 minutes.
• Automatically exits the working cycle and provides an audible alarm when the process is completed.
• Equipped with a stainless steel fan wheel and 180 W fan motor.
• Includes two groups of bidirectional stretching needle boards for fabric fixing.
• Available in vertical and horizontal configurations.
• Compact design suitable for laboratory and small-sample testing.

Working Principle
The R-3 automatic fabric sample dryer uses an electric heating system to generate hot air. The fan circulates the heated air through the working chamber, allowing heat to transfer evenly to the fabric sample.
The fabric is fixed on the bidirectional stretching pin frame to maintain the required width and shape during drying or heat setting. The digital temperature controller regulates the heating system according to the preset temperature, while the adjustable upper and lower airflow helps improve drying and finishing uniformity.
The operator can preset the processing time between 10 seconds and 6 minutes. After the cycle is completed, the machine automatically exits the working process and activates an audible alarm.

Technical Parameters

Parameter	Specification
Model	R-3
Product Type	Automatic fabric sample dryer and stenter
Application	Drying, heat setting, resin baking, pad dyeing baking, and thermosetting
Test Fabric Size	300 × 400 mm
Effective Working Size	250 × 350 mm
Construction Material	SUS304 stainless steel
Heating Method	Electric heating with hot-air circulation
Airflow	Adjustable upper and lower airflow
Temperature Control	Digital automatic temperature control
Temperature Accuracy	Approximately ±2%
Working Temperature	20–250°C
Electric Heating Power	6 kW
Preset Processing Time	10 seconds–6 minutes
Fan Wheel	Stainless steel
Fan Motor Power	180 W
Fabric Holding System	Two groups of bidirectional stretching needle boards
Power Supply	Three-phase 380 V, 50 Hz
Vertical Dimensions	800 × 760 × 1,030 mm (D × W × H)
Horizontal Dimensions	1,320 × 660 × 800 mm (D × W × H)
Weight	Approximately 120 kg

Application Scenarios
The R-3 automatic fabric sample dryer and stenter is suitable for:
• Textile dyeing and finishing laboratories
• Fabric drying experiments
• Laboratory heat setting tests
• Resin finishing and baking tests
• Pad dyeing process development
• Thermosetting experiments
• Fabric dimensional stability testing
• Textile process optimization
• Small-sample finishing trials
• Research and quality control in textile mills

R-3 vs. Conventional Laboratory Drying Oven

Comparison Item	R-3 Automatic Fabric Sample Dryer and Stenter	Conventional Laboratory Drying Oven
Main Function	Drying, heat setting, resin baking, and fabric finishing	Mainly general-purpose drying
Fabric Fixing	Bidirectional stretching needle boards	Usually no fabric stretching frame
Airflow	Adjustable upper and lower hot-air circulation	Often fixed or less adjustable
Temperature Range	20–250°C	Depends on oven design
Sample Size	300 × 400 mm, effective 250 × 350 mm	Often designed for loose samples
Timing Control	Preset 10 seconds–6 minutes with automatic alarm	May require manual timing
Fabric Shape Control	Supports width and shape retention during treatment	Limited
Construction	SUS304 stainless steel	Varies by model
Textile Applications	Specifically designed for dyeing and finishing tests	General laboratory heating applications

Frequently Asked Questions
1. What is the R-3 automatic fabric sample dryer used for?
The R-3 is used for textile laboratory drying, heat setting, resin processing baking, pad dyeing baking, and thermosetting tests.
2. What is the maximum working temperature?
The working temperature range is 20°C to 250°C.
3. What size of fabric sample can be tested?
The standard test fabric size is 300 × 400 mm, with an effective working size of 250 × 350 mm.
4. Does the machine provide hot-air circulation?
Yes. The R-3 uses a hot-air circulation system with adjustable upper and lower airflow.
5. How is the fabric fixed during testing?
The machine uses two groups of bidirectional stretching needle boards to hold and stretch the fabric sample during drying or heat setting.
6. Can the processing time be preset?
Yes. The processing time can be preset from 10 seconds to 6 minutes. After completion, the machine automatically exits the cycle and provides an audible alarm.
7. What material is used for the machine body?
The machine is manufactured from high-quality SUS304 stainless steel, providing good corrosion resistance and durability.
8. What power supply is required?
The R-3 requires a three-phase 380 V, 50 Hz power supply, with a 6 kW electric heating system.
9. Is the R-3 available in different configurations?
Yes. The machine can be arranged in either a vertical or horizontal configuration. The dimensions differ according to the selected configuration.
