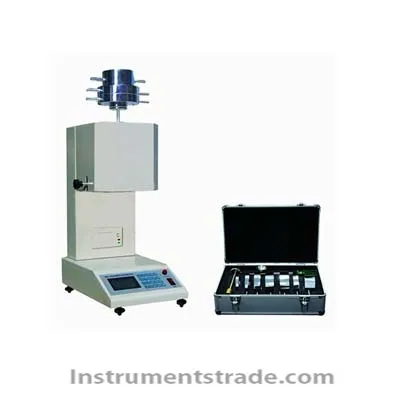

R-1811A melt flow rate meter

Product ID:HZXSrrzs009

Price: Please inquire PDF Format
Supply Ability:60SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberR-1811A
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
    Melt flow rate meter is designed according to GB / T3682-2000, ASTM D1238-98 standard and see JB / T5456, ISO1133 and other similar standards designed and manufactured for the determination of thermoplastic melt volume flow rate (MFR) of the instrument, the measured melting Body mass flow rate using automatic sampling, balance weighing method; and then calculate the volume flow rate according to the formula. The final result of the measurement is displayed on the LCD screen of the instrument and output by the micro-printer. The instrument has the advantages of accurate measurement data, simple and intuitive operation, stable and reliable performance, suitable for engineering plastics such as fluoroplastic and nylon, but also for polyethylene (PE), polypropylene (PP), polyoxymethylene (POM) Ethylene (PS) ABS resin, polycarbonate and other low melting temperature plastic determination. Widely used in plastic production, plastic products, petrochemical and other industries and the relevant tertiary institutions, research institutes, commodity inspection departments.
    Technical Parameters:
    1, squeeze out the part:
    Outlet diameter: Φ2.095 ± 0.005 mm
    The discharge port length: 8.000 ± 0.025 mm
    Loading cylinder diameter: Φ9.550 ± 0.025 mm
    Loading cylinder length: 152 ± 0.1 mm
    Piston rod head diameter: 9.475 ± 0.015 mm
    Piston head length: 6.350 ± 0.100 mm
    2, the standard test load (kg a total of eight)
    Level 1: 0.325kg = (Piston rod + weight tray + heat shield +1 weight body) = 3.187N
    Level 2: 1.200 kg = (0.325 + 2 0.875 weight) = 11.77 N.
    Level 3: 2.160 kg = (0.325 + 3, 1.835 weight) = 21.18 N.
    Level 4: 3.800 kg = (0.325 + 4 3.475 weight) = 37.26 N.
    Level 5: 5.000 kg = (0.325 + 5 No. 4.675 weight) = 49.03 N.
    Level 6: 10.000 kg = (0.325 + 5 No. 4.675 weight + 6 No. 5.000 weight) = 98.07 N
    Level 7: 12.500 kg = (0.325 + 5 No. 4.675 weight + 6 No. 5.000 + 7 No. 2.500 weight) = 122.58 N
    Level 8: 21.600 kg = (0.325 + 2 0.875 Weight +3 1.835 + 4 3.475 + 5 4.675 + 6 5.000 + 7
    2.500 + 8 2.915 weight) = 211.82 N.
        3, Display: LCD display
        4, print the test report: support
        5, test methods: Quality Method (MFR)
    6, temperature range: room temperature --- 400 .
    7, constant temperature accuracy: ± 0.2
    8, resolution: 0.1
    9, scraping way: automatic / manual
    10, the power supply voltage: 220V ± 10% 50Hz
    11, the working environment conditions: the ambient temperature is 10 -40 ; relative humidity of 30% -80%; no corrosive media around, on a solid foundation installed correctly and transferred to the level. No strong air convection; No vibration around, no strong magnetic field interference.
    12, instrument dimensions: 510 × 370 × 600
    13, Weight (kg): Host 25kg weight 21.6kg

  • Introduction:
    Melt flow rate meter is designed according to GB / T3682-2000, ASTM D1238-98 standard and see JB / T5456, ISO1133 and other similar standards designed and manufactured for the determination of thermoplastic melt volume flow rate (MFR) of the instrument, the measured melting Body mass flow rate using automatic sampling, balance weighing method; and then calculate the volume flow rate according to the formula. The final result of the measurement is displayed on the LCD screen of the instrument and output by the micro-printer. The instrument has the advantages of accurate measurement data, simple and intuitive operation, stable and reliable performance, suitable for engineering plastics such as fluoroplastic and nylon, but also for polyethylene (PE), polypropylene (PP), polyoxymethylene (POM) Ethylene (PS) ABS resin, polycarbonate and other low melting temperature plastic determination. Widely used in plastic production, plastic products, petrochemical and other industries and the relevant tertiary institutions, research institutes, commodity inspection departments.
