QL-HW2000C High-Frequency Infrared Carbon Sulfur Analyzer

Product Overview

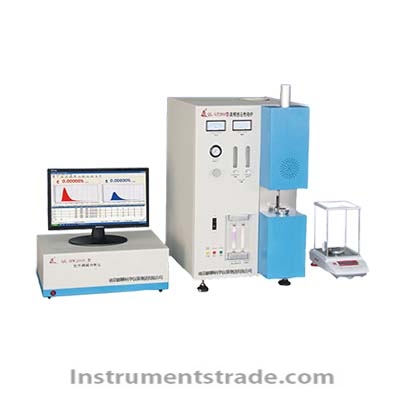

The QL-HW2000C High-Frequency Infrared Carbon Sulfur Analyzer is designed for rapid and accurate determination of carbon and sulfur in metals, alloys, minerals, cement, coke, catalysts and other materials. Used together with the GP-2000 high-frequency induction combustion furnace, the system combines high-frequency combustion with infrared absorption detection.
The analyzer provides a wide measurement range, high sensitivity, strong interference resistance and reliable analytical performance. Its integrated optical, electronic, mechanical and computer-controlled design supports continuous laboratory operation and routine quality control.

Key Features
• High-frequency combustion combined with infrared absorption detection for rapid C/S analysis.
• Wide measurement ranges: C 0.0001%–25.0000% and S 0.0001%–15.0000%, expandable to 99.999%.
• High sensitivity of 0.1 ppm for carbon and sulfur analysis.
• Adjustable analysis time from 20–100 seconds, typically approximately 35 seconds.
• Dual-CPU modular control system with high-speed 24-bit ADC sampling and USB 2.0 communication.
• High-frequency furnace with automatic leakage detection, over-current and timeout alarms, and adjustable heating conditions.

Working Principle
The analyzer uses the high-frequency combustion–infrared absorption method. During analysis, the sample is combusted in the GP-2000 high-frequency induction furnace. Carbon and sulfur in the sample are converted mainly into CO₂ and SO₂.
CO₂ and SO₂ selectively absorb infrared radiation at characteristic wavelengths. The analyzer uses approximately 4.26 μm for CO₂ and 7.4 μm for SO₂. Infrared radiation generated by the source passes through the analysis cell, where it is selectively absorbed by the target gases.
The detector converts the remaining infrared radiation into an electrical signal. After amplification, analog-to-digital conversion, calibration, linearization and integration by the computer system, the measured gas concentration is converted into the corresponding carbon and sulfur content of the sample.
The optical system includes an infrared source, modulation motor, analysis cell, narrow-band filters and pyroelectric detectors. The modulation motor converts the optical signal into a 64 Hz alternating radiation signal, helping improve detection stability and resistance to electrical interference.

Technical Specifications

Parameter	Specification
Measurement Elements	Carbon (C) and Sulfur (S)
Analytical Principle	High-frequency combustion + infrared absorption
Carbon Range	0.0001%–25.0000%
Sulfur Range	0.0001%–15.0000%
Extended Range	Up to 99.999%
Standard Sample Weight	0.5 g for solid steel standards
Sensitivity	0.1 ppm for C/S
Analysis Time	20–100 s adjustable; typically 35 s
Operating Cycle	24-hour continuous operation
Analytical Accuracy	Complies with GB/T 20123-2006 and ISO 15350:2000
High-Frequency Furnace Power	2200 W
Furnace Frequency	20 MHz
Furnace Control	Current / voltage / power adjustment
Gas Flow Control	High-precision flow controller
Dust Filter	0.4 μm microporous metal filter
Sampling	High-speed 24-bit ADS1224 ADC
Communication	USB 2.0
Furnace-to-Detector Connection	High-speed optical fiber
Infrared Source	Platinum infrared source
Detector	High-precision pyroelectric infrared detector
Analysis Cell	Gold-plated carbon/sulfur analysis cell
Modulation Frequency	64 Hz
Motor	Stepper motor
Motor Service Life	Up to 100,000 h

Applications
• Steel, cast iron and other ferrous metals
• Alloy and non-ferrous metal analysis
• Foundry core sand
• Cement and mineral materials
• Coke and carbon-containing materials
• Catalysts and chemical materials
• Metallurgical quality control and incoming material inspection
• Research laboratories and industrial process control

Applicable Standards
• GB/T 20123-2006
• ISO 15350:2000

Comparison

Feature	QL-HW2000C High-Frequency IR Analyzer	Conventional Chemical Analysis	Combustion + Non-IR Detection
Detection Method	Infrared absorption	Chemical reaction/titration	Combustion with alternative detection
C/S Simultaneous Analysis	Yes	Usually requires separate procedures	Depending on configuration
Analysis Speed	Typically ~35 s	Relatively slow	Generally fast
Sample Preparation	Small solid sample	Often more complex	Usually moderate
Measurement Range	Wide	Method dependent	Method dependent
Automation	High	Moderate	Moderate to high
Continuous Operation	24 h	More operator dependent	Configuration dependent
Typical Use	Metals, minerals, cement, coke and industrial materials	Laboratory chemical analysis	Routine elemental analysis

FAQ
Q1: What materials can the QL-HW2000C analyze?
It can analyze steel, iron, alloys, foundry core sand, non-ferrous metals, cement, minerals, coke, catalysts and various other carbon- and sulfur-containing materials.
Q2: What is the detection principle of the analyzer?
The system uses high-frequency induction combustion to convert carbon and sulfur into gaseous products, followed by infrared absorption detection of CO₂ and SO₂.
Q3: Can carbon and sulfur be measured simultaneously?
Yes. The QL-HW2000C is designed for simultaneous carbon and sulfur determination.
Q4: How long does one analysis take?
The analysis time can be adjusted from 20 to 100 seconds, with approximately 35 seconds being typical.
Q5: What is the standard sample weight?
The standard sample weight is 0.5 g for solid steel reference materials. The appropriate sample weight may vary depending on material composition and concentration.
Q6: Is the analyzer suitable for continuous laboratory operation?
Yes. The system is designed for 24-hour continuous operation and incorporates automatic leakage detection, over-current protection and dust-cleaning functions.
Q7: What is the role of the high-frequency furnace?
The GP-2000 high-frequency induction furnace rapidly combusts the sample and converts carbon and sulfur into measurable gaseous compounds for infrared detection.
