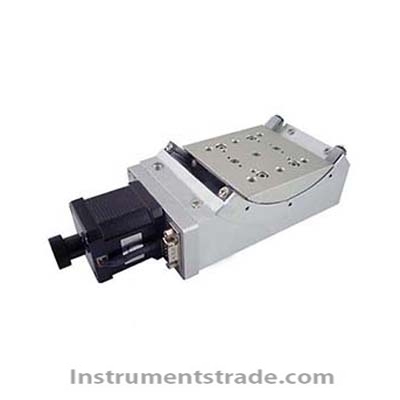

PT-GD303 electric high precision angle table

Product ID:GSYwytai018

Price: Please inquire PDF Format
Supply Ability:120 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberPT-GD303
    Brand NamePAIDIWEI
    Payment TermsT/T, paypal
    PT-GD303 electric high precision angle table

    Features:
    1. Standard stepping motor and RS232 interface, the company's self-developed motion controller can achieve automatic control
    2. The rotating shaft system is precision machined by multi-channel technology, with high precision, large load capacity and long service life.
    3. It adopts precision research and development of worm gear and worm structure, which is comfortable to move, can rotate in any forward and reverse direction and has very small backlash.
    4. Designed a sophisticated air-back structure to adjust the backlash caused by long-term use
    5. The special structural design ensures the extremely low yaw and tilt of the angle table, which makes the movement more stable.
    6. The scale circle on the periphery of the table is a laser marking ruler, and the scale can be rotated relative to the table to facilitate initial positioning and reading.
    7. The stepping motor and the worm are connected by the imported high-quality elastic coupling, the transmission is synchronized, the depolarization performance is good, the eccentric disturbance is greatly reduced and the noise is small.
    8. The electric angle table can be used in flat or vertical, and can be combined with other types of tables to form a multi-dimensional electric adjustment table.
    9. The electric angle table is designed in pairs, can be superimposed, can be used alone, and the two rotating radii are carefully designed. After superposition, a two-dimensional orthogonal rotation can be achieved.
    10. With limit function, initial zero function, reloading servo motor, adding rotary encoder, accepting product modification and tailoring
     Technical Parameters:
    Model: PT-GD303
    Angle range: ±45°
    Table size: 80×80mm
    Transmission ratio: 352:1
    Center of rotation height: 50 mm ± 0.2 mm
    Drive mechanism: worm gear and worm mechanism
    Rail form: Cross roller guide
    Stepper motor (1.8°): 42BYG
    Body material: Aluminum alloy
    Surface treatment: anodized black
    Center load: 10kg
    Weight: 1.5kg
    Resolution: ≈0.005°≈18′′ (no subdivision)
    ≈1′′ (20 subdivisions)
    Center of rotation accuracy: 0.03 mm
    Speed: 7°/sec
    Repeat positioning accuracy: ±3′′
    Absolute positioning accuracy: ±8′′
    Empty back: ±3′′
    Lost Steps: 3′′
  • Features:
    1. Standard stepping motor and RS232 interface, the company's self-developed motion controller can achieve automatic control
    2. The rotating shaft system is precision machined by multi-channel technology, with high precision, large load capacity and long service life.
    3. It adopts precision research and development of worm gear and worm structure, which is comfortable to move, can rotate in any forward and reverse direction and has very small backlash.
    4. Designed a sophisticated air-back structure to adjust the backlash caused by long-term use
    5. The special structural design ensures the extremely low yaw and tilt of the angle table, which makes the movement more stable.
    6. The scale circle on the periphery of the table is a laser marking ruler, and the scale can be rotated relative to the table to facilitate initial positioning and reading.
    7. The stepping motor and the worm are connected by the imported high-quality elastic coupling, the transmission is synchronized, the depolarization performance is good, the eccentric disturbance is greatly reduced and the noise is small.
    8. The electric angle table can be used in flat or vertical, and can be combined with other types of tables to form a multi-dimensional electric adjustment table.
    9. The electric angle table is designed in pairs, can be superimposed, can be used alone, and the two rotating radii are carefully designed. After superposition, a two-dimensional orthogonal rotation can be achieved.
    10. With limit function, initial zero function, reloading servo motor, adding rotary encoder, accepting product modification and tailoring
