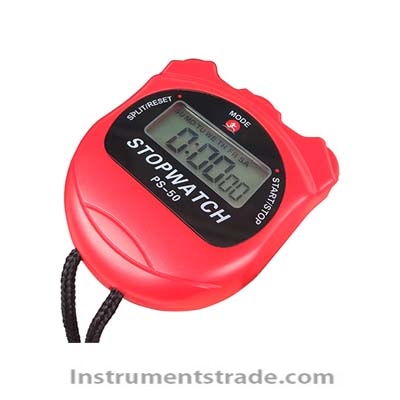

PS-50H Single-row Display Stopwatch Introduction: The PS-50 single-row display stopwatch is an electronic timing device centered around a high-precision quartz crystal oscillator. It is specifically designed for time interval measurement needs in various scenarios such as sports events, laboratory analysis, and industrial inspection. This product utilizes a single-row high-brightness digital display scheme, coupled with a simple operation logic and stable core performance, to achieve clear presentation and precise capture of time data. Its technical specifications strictly comply with JJF 2195—2025 "Stopwatch Calibration Specification" and relevant industry standards, providing users with a reliable timing solution. Technical Specifications: Timing range: 00:00:00.00 ~ 99:59:59.99 (up to 99 hours, 59 minutes, 59.99 seconds) Display resolution: 0.01 second (0~30 minutes); 1 second (30 minutes~99 hours) automatic switching Maximum allowable error: ±0.05 seconds within 10 seconds; ±0.07 seconds within 10 minutes; ±0.10 seconds within 1 hour; ±1.0 seconds within 24 hours Timing mode: positive timing, segmented timing (accumulated/split), countdown Segmented storage capacity: Supports the storage and retrieval of 10 sets of segmented timing data Display device: 30mm single-row LED digital tube, with red light highlighting display, and a visible distance of ≥10 meters Display content: hours (H), minutes (M), seconds (S), and hundredths of seconds (CS), with unit indicators displayed simultaneously Operation buttons: 3 function buttons (START/STOP, SPLIT/RESET, MODE) Key performance: travel distance of 1.5~2mm, press lifespan ≥50,000 times, pressing force of 5~8N, reset response time ≤10ms Backlight function: Automatic backlight (activated by pressing a button, turns off after 5 seconds of inactivity) Operating temperature: -10℃ ~ 40℃ (within this range, the error variation is ≤50% of the basic error) Operating humidity: ≤80%RH (at 25℃) Storage environment: -20℃ ~ 50℃, relative humidity ≤90%RH, no corrosive gases Anti-interference performance: Tolerant to mechanical vibration with a frequency range of 10~55Hz and an acceleration of 10m/s² Impact resistance: No functional damage after a free fall from a height of 1 meter onto a concrete floor Power specification: 1.5V AA battery, continuous working time ≥1200 hours (with backlight off) Power consumption: Operating current ≤ 5mA, standby current ≤ 10μA Overall dimensions: 105mm×60mm×25mm (length × width × thickness); Weight: ≤80g (including battery); Shell material: ABS engineering plastic, with anti-slip surface treatment; Protection level: IP54 (dustproof, splash-proof)
PS-50H Single-row Display Stopwatch Introduction: The PS-50 single-row display stopwatch is an electronic timing device centered around a high-precision quartz crystal oscillator. It is specifically designed for time interval measurement needs in various scenarios such as sports events, laboratory analysis, and industrial inspection. This product utilizes a single-row high-brightness digital display scheme, coupled with a simple operation logic and stable core performance, to achieve clear presentation and precise capture of time data. Its technical specifications strictly comply with JJF 2195—2025 "Stopwatch Calibration Specification" and relevant industry standards, providing users with a reliable timing solution.
