PeDX GOLD Portable XRF Analyzer

Product ID：FXyg031

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberPeDX GOLD

Brand NameSUZHOULANGSHENG

Payment TermsT/T, paypal

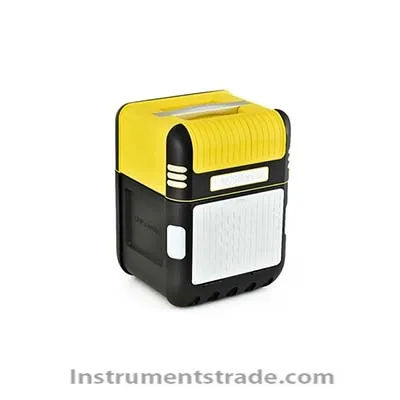

PeDX® GOLD Portable XRF Analyzer
Introduction
LANScientific PeDX® GOLD portable XRF Analyzer is designed to perform safe, high-quality energy dispersive X-ray fluorescence (EDXRF) analysis in the field. This high-performance instrument is equipped with a secure, enclosed X-Ray sample container. And its highly-flexible analysis software enables a variety of factory default and user-defined calibrations without sample preparation. The function can be compared to a mobile laboratory due to its simple acquisition and analysis.
LANScientific PeDX® GOLD portable analyzer has excellent performance for precious metals analyzing without sample damage. It can do fast and accurate determination for the gold, silver, platinum, rhodium, palladium and other precious metals and impurities. Compared with other precious metal detection methods, LANScientific PeDX® GOLD portable analyzer is a more convenient and economicall cost-effective tool for karat grade check, precious metals, and non-metallic content identification, which can be widely used in pawn shops, gold trading venues, jewelry shops, museums, archaeologist, coin collectors, waste recycling industry, and so on.

Feature
Provide a complete non-destructive testing method.
Automatic identification of the sample karat grade.
Get results quickly within a few seconds
Product quality management control in refining and melting process.

Technical Parameters

Instrument Dimensions	200（L）200（W）268（H）mm
Sample holder Dimensions	170（L）130（W）60（H）mm
Weight	4.1KG
Excitation source	50KV/200μA maximum pipe pressure pipe flow 4W
Detector	SDD or Si-PIN
Display system	Based on i.mx6 Quad quad core Cortex-A9 processor Dedicated analytical grade operating system, 32GB system memory
Power Supply System	Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours.
Resolution	Optimal<136eV
Data transmission	USB, Bluetooth
Operating environment temperature	-20℃~50℃
Operating environment humidity	10%~90% relative humidity, non-condensing
Display	5.7″ retractable color touch screen display
Test time	User-defined
Safety protection	Built-in radiation protection device (automatically cut off) Safety interlock, can open the instrument only in power on condition, (seal performance) Radiation indicator
Camera	Built-in 5 megapixel high-definition camera

Introduction
LANScientific PeDX® GOLD portable XRF Analyzer is designed to perform safe, high-quality energy dispersive X-ray fluorescence (EDXRF) analysis in the field. This high-performance instrument is equipped with a secure, enclosed X-Ray sample container. And its highly-flexible analysis software enables a variety of factory default and user-defined calibrations without sample preparation. The function can be compared to a mobile laboratory due to its simple acquisition and analysis.
LANScientific PeDX® GOLD portable analyzer has excellent performance for precious metals analyzing without sample damage. It can do fast and accurate determination for the gold, silver, platinum, rhodium, palladium and other precious metals and impurities. Compared with other precious metal detection methods, LANScientific PeDX® GOLD portable analyzer is a more convenient and economicall cost-effective tool for karat grade check, precious metals, and non-metallic content identification, which can be widely used in pawn shops, gold trading venues, jewelry shops, museums, archaeologist, coin collectors, waste recycling industry, and so on.
