Introduction:

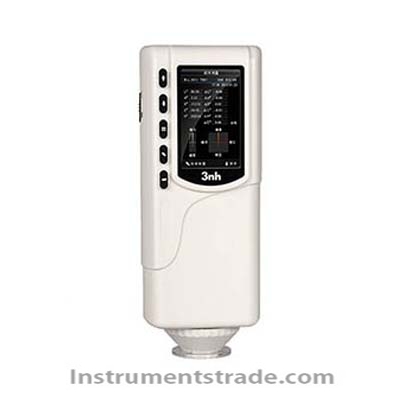

NR60CP is a new listing of high-precision smart hand-held computer colorimeter, the core technology excellent, compact, fully in accordance with CIE (International Commission on Illumination) standards and national standards developed for a variety of occasions, color detection and control, clothing Factories, chemical plants, printing plants, automobile factories, metal processing plants, mold factory, paint factory and other production color management of the best choice. At the same time, this instrument performance is stable, the original machine comes with color management software, increase the use of colorimeter and functionality. Features:
1.Φ8mm, Φ4mm dual caliber free to switch, measuring large plane concave sample is more simple;
2. Higher measurement stability and accuracy, ΔE * ab <0.03, dual caliber test data can pass the national metrology test certification;
3. A variety of color space, a variety of color index, the applicability of a broader;
4. Dual positioning: light positioning, cross positioning;
5. Configure high-capacity rechargeable lithium-ion battery;
6. Built-in whiteboard parameters, while configuring the physical whiteboard for easy operation;
7. New integration ball design, measurement more stable. Technical Parameters:
Product Type: NR60CP
Lighting method: 8 ° / d (diffuse reflectance 8 degree illumination); meet the standard CIE No.15, GB / T 3978.
Lighting source: LED light source
Sensor: silicon photodiode
Measuring aperture: Φ8 platform measuring aperture, φ4 sharp mouth measuring aperture
Color space: CIE LAB, XYZ, LCh, CIE RGB, CIE LUV
Color difference formula: ΔE * ab, ΔE (h), ΔE * uv, ΔE * 94, ΔE * cmc (2: 1), ΔE * cmc
Observer angle: CIE 10 ° standard observer
Observation light source: D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
Display: Chroma value, color value / graph, pass / fail result, color bias
Measurement time: 1.0s
Repeatability: ΔE * ab 0.05 or less (after calibration, the whiteboard was measured 30 times at intervals of 5s)
Difference between stations: ΔE * ab 0.2 or less
Size: 205X67X80mm
Weight: 500g
Battery Rechargeable Li-Ion Battery 3.7V 3200mAh
Lighting source life: 5 years more than 1.6 million measurements
Display: TFT true color 2.8inch @ (16: 9)
Interface: USB / RS-232
Storage data: 100 standard samples, 20000 samples
Operating temperature range: 0 ~ 40 ℃ (32 ~ 104 ° F)
Storage temperature range: -20 to 50 ° C (-4 to 122 ° F)
