NA-300C Nitrogen and Air Generator

Position: Home > > Lab general equipment > Gas production / processing equipment > Nitrogen air generator > NA-300C Nitrogen and Air Generator

NA-300C Nitrogen and Air Generator

Product ID：SYQFCdk004

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberNA-300C

Brand NameZHONGQINGSHIJI

Payment TermsTT，PAYPAL，Alibaba.com Pay

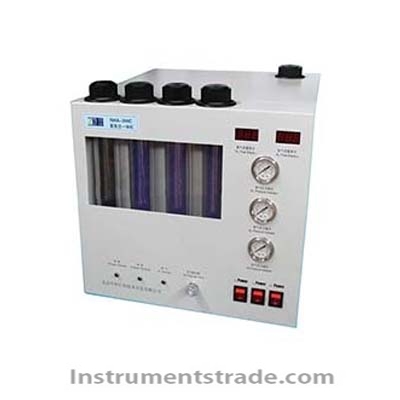

NA-300C Nitrogen and Air Generator

Product Introduction
The NA-300C Nitrogen and Air Generator is a laboratory gas supply system designed to provide nitrogen and air for gas chromatography (GC) instruments. It integrates gas generation, pressure control, filtration, and automatic drainage in one compact unit, offering a convenient alternative to conventional gas cylinders for compatible laboratory applications.
With nitrogen purity of up to 99.999%, automatic output-flow adjustment, stainless steel gas paths, and three-stage oil-free filtration, the NA-300C supports stable gas supply for routine analytical testing. Its digital LED display, built-in protection functions, and easy-maintenance design make it suitable for continuous laboratory operation.

Performance Features
• High-Purity Nitrogen: Nitrogen purity up to 99.999%, with oxygen content below 3 ppm and a dew point of −56°C, as specified.
• Combined Nitrogen and Air Supply: Provides nitrogen output up to 300 mL/min and air output up to 2000 mL/min.
• Automatic Flow Adjustment: Output flow adjusts according to gas consumption.
• LED Digital Display: Displays operating information for convenient monitoring.
• Stainless Steel Gas Paths: High-quality stainless steel gas circuits support corrosion resistance and stable gas delivery.
• Three-Stage Oil-Free Filtration: Helps remove contaminants from the output gas.
• Automatic Drainage: The stainless steel storage tank features automatic drainage.
• Built-In Protection: Includes overpressure, overheating, and liquid carryover protection.
• Stable Pressure and Low Noise: Designed for steady gas supply and low-noise operation.
• Easy Maintenance: Alkali is added initially; routine maintenance mainly requires replenishing distilled or deionized water as needed.
• Continuous Operation: Designed for 24-hour continuous use.
• Broad GC Compatibility: Suitable for connection to compatible gas chromatographs from different manufacturers, subject to their gas-flow, pressure, and purity requirements.

Working Principle
The NA-300C generates nitrogen and air through its internal gas-generation and purification systems. Generated gas passes through the internal gas paths and filtration stages before being delivered to the connected analytical instrument.
The nitrogen system uses a water-based electrolyte arrangement, with the required alkaline solution added initially and water replenished during routine maintenance. Internal pressure and protection controls help maintain safe operation, while the air-generation and purification system supplies filtered air. Flow output adjusts according to demand, and the automatic drainage system helps remove accumulated liquid from the storage tank.

Technical Specifications

Parameter	Specification
Model	NA-300C
Product Type	Nitrogen and Air Generator
Air Output Flow	0–2000 mL/min
Nitrogen Output Flow	0–300 mL/min
Nitrogen Pressure	0–0.4 MPa
Nitrogen Purity	99.999%
Oxygen Content	<3 ppm
Nitrogen Dew Point	−56°C
Power Supply	220 V ±10%, 50 Hz
Rated Power	300 W
Water Tank Capacity	1.7 L
Ambient Temperature	5–40°C
Water Quality Requirement	Deionized water or twice-distilled water
Dimensions (L × W × H)	500 × 320 × 380 mm
Weight	27 kg
Filtration	Three-stage, oil-free
Drainage	Automatic storage-tank drainage
Protection	Overpressure, overheating, and liquid carryover protection
Operating Mode	Designed for 24-hour continuous operation

Application Scenarios
The NA-300C nitrogen and air generator is suitable for:
•    Gas chromatography laboratories
•    Analytical testing and chemical analysis
•    Pharmaceutical quality control laboratories
•    Environmental testing laboratories
•    Food and beverage analysis
•    Industrial quality inspection
•    Research and development laboratories
•    Compatible GC systems requiring laboratory nitrogen and air supplies

Comparison with Conventional Gas Supply

Feature	NA-300C Nitrogen and Air Generator	Conventional Gas Cylinders
Gas Supply	On-site generation	Stored compressed gas
Nitrogen Purity	Up to 99.999%, as specified	Depends on cylinder grade
Output Flow	Automatically adjusts according to demand	Depends on regulator and cylinder conditions
Gas Pressure	0–0.4 MPa nitrogen output range	Depends on regulator configuration
Routine Supply	Water replenishment and maintenance	Cylinder replacement or refilling
Gas Path	Stainless steel	Depends on cylinder and connecting equipment
Filtration	Three-stage, oil-free	Depends on external filtration
Drainage	Automatic tank drainage	Not applicable to cylinder storage
Continuous Operation	Designed for 24-hour use	Depends on cylinder capacity and consumption
Installation	Compact laboratory unit	Requires cylinder handling and secure storage

FAQ
1. What is the NA-300C Nitrogen and Air Generator used for?
It supplies nitrogen and air for compatible laboratory applications, particularly gas chromatography.
2. What is the nitrogen purity of the NA-300C?
The specified nitrogen purity is 99.999%, with oxygen content below 3 ppm and a dew point of −56°C.
3. What are the output flow ranges?
The air output flow is 0–2000 mL/min, and the nitrogen output flow is 0–300 mL/min.
4. What is the nitrogen output pressure range?
The specified nitrogen pressure range is 0–0.4 MPa.
5. Does the generator support automatic flow adjustment?
Yes. Output flow adjusts according to gas consumption.
6. What type of water is required?
The specified water quality is deionized water or twice-distilled water.
7. What maintenance is required?
Routine maintenance mainly involves replenishing the required water and checking the instrument according to the manufacturer's maintenance instructions.
8. Does the NA-300C include filtration?
Yes. It features a three-stage oil-free filtration system.
9. Can the NA-300C operate continuously?
It is designed for 24-hour continuous operation, subject to proper installation, operating conditions, and routine maintenance.
10. Is the NA-300C compatible with all gas chromatographs?
It is designed to support GC instruments from different manufacturers. Compatibility should be confirmed against the specific instrument's required gas flow, pressure, and purity.
