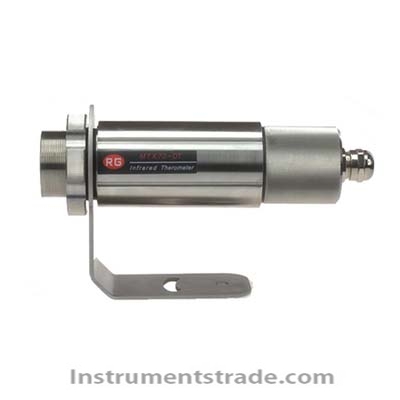

MTX200-D Infrared Thermometer
Product Overview
The MTX200 series online two-wire infrared thermometer integrates non-contact temperature measurement with microcomputer technology. It provides a standard two-wire 4–20 mA output for direct connection to secondary instruments. With a wide temperature measurement range of 1000°C to 3000°C, high accuracy, fast response, and easy installation, the MTX200-D is suitable for continuous high-temperature monitoring in industrial processes.

Key Features
• Rugged stainless-steel housing for reliable operation in demanding industrial environments
• High measurement accuracy and excellent repeatability
• Long-distance measurement capability with a 120:1 distance-to-spot ratio
• Fast response time of less than 200 ms
• Adjustable emissivity from 0.10 to 1.00 with a 0.01 step
• Standard two-wire 4–20 mA output for easy connection to secondary instruments
• Optional water-cooled jacket allows operation in ambient temperatures up to 150°C

Working Principle
The MTX200-D measures the infrared radiation emitted by a target without physical contact. Its optical system collects infrared radiation within the 2.0–2.5 μm wavelength band and converts the detected radiation into a temperature signal. The built-in microcomputer processes and compensates the measurement signal according to the configured emissivity, then outputs the temperature through the standard two-wire 4–20 mA interface.

Technical Specifications

Parameter	Specification
Temperature Measurement Range	1000°C to 3000°C
Accuracy	±1% of reading
Repeatability	±0.5% of reading
Resolution	1°C
Response Time	<200 ms
Emissivity	0.10–1.00 adjustable, 0.01 step
Spectral Range	2.0–2.5 μm
Distance-to-Spot Ratio	120:1
Power Supply	24 VDC ±10%, 100 mA
Output Signal	Two-wire 4–20 mA
Operating Temperature	-18°C to 50°C; up to 150°C with water cooling
Storage Temperature	-20°C to 70°C
Relative Humidity	10%–90% RH, non-condensing
Housing Material	Stainless steel
Dimensions	155 mm × Ø46 mm
Weight	500 g
Cable Length	5 m standard; custom lengths available

Applications
The MTX200-D online infrared thermometer is designed for continuous, non-contact temperature monitoring of high-temperature targets, including:
• Metallurgical and steel processing
• Metal heating and heat treatment
• Furnace and kiln temperature monitoring
• Glass and ceramic manufacturing
• Forging and casting processes
• High-temperature industrial production lines
• Other applications requiring continuous measurement of temperatures up to 3000°C

Application Scenarios
• High-temperature furnaces: Continuous temperature monitoring without direct contact with the heated material.
• Metal processing: Suitable for monitoring the temperature of molten, heated, or processed metals.
• Automated production lines: The 4–20 mA output can be integrated with PLCs, DCS systems, recorders, and other secondary instruments.
• Harsh environments: The stainless-steel housing and optional water-cooled jacket provide additional protection for high-temperature installation conditions.

Why Choose MTX200-D?
Compared with conventional contact thermometers, the MTX200-D provides non-contact measurement, eliminating the need for probes to directly contact high-temperature targets. Its 120:1 distance-to-spot ratio enables temperature measurement from a relatively long distance, while the fast response time and standard 4–20 mA output make it suitable for industrial process monitoring and automation.

FAQ
What is the measurement range of the MTX200-D?
The MTX200-D has a temperature measurement range of 1000°C to 3000°C.
What output signal does the infrared thermometer provide?
It provides a standard two-wire 4–20 mA output for connection to secondary instruments and industrial control systems.
Can the emissivity be adjusted?
Yes. The emissivity can be adjusted from 0.10 to 1.00 in increments of 0.01.
Can the MTX200-D be installed in high-temperature environments?
Yes. The standard operating temperature is -18°C to 50°C. With the optional water-cooled jacket, the allowable working environment temperature can reach 150°C.
What is the distance-to-spot ratio?
The distance-to-spot ratio is 120:1, allowing measurement of high-temperature targets from a relatively long distance.
