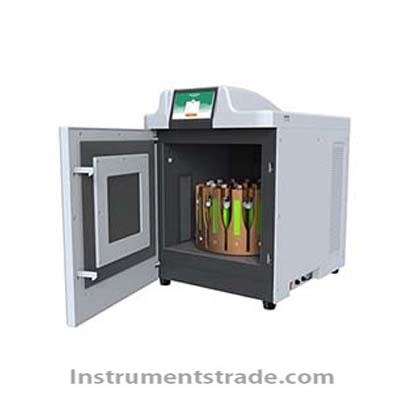

MID06 Fully Automatic Intelligent Microwave Digestion System

Position: Home > > Lab general equipment > Separation / extraction equipment > Microwave extraction equipment > MID06 Fully Automatic Intelligent Microwave Digestion System

MID06 Fully Automatic Intelligent Microwave Digestion System

Product ID：SYFLCQwb021

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberMID06

Brand NameSHZHUOGUANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

MID06 Fully Automatic Intelligent Microwave Digestion System
Product Overview
The MID06 Fully Automatic Intelligent Microwave Digestion System is designed for efficient and controlled sample digestion prior to elemental analysis by AA, ICP and ICP-MS. Its closed-vessel design helps prevent element loss and sample leakage caused by venting, supporting reliable analytical results.
The system combines high-power microwave heating, real-time temperature and pressure monitoring, intelligent control, and multiple safety protection mechanisms. A 7-inch color touchscreen and ergonomic design provide convenient operation for modern analytical laboratories.

Key Features
• Safe closed-vessel patented design helps minimize element loss and sample leakage during digestion
• Professional electromagnetic shielding design for enhanced microwave leakage protection
• 7-inch color touchscreen with graphical interface for intuitive operation
• 2450 MHz dual-magnetron microwave source with 2200 W continuous variable-frequency output
• Real-time monitoring and display of temperature and pressure for reaction vessels
• 65 L 316L stainless steel cavity with multilayer corrosion-resistant PFA coating
• Electronic and mechanical dual safety protection with automatic pressure relief and explosion-buffering design

Working Principle
The MID06 uses 2450 MHz microwave energy to rapidly heat samples and digestion reagents inside sealed reaction vessels. The closed-vessel environment enables efficient digestion under controlled temperature and pressure while reducing the loss of volatile elements.
During the digestion process, temperature and pressure are continuously monitored. The microwave output can be automatically adjusted or stopped when abnormal pressure conditions are detected. A dedicated pressure-relief system provides additional passive protection for the reaction vessels.

Technical Specifications

Parameter	Specification
Model	MID06
Power Supply	220–240 VAC, 50/60 Hz, 15 A
Microwave Frequency	2450 MHz
Microwave Source	Dual magnetron, high-energy microwave field emission
Total Installed Power	3200 W
Microwave Output Power	2200 W, continuous non-pulsed automatic variable-frequency control
Display	7-inch color touchscreen LCD
Software System	ARM processor with ZGI operating system
Microwave Cavity	65 L, 316L stainless steel, multilayer corrosion-resistant PFA coating
Temperature Control	Real-time monitoring, control and display of temperature and curves for all reaction vessels
Safety Door	AUT-relief self-ejecting explosion-buffering structure with electronic and mechanical dual protection
Pressure Control System	G-pressure real-time monitoring; automatic microwave adjustment/shutdown and alarm under overpressure
Pressure Control Range	0–1600 psig
Pressure Measurement	Piezoelectric pressure sensor
Pressure Measurement Range	0–16 MPa (2500 psi)
Pressure Display Accuracy	±0.1 MPa
Temperature Sensor	High-precision fiber-optic temperature sensor
Temperature Measurement Range	0–310°C
Temperature Control Accuracy	±0.1°C
Temperature Display Accuracy	±1°C
Passive Pressure Protection	Top-mounted safety pressure-relief system with quantitative directional automatic pressure release
External Interfaces	USB, RS-232, optional
Reaction Vessel Outer Protection	Aerospace composite-fiber explosion-resistant outer vessel
Cavity Exhaust System	High-power corrosion-resistant axial-flow fan with high-efficiency turbulent air cooling
Cooling Performance	200°C to 60°C in approximately 15 minutes
Operating Temperature	0–40°C
Operating Humidity	15–80% RH
Dimensions (W × D × H)	580 × 680 × 720 mm
Net Weight	65 kg

Applications
• Sample digestion for atomic absorption spectroscopy (AA)
• Sample preparation for ICP and ICP-MS elemental analysis
• Environmental sample analysis
• Geological and mineral sample digestion
• Industrial and chemical sample preparation
• Laboratory research requiring controlled acid digestion

Applicable Standards
The MID06 is designed for closed-vessel microwave-assisted sample digestion. Applicable digestion procedures and analytical standards should be selected according to the sample type, target elements, digestion reagents, and subsequent AA, ICP or ICP-MS analytical method.

Comparison

Feature	MID06 Microwave Digestion System	Conventional Hotplate Digestion	Open-Vessel Microwave Digestion
Digestion Method	Closed-vessel microwave heating	Conventional thermal heating	Microwave heating
Vessel Environment	Sealed	Generally open	Open or partially covered
Heating Speed	Fast	Relatively slow	Fast
Element Loss	Reduced by closed-vessel design	Greater potential for volatile-element loss	Higher potential than closed-vessel digestion
Temperature Monitoring	Real-time	Usually monitored at heating platform	Typically monitored during microwave heating
Pressure Monitoring	Real-time	Generally unavailable	Limited depending on system
Safety Protection	Electronic + mechanical protection and pressure relief	Equipment-dependent	Equipment-dependent
Typical Application	Controlled sample preparation for AA, ICP and ICP-MS	Routine acid digestion	Rapid microwave-assisted digestion

FAQ
Q1: What is the MID06 used for?
The MID06 is used for microwave-assisted sample digestion before elemental analysis by AA, ICP and ICP-MS.
Q2: What is the microwave output power?
The microwave output power is 2200 W, with continuous non-pulsed automatic variable-frequency control.
Q3: Does the MID06 monitor both temperature and pressure?
Yes. The system provides real-time monitoring and control of the temperature and pressure of the reaction vessels.
Q4: What is the temperature range?
The fiber-optic temperature measurement system covers 0–310°C, with a control accuracy of ±0.1°C.
Q5: What pressure range can the system control?
The pressure measurement system covers 0–16 MPa (2500 psi), while the G-pressure control system specifies a monitoring range of 0–1600 psig.
Q6: What safety systems are included?
The MID06 includes electronic and mechanical dual protection, an AUT-relief explosion-buffering door, real-time pressure monitoring, automatic microwave shutdown, alarms, and a top-mounted safety pressure-relief system.
Q7: Why does the MID06 use a closed-vessel design?
The closed design helps reduce sample leakage and the loss of volatile elements during digestion, supporting more reliable subsequent elemental analysis.
Q8: Is the microwave cavity resistant to strong acids?
Yes. The 316L stainless steel cavity is protected by multilayer PFA coating to improve resistance to long-term exposure to corrosive digestion reagents.
