Sales M512A-40m laser rangefinder module，Manufacturer

Position: Home > > Measurement instrument > Length measuring instrument > laser range finder > M512A-40m laser rangefinder module

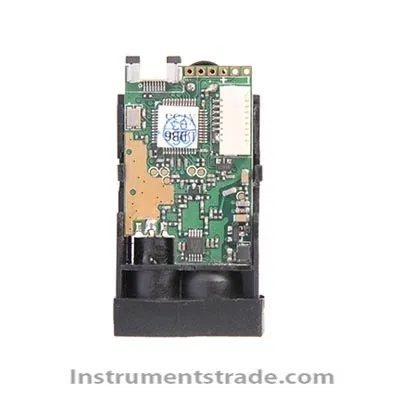

M512A-40m laser rangefinder module

Product ID：CLCDcjy045

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberM512A-40m

Brand NameCDJINGRUITE

Payment TermsTT，PAYPAL，Alibaba.com Pay

M512A-40m laser rangefinder module
Introduction:
The laser rangefinder module is mainly designed for laser distance measurement devices (laser rangefinders). As the core component of laser rangefinder, our module not only responds quickly and has high accuracy, but also supports long-distance measurement. The module has different measurement distances to meet the different needs of customers: 20 meters, 30 meters, 40 meters, 60 meters, 80 meters, 100 meters, 120 meters, and 150 meters.
The company has a strong R&D team that accepts OEM/ODM design and production, and can customize product functions according to customer needs.
characteristic:
1. Height/distance/area/volume/Pythagorean measurement
2. Single measurement/continuous measurement
3. Voice function
4. Bluetooth function
5. USB charging
6. Angle measurement
7. Buzzer
8. Front and rear benchmarks
9. Customized working temperature -10 ℃~50 ℃
Technical parameters:

Laser Meter Sensor Model	M512A-40m(bd190116cjy01)
Measuring Accuracy	±1mm~ ±3mm
Measuring Unit	mm/in/ft
Measuring Range	0.03-40m
Measuring Time	0.3-4 second
Laser Class	gradeⅡ
Laser Type	620nm-690nm,<1mw
Size	45x25x12mm
Weight	10g
Working Voltage	DC2.0~3.3V
Operating Temperature	0 ℃ ～40 ℃
Storage Temperature	-25 ℃ ～60 ℃

Introduction:
The laser rangefinder module is mainly designed for laser distance measurement devices (laser rangefinders). As the core component of laser rangefinder, our module not only responds quickly and has high accuracy, but also supports long-distance measurement. The module has different measurement distances to meet the different needs of customers: 20 meters, 30 meters, 40 meters, 60 meters, 80 meters, 100 meters, 120 meters, and 150 meters.
The company has a strong R&D team that accepts OEM/ODM design and production, and can customize product functions according to customer needs.
