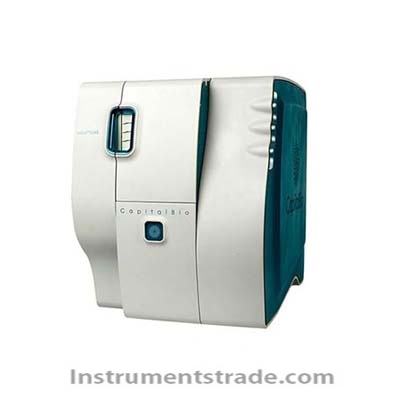

LuxScan HT2 Microarray Chip Scanner 4for Biochip fluorescence detection

Product ID：SHXPsmdyjc002

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberLuxScan HT24

Brand NameBOAOJINGDIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

Introduction
The LuxScan HT24 is our new generation fully automated microarray scanner providing higher throughput (1 – 24 slides) as well as greatly improved spot detection performance. With a new compact optical system and high-speed signal processing. The LuxScan HT24 is highly sensitive and accurate, with a linear signal detection response over a wide dynamic range. The LuxScan HT24 also integrates a barcode reader with optional uses. The chip cartridge is newly designed to provide much more reliable mechanical protection for the chip surface.
The LuxScan HT24 also comes with powerful fully integrated imaging options and applications. The integrated SpotPro application software also has a simpler configuration, and can provide an interface for user-based development. Users can design their own tools for image analysis and data processing, and embed it in standard formats like .dll, .com into the application software.
Features
1.Proprietary loading design which reduces the frequency of slide jamming
2.24-slide batch scanning
3.Sequential scanning, without cross-talk between the channels
4.Auto channel balancing reduces the trouble and bias of manual intervention
5.In built universal barcode reader automatically acquires chip information or assay specifications
Specifications

Features	Parameters
Chip Formats	(75.5±0.5) × (25.5±0.5) × (1.0±0.1)mm
Maximum Scan Area	72mm × 22mm
Excitation Wavelength	532nm and 635nm and/or 473nm
Emission Wavelength	570±10nm,675±10nm,530±10nm(optional);up to 6 types
Applicable Fluorescence Dyes	Cy3, Alexa 555, Cy5, Alexa 647, FITC, etc.
Scan Resolution	User selectable: 5, 10, 20, 40μm
Sensitivity	0.1 chromophores/μm2 (cpsm) (Cy3)
Scan Speed	25s per cm2 at 10 micron pixel resolution
Dynamic Range	4 orders of magnitude (16 bit)
Repeatability	≥95%, CV≤10%
Uniformity	≥90%
Laser Power Settings	1 ~ 100% continuously adjustable
PMT Adjustment	450 ~ 950 continuously adjustable
Focus Distance	4.5 ± 0.5mm
Image File Format	TIFF, BMP, JPG, PNG, RAW
Voltage	AC 85V ~ 264V/47V~ 63V
Power	75 Watts
Size (W × D × H)	380mm × 580mm × 500mm
Weight	40kg (88lb)
Operating System	PC with MS Windows? 2000, XP, Vista, 7 (32 bit)
Connection	USB 2.0
Autoloader	24-slide carousel
Barcode Reader	In-built

The LuxScan HT24 is our new generation fully automated microarray scanner providing higher throughput (1 – 24 slides) as well as greatly improved spot detection performance. With a new compact optical system and high-speed signal processing. The LuxScan HT24 is highly sensitive and accurate, with a linear signal detection response over a wide dynamic range. The LuxScan HT24 also integrates a barcode reader with optional uses. The chip cartridge is newly designed to provide much more reliable mechanical protection for the chip surface.
