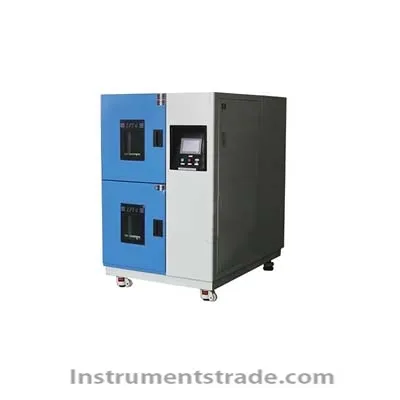

LRHS - 234 - LV temperature shock test chamber

Product ID:WHlr001

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberLRHS - 234 - LV
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    Temperature shock test chamber is material such as metal, plastic, rubber, electronics industry the necessary test equipment, used for testing or composite material structure, in an instant by the extremely high temperature and low temperature under continuous environment can endure, can in the shortest time check sample for heat bilges cold shrink caused by chemical or physical damage. In order to meet the requirements of test chamber and cooling rate and the lowest temperature and the test chamber adopts a set of imported German composed of binary semi-closed compressor cascade type water-cooling refrigerating system. Using vertical body, cold and heat two cases, adopt the method of basket conversion try in the experimental area, the purpose of hot and cold impact test; This structure reduces the maximum heat load of cold and hot shock, shortens the time of temperature response is also one of the most reliable, most energy-saving hot and cold shock.
    Technical indicators:
    Temperature range: high temperature box: RT ~ 150 ℃ (light)
    Low temperature box: RT ~ ~ 20 ℃ (light)
    Temperature fluctuation degree: + / - 1 ℃
    Temperature error: + / - 3 ℃
    Heating rate: from room temperature to 150 ℃ for 25 min or less (on average)
    Cooling rate: from room temperature ~ ~ 20 ℃, 15 min or less (on average)
    The low temperature limit temperature: - 25 ℃ or less
    Shock temperature: 150 ℃ ~ 20 ℃
    Load: 30 kg or less




  • Brief introduction:
    Temperature shock test chamber is material such as metal, plastic, rubber, electronics industry the necessary test equipment, used for testing or composite material structure, in an instant by the extremely high temperature and low temperature under continuous environment can endure, can in the shortest time check sample for heat bilges cold shrink caused by chemical or physical damage.
