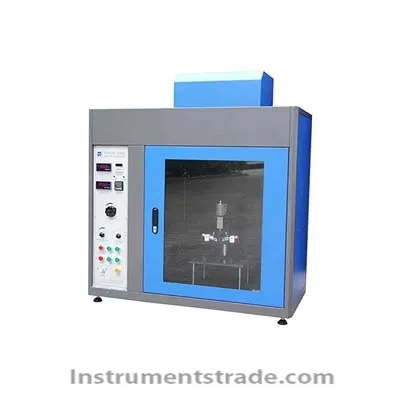

Introduction: Leakage tracking tester is based on IEC60112: 2003, GBT4207-2003, UL746A, ASTM D 3638-92, DIN53480 and other standards designed to manufacture. Technical Parameters: Electrode material: copper + platinum (platinum 12mm long); The force of each electrode on the sample: 1.0 ± 0.05N; Droplet time: 30s ± 0.1s; Applied voltage: 100 ~ 600V (48 ~ 60Hz) adjustable, short circuit current at 1.0 ± 0.1A voltage drop does not exceed 10%; Dripping device: test does not require adjustment; Drop height: 30 ~ 40mm; Drop size: 44 ~ 55 drops / 1cm³ Control of liquid droplets using solenoid valve, precise control of the size of the droplet, 20 drops up to a maximum accuracy of 0.02g; Judge the loop: short-circuit current is greater than 0.5A for 2 seconds to maintain the relay action, cut off the current, indicating that the test failed; Internal volume: 0.5m3 (optional 0.75m3 or 1m3); External dimensions: width 1170mm * depth 630mm * height 1330mm; Box material: iron spraying; Vent: Ø100mm;
