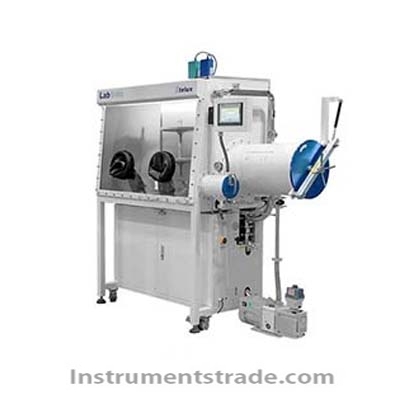

Technical Parameters: Box Description: Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Dimensions: 1200mm (L) x 750mm (W) x 900mm (H) Volume: 0.8 m3 Front window: Panel: 8 mm thick safety tempered glass or 10 mm thick polycarbonate (optional) Size: 1123mm(L) x 839mm(H) Glove mouth: hard aluminum alloy or polyacetal material (optional) Caliber 220 mm, O-ring seal Gloves: Material: butyl rubber; thickness: 0.4 mm or 0.8 mm (optional) Filter: Outlet and inlet filter, filter <0.3μm Lighting: LED lighting is located at the top of the front window Leakage rate: Oxygen method and pressure change method in the case of leak detection according to ISO 10648-2:1994 / EJ/T 1096-1999 "Sealing chambers - Part 2: Sealing classification and related inspection methods" The test was carried out and the final acceptance test was carried out according to the standard of first-order sealing < 0.05 vol%/h. GP20 gas purification system Description: Automatic removal of H2O and O2; single purification column system, automatic regeneration (optional GP200 double purification column); closed gas circulation line Operating voltage: AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional) Working gas: Working gas: N2, Ar, He (purity ≥99.999%) Regeneration gas: H2 accounts for 5%-10%, and the rest is working gas (purity ≥99.999%) Vacuum pump: Specification: rotary vane vacuum pump with oil mist filter, with gas ballast control; flow rate: 12 m3/h (7 cfm), double substrate, vacuum < 2 x 10-3 mbar or dry pump (available select) Circulating unit: oil-free high-speed fan; air volume: 80 m3/h Valve: KF40 high vacuum valve Leakage rate: Oxygen method and pressure change method in the case of leak detection according to ISO 10648-2:1994 / EJ/T 1096-1999 "Sealing chambers - Part 2: Sealing classification and related inspection methods" The test was carried out and the final acceptance test was carried out in accordance with the standard of the first-order sealing < 0.05 vol%/h. Control cabinet size: 600mm (L) x 800mm (D) x 870mm (H) Transition cabin Large transition chamber: Material: stainless steel type 304 (1.4301), thickness 3 mm Size: φ360mmx600mm (L) or φ390mmx600mm (L) (optional) Vacuum: < 1 x 10-2 mbar Small transition chamber: Material: stainless steel type 304 (1.4301), thickness 2 mm; Dimensions: φ150mm x 330mm (L); vacuum: < 1 x 10-2 mbar Cleaning system Description: Set the appropriate time and pressure, the system can automatically replace the gas. Analyzer Oxygen analyzer: Dimensions: 205 mm (L) x 80 mm (W) x 60 mm (H); Measuring range: 0-1000 ppm; Other oxygen analyzers: GE oxy.IQTM Oxygen Transmitter Moisture Analyzer: Dimensions: 205 mm (L) x 80 mm (W) x 60 mm (H); Measuring range: 0-500 ppm; Other water analyzers: GE VeriDriTM Dew-Point Transmitter Solvent purification system Description: Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm; internal dimensions: 220mm (Φ) x 450mm (H); high quality activated carbon Optional equipment Refrigerator: Independent control system, integrated in the side panel of the cabinet, temperature -35 ° C, volume 18L or 32L optional Main body 304 stainless steel plate, 5 layers of variable compartment; R404 environmentally friendly refrigerant, imported Heating cabin: large transitional heating system, temperature 200 ° C, temperature control ± 1 ° C other instructions: Product Certification: ISO9001, CE, UL Warranty period: One year warranty period, lifetime maintenance Application Notes: Refer to the instructions for dangers, warnings, cautions, etc. for details.
Technical Parameters: Box Description: Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Dimensions: 1200mm (L) x 750mm (W) x 900mm (H) Volume: 0.8 m3 Front window: Panel: 8 mm thick safety tempered glass or 10 mm thick polycarbonate (optional) Size: 1123mm(L) x 839mm(H) Glove mouth: hard aluminum alloy or polyacetal material (optional) Caliber 220 mm, O-ring seal Gloves: Material: butyl rubber; thickness: 0.4 mm or 0.8 mm (optional) Filter: Outlet and inlet filter, filter <0.3μm Lighting: LED lighting is located at the top of the front window Leakage rate: Oxygen method and pressure change method in the case of leak detection according to ISO 10648-2:1994 / EJ/T 1096-1999 "Sealing chambers - Part 2: Sealing classification and related inspection methods" The test was carried out and the final acceptance test was carried out according to the standard of first-order sealing < 0.05 vol%/h.
