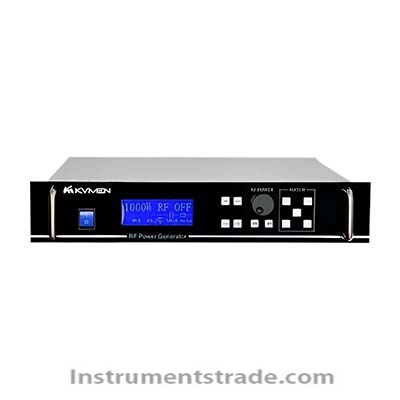

KVMEN® AG-1305 All-Solid-State RF Power Supply

Product Introduction
The KVMEN® AG-1305 All-Solid-State RF Power Supply is a high-reliability solid-state RF power source designed to provide stable and efficient RF power output for industrial and research applications.
The AG series uses stable and reliable RF power amplifier and DC module technologies, with high-quality components and an optimized component count to support long service life and high equipment reliability. The series covers multiple operating frequencies and power configurations, while the AG-1305 provides 13.56 MHz RF output with adjustable power from 5 to 500 W.
A multifunction front panel with an LCD display and intuitive operation menu allows operators to configure and monitor the RF power supply directly. The AG-1305 also provides CEX phase synchronization, reflected power protection, analog interfaces and RS485/RS232 communication for flexible system integration.

Performance Features
• All-solid-state design: Uses stable RF amplifier and DC module architecture for reliable RF power generation.
• Stable RF output: Power stability reaches ±0.1%.
• 13.56 MHz operation: Standard industrial RF frequency with optional series configurations at other frequencies.
• 5–500 W adjustable output: Flexible RF power adjustment for different process requirements.
• High efficiency: Overall efficiency of ≥75% helps reduce heat generation.
•CEX phase synchronization: Supports phase-synchronized operating applications.
• Reflected power protection: Comprehensive reflected-power protection helps protect the RF power supply during load mismatch conditions.
• Multifunction front panel: LCD display and comprehensive operating menu simplify setup and monitoring.
• Multiple communication interfaces: DB15/DB25 analog interfaces plus RS485/RS232 communication.
• Forced-air cooling: Efficient cooling supports continuous equipment operation.
• Long-term operating convenience: Optimized hardware and intuitive controls help reduce operation and training costs.
• Flexible configuration: The AG series provides multiple frequency, power and interface configurations.

Working Principle
The AG-1305 converts single-phase AC input power into regulated DC power and then uses its solid-state RF power amplifier to generate a stable high-frequency RF signal.
The RF output is amplified to the required power level and delivered through the N-type RF output connector. The control system continuously manages output power and operating conditions to maintain stable RF output.
The built-in protection system monitors reflected power and other operating conditions. When load mismatch or excessive reflected power occurs, the protection function helps prevent damage to the RF power supply.
The AG-1305 can also communicate with external equipment through its analog interface or RS485/RS232 communication ports. Its CEX mode provides phase synchronization for applications requiring coordinated RF operation.

Technical Specifications

Parameter	Specification
Model	AG-1305
Product Type	All-Solid-State RF Power Supply
RF Frequency	13.56 MHz ±0.005%
Other Series Frequencies	27.12 MHz / 40.68 MHz
Output Power	5–500 W
Maximum Reflected Power	100 W
Power Stability	±0.1%
RF Output Connector	N-type
Overall Efficiency	≥75%
Harmonic Components	≤−50 dBc
Input Power	Single-phase AC
Input Voltage	187–253 V
Input Frequency	50/60 Hz
Cooling	Forced-air cooling
Operating Temperature	−10 to 40°C
Communication Interfaces	DB15/DB25 analog interface, RS485/RS232
Weight	19.5 kg
Dimensions	88(H) × 483(W) × 500(D) mm
Custom Dimensions	Available

Application Scenarios
The AG-1305 RF power supply can be integrated into RF and plasma systems for applications such as:
• Plasma generation and processing
• Plasma cleaning and surface treatment
• Plasma etching systems
• Thin-film deposition equipment
• Semiconductor and microelectronics processing
• RF excitation systems
• Laboratory plasma research
• Industrial RF processing equipment
• Research and development systems requiring stable 13.56 MHz RF power

AG-1305 vs. Conventional RF Power Supplies

Feature	KVMEN AG-1305	Conventional RF Power Supply
Power Architecture	All-solid-state	Depends on design
Frequency	13.56 MHz ±0.005%	Depends on model
Output Power	5–500 W	Depends on model
Power Stability	±0.1%	Depends on model
Efficiency	≥75%	Depends on design
Reflected Power Protection	Yes	Depends on model
CEX Phase Synchronization	Yes	Not always available
Front Panel	LCD + multifunction menu	Depends on model
Communication	RS485/RS232 + analog	Depends on model
Cooling	Forced air	Depends on model
Harmonic Level	≤−50 dBc	Depends on model

FAQ
1. What is the AG-1305 RF power supply?
The AG-1305 is a KVMEN® all-solid-state RF power supply designed to provide stable RF power for plasma, semiconductor, surface treatment and other RF processing systems.
2. What is the operating frequency of the AG-1305?
The standard AG-1305 operates at 13.56 MHz ±0.005%. The AG series also includes configurations for 27.12 MHz and 40.68 MHz.
3. What is the output power range?
The AG-1305 provides an adjustable RF output power range of 5–500 W.
4. How stable is the RF output power?
The specified power stability is ±0.1%.
5. Does the AG-1305 provide reflected power protection?
Yes. The RF power supply incorporates reflected power protection, with a specified maximum reflected power of 100 W.
6. What is CEX mode?
CEX is a phase synchronization operating mode designed for applications where coordinated RF phase operation is required.
7. What communication interfaces are available?
The AG-1305 provides DB15/DB25 analog interfaces and RS485/RS232 communication interfaces.
8. How is the RF power supply cooled?
The AG-1305 uses forced-air cooling.
9. Can the AG-1305 be customized?
The supplied specifications indicate that the equipment dimensions can be customized. Other AG series configurations are also available with different frequencies, power levels and interface combinations.
