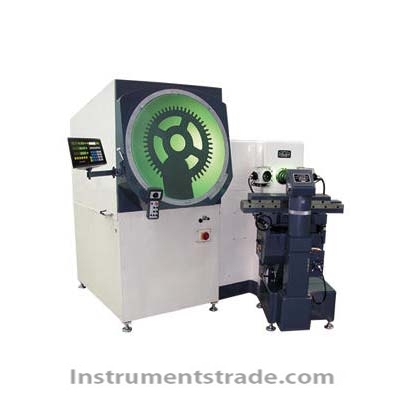

JT5ABE φ800 projector

Product ID：CLCDtyy032

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberJT5ABE φ800

Brand NameGYXINTIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

JT5A/B/E φ800 projector
Introduction:
A projector is a metrological instrument that utilizes optical principles to magnify and image the workpiece placed on a workbench through an objective lens with accurate magnification onto a projection screen. Inspectors conduct various measurements based on the magnified image of the workpiece on the projection screen. The projector is a precision instrument integrating optics, mechanics, electronics, and computing, with a wide range of applications.
Features:
1. Horizontal optical path design facilitates the measurement of parts being processed online.
2. The workbench has a large measurement range, strong load-bearing capacity, and a wide measurement scope.
3. The workbench can tilt ±15°, facilitating the measurement of parts with helix angles. 4.
Different transmission illumination levels for high and low settings adapt to the measurement requirements of various workpieces.
5. The large projection screen meets the measurement requirements of large-sized workpieces.
6. JT5A adopts advanced grating sensing technology, with digital display of measurement data and motor control of workbench movement.
7. JT5B is equipped with a computer and two-coordinate measurement software, facilitating convenient and quick measurement, with motor control of workbench movement.
8. JT5E is a fully automatic projector, with servo motor for fully automatic movement control and rich software functions, including an automatic edge-finding system.
Technical parameters:
1. Projection screen:
Projection screen size: φ800mm
Projection screen rotation range: 0°~360°
Projection screen rotation scale value: 1°
Vernier scale value: 1′
2. Workbench

Table size (mm)	630×202
Measuring range (mm)	300×200
Focusing range (mm)	0～80
Resolution of glass grating ruler (mm)	0.0005
Clear opening size of flat workbench (mm)	300×200
Clear opening size of circular workbench (mm)	φ90
Workbench swing angle	±15°
Instrument accuracy	3+L/75μm (where L represents the measured length, with the unit being mm)
Workbench load capacity (kg)	50

3. Objective lens

Objective magnification	10×	20×	50×	100×
Objective lens object-side field of view (mm)	φ80	φ40	φ16	φ8
Working distance of objective lens (mm)	206	123	85	78

Magnification error: ≤0.06%
5. Thimble frame
Maximum clamping diameter: φ200mm
Maximum clamping length: 300mm
6. Lighting Source:
Transmitted Lighting: 24V/250W Halogen Lamp
Reflected Lighting: 16V/150W Incandescent Lamp
Magnification Error: ≤0.06%
7. Rated Voltage:
AC 220V, 50Hz
8. Environmental Requirements:
Room Temperature 20℃±3℃, Relative Humidity 40%-70%RH
9. Overall Dimensions of the Instrument (mm):
Length 2130 × Width 1800 × Height 1950 10. Instrument Mass: 1900kg
