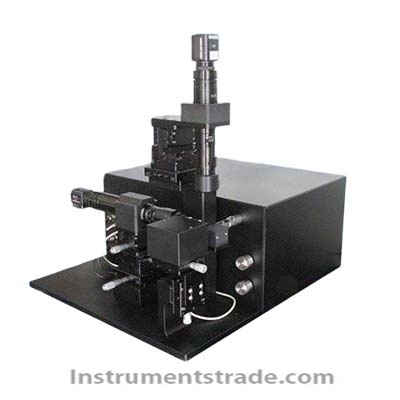

Brief introduction: On conventional fiber strength measurement has a wide range of experimental instruments, however, to a material, such as bamboo fibre fineness is small, big, short in length, and brittle fracture, the material in the experiment of preparing sample is a big problem, but also need to experiment with the special material corresponding tensile device. The stretching device is developed and researched in this context, the use of special precision clamping chuck to sample, to ensure that the fiber straight, don't skid in the stretching process. The instrument by the level of the surface morphology of the fiber optical measurement system for observation and fiber drawing process, and through the vertical optical system will bamboo fiber sample correct positioning of the clamp head. Features: 1. Using the special clamp for short fibers (such as bamboo short fiber), the measurement of tensile properties. 2. Fiber tensile speed, distance and the maximum dynamic range is adjustable. 3. Through the two directions of digital optical system can be carried out on the sample local magnification and panoramic magnification. Technical parameters 1. The level of optical system: 12 pixels/micron 2. The vertical optical system: 0.7 ~ 4.5 X 3. The scope of the force: 4.903 N 980.7 mN, 4. Accuracy: one over ten thousand of the range. 5. Guide: precision linear ball guide rail, 25 mm 6. The screw: pitch of 0.25 mm 7. Precision drive motor/frequency division control card: minimum each step is 0.1125 degree, single step the highest accuracy of computational physics 0.068 microns 8. Special short fiber tensile fixtures, fiber distance: 0.8 mm 8 two groups of three precision regulating system, a set of two dimensional adjustment system. Can carry on the monitor to the horizontal and vertical direction.
Brief introduction: On conventional fiber strength measurement has a wide range of experimental instruments, however, to a material, such as bamboo fibre fineness is small, big, short in length, and brittle fracture, the material in the experiment of preparing sample is a big problem, but also need to experiment with the special material corresponding tensile device. The stretching device is developed and researched in this context, the use of special precision clamping chuck to sample, to ensure that the fiber straight, don't skid in the stretching process. The instrument by the level of the surface morphology of the fiber optical measurement system for observation and fiber drawing process, and through the vertical optical system will bamboo fiber sample correct positioning of the clamp head.
