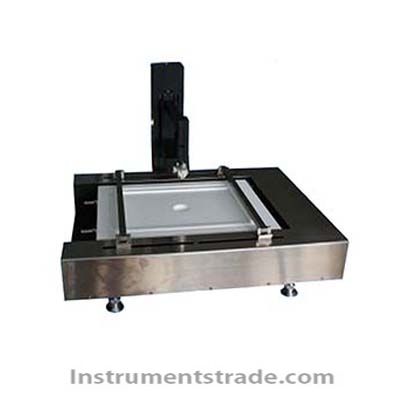

JML04CS LS multi-functional film machine

Product ID:WBlb005

US$0.00 ~ US$1.00 PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberJML04CS
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    LS from LB film technology, membrane technology and LB films are similar in technology. LB film can be defined as a layer or multilayer film from liquid surface accumulation on a solid substrate, through molecular density at a constant flow of single molecule layer dipping into the matrix. In other words, the film is formed by one or more Langmuir membrane accumulation to a solid surface, from the gas phase into the liquid phase, through the vertical dip on the solid substrate (or vice versa). Get a wide range of the arrangement of the membrane, the from single layer thin to hundreds of layers of multilayer structure. Irving Langmuir and Katherine Ms. Blodgett found LB films in the early 20th century science. LS membrane and LB films are very similar, the only difference is the LS membrane membrane is horizontal, not vertical membrane.
    Features:
    1. The operation process and data acquisition by PC computer and front single-chip microcomputer control, automation and intelligent, may make the artificial operation error to a minimum;
    2. Key parts and components (including sensors), test data precision, good repeatability;
    3. All Chinese operating software based on Windows WINDOW, user friendly interface, graphics printing, can store data can be secondary processing;
    4. Liquid trough large surface area, high sensitivity, small leakage;
    5. Can be automatically measuring the liquid surface tension.
    6. Draw r - A and PI - A curve.
    7. According to the r - A and PI - A set made membrane tension on the lower limit curve, sliding compression and expansion into A film.
    8. Constant tension can be set, sliding barrier during tensile membrane move to maintain constant tension.
    9. Tensile membrane speed is adjustable.
    Technical indicators:
    Surface tension measurement range: 0 mn/m - 150 mn/m
    Resolution: 0.05 mN/m
    Detection methods: hanging piece (WILHELMY TYPE)
    Mode of liquid trough: LANGMUIR
    Liquid tank material: all four fluorine material
    Liquid tank area: JML04C1S mmx80mm, 200:300 mmx100mm JML04C2S, JML04C3S 300 mmx200mm open caisson: phi 40 x 50
    The compression area: 90%
    Sliding BARRIER: LEAKPROOF or BARRIER
    Sliding speed: 0.48-97 - mm/min
    Film speed: 0.22-45 mm/min
    Tensile membrane model: left, right
    Power supply voltage: AC220 plus or minus 10 v
    Power frequency: 50 hz
    Most consumed power: 150 w
    Working temperature: room temperature, can be an external waterbath
    Working humidity: 30% ~ 85% relative humidity


  • Brief introduction:
    LS from LB film technology, membrane technology and LB films are similar in technology. LB film can be defined as a layer or multilayer film from liquid surface accumulation on a solid substrate, through molecular density at a constant flow of single molecule layer dipping into the matrix. In other words, the film is formed by one or more Langmuir membrane accumulation to a solid surface, from the gas phase into the liquid phase, through the vertical dip on the solid substrate (or vice versa). Get a wide range of the arrangement of the membrane, the from single layer thin to hundreds of layers of multilayer structure
