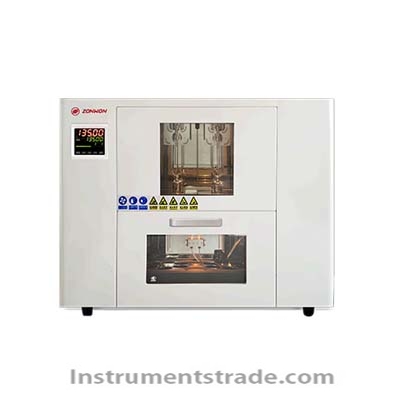

IVS800H Fully Automatic High Temperature Viscosity Measurement System Introduction: Specially designed for high-temperature viscosity testing of materials such as polyethylene PE, polypropylene PP, and PE/PP copolymers. Adopting the Z-type Ubbelohde viscometer, the entire process of automatic sampling, testing, cleaning, and drying is achieved, freeing up experimental personnel and ushering in a new era of viscosity testing. Applicable standards: ISO 1628/3, ASTM D1601, GB/T 1632.3, etc. characteristic: 1. Imported high-precision temperature control module, temperature uniformity and fluctuation ≤ ± 0.03 ℃, ensuring the accuracy of measurement results; 2. The measurement area and temperature control area of the constant temperature bath are separated to make the temperature field in the measurement area more stable; 3. Adopting rigid stainless steel optical fiber, the optical path is stable and the timing is precise; 4. Adopting Ubbelohde capillary viscometer, optimizing the viscosity tube structure, removing the storage ball part, reducing the residual sample in the tube, and facilitating continuous testing. 5. Place the prepared sample into the sample tray and automatically complete the entire experiment; 6. No need to disassemble the viscosity tube, measurement, cleaning and other programs are automatically completed; 7. Batch constant temperature of samples significantly reduces experimental time and improves testing efficiency; 8. Insulate the entire pipeline process to avoid malfunctions caused by solution solidification in the pipeline at room temperature; 9. QDS/LIMS interface, experimental data can be automatically uploaded. 10. Fully automated operation, reducing personnel exposure to chemical reagents; 11. Closed system, automatic collection of waste liquid and exhaust gas, greatly reducing the harm of harmful gases to people; 12. It can automatically inhale samples, measure automatically, and avoid burns or other accidents that may occur during operation at high temperatures. Technical parameters: Bath: Oil bath Measurement time range: 0-9999.999 (s) Timing accuracy: 0.001s Test temperature field uniformity: ≤± 0.05 ° C Temperature control range: 80-150 ° C Viscosity range: 0.3-100000 (mm2/s) Wireless distance: 30m Power supply: 220V/50HZ Power: 2KW Host size: 860 × 720 × 425 (mm)
Introduction: Specially designed for high-temperature viscosity testing of materials such as polyethylene PE, polypropylene PP, and PE/PP copolymers. Adopting the Z-type Ubbelohde viscometer, the entire process of automatic sampling, testing, cleaning, and drying is achieved, freeing up experimental personnel and ushering in a new era of viscosity testing. Applicable standards: ISO 1628/3, ASTM D1601, GB/T 1632.3, etc.
