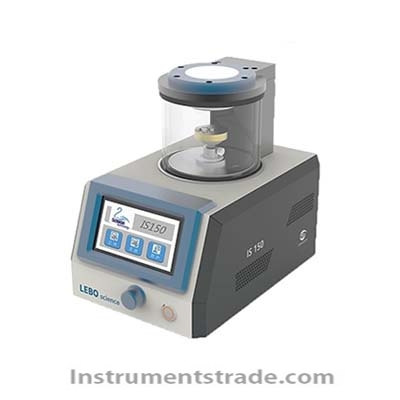

IS150 fully automatic ion sputtering instrument characteristic: 1. Humanized design, simple instrument operation, one click coating. 2. The instrument is compact and space saving, suitable for laboratories, research institutes, etc. 3. The coating is uniform and fine, suitable for various target materials. 4. The sample table can be quickly adjusted for easy access to and placement of samples. 5. The instrument has reliable performance and is equipped with multiple safety protection mechanisms. Technical parameters: Chamber size: Quartz glass, diameter 150mm * height 130mm Power supply specifications: AC220V，200w Applicable target materials: precious metals AU, Pt, Pd alloys AU Pt, AU Pd conventional metals Cu, W, Ag, Cr, etc Adjustable height of sample stage: 20-50mm Sample table size: diameter 55mm Working vacuum degree: 1~10Pa Number of gas channels: single channel Gas flow rate: manually adjusted Control: Touch screen control Dimensions: 260mm * 410mm * 343mm (width * depth * height) Weight: 10KG Vacuum pump: VRD-8
characteristic: 1. Humanized design, simple instrument operation, one click coating. 2. The instrument is compact and space saving, suitable for laboratories, research institutes, etc. 3. The coating is uniform and fine, suitable for various target materials. 4. The sample table can be quickly adjusted for easy access to and placement of samples. 5. The instrument has reliable performance and is equipped with multiple safety protection mechanisms.
