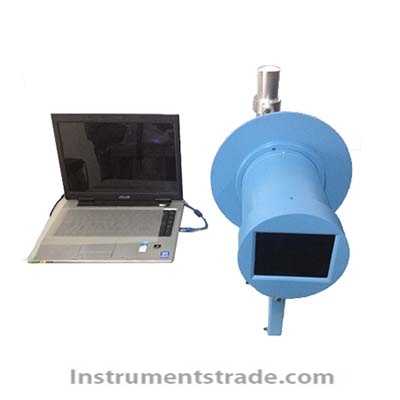

HYG-3 portable DR imaging device Introduction: The HYG-3 portable DR imaging device is widely used for non-destructive testing in industries such as electronics, manufacturing, and mining characteristic: 1. High frequency, low-dose, high-definition digital image output. 2. Can be connected to a monitor (AV output) and a computer (USB output). 3. The image quality can be adjusted according to the thickness of the perspective object, and the image effect can be adjusted on AV and USB output devices. When the image is in the best effect, the captured image can be stored and called up at any time, and connected to a printer for output, saving costs such as film processing. 4. Due to the use of new imaging technology and built-in high-voltage generator, as well as the high sensitivity of the new imaging technology, the radiation dose is very low, ensuring the safety of the operator. Focus: 0.05mm 5. It can penetrate the metal surface to view the size, shape, and quantity of internal objects, such as copper pipes, iron pipes, aluminum pipes, plastic pipes, etc. It can observe tiny structures with a diameter of 0.1 millimeters. Technical parameters: Field of view: 50-120mm Resolution: 60Ip/cm; Output screen brightness:>6cd/cm2; Maximum spacing: 300mm Tube voltage: 60-90kv Tube target flow: 0.15-0.5mA; Contrast ratio: 4%; Grayscale: 7 levels; Leakage radiation:<5mR/h; Host weight: 4.8kg Power consumption: 50W Power supply: 220VA
