HXR-2000 high-speed ultrasonic emulsifier

Product ID:SYHHFSjrh050

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberHXR-2000
    Brand NameSHANGHAIHUXI
    Payment TermsTT,PAYPAL

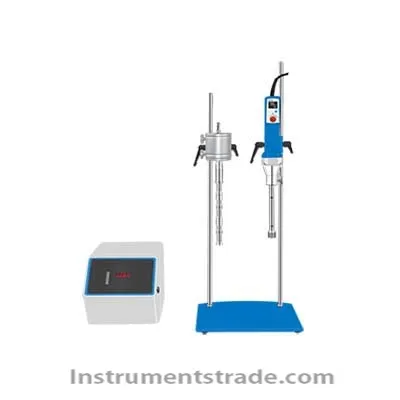

    HXR-2000 high-speed ultrasonic emulsifier

    Introduction:
    The HXR-2000 high-speed ultrasonic emulsifier is a professional processing equipment that combines ultrasonic vibration rods and high-speed emulsifiers, and is used for dispersing large sample capacity, pilot testing, and high sample concentration; Its energy output is between that of ultrasonic dispersers and emulsifiers, so the direction of use is relatively flexible. The integrated equipment can effectively process samples with large capacity, high concentration, high viscosity, and poor fluidity. It is typically used in graphene, silicon oxide, carbon nanotubes, gel, resins and other fields.
    Features:
    1. The ultrasonic controller adopts a self-developed circuit, and the working voltage of the ultrasonic generator device is 220V/AC. The ultrasonic circuit breaker has protective measures such as overvoltage, overcurrent, and output short circuit;
    2. The ultrasonic circuit has automatic frequency tracking, which automatically tracks the frequency at the resonant point suitable for output, ensuring that the transducer always operates in a good state and achieves maximum energy conversion efficiency, achieving good results under different working conditions;
    3. The ultrasonic controller has the function of power adjustment, and the output power can be continuously adjusted to meet the requirements of various sample objects;
    4. Equipped with display of working status for easy observation of the working status of the ultrasonic controller;
    5. The 30JX specially designed high shear working head meets the processing capacity of 2L-10L and is suitable for different sample processing requirements;
    6. The overall structure design is compact and exquisitely designed, providing a linear speed of 47m/s for sample homogenization;
    7. The bi-directional support rod design combined with dual hole fixed clamps forms an integrated lifting and adjustment system, making your experiment more reliable and safe;
    8. It can be paired with a temperature sensor to measure the sample temperature in real time. When it reaches the set value, it automatically stops running, better protecting the sample and ensuring the safety and reliability of the experiment.
    Technical parameters:
    Model: HXR-2000
    Power supply: 220V/50-60Hz
    Rated ultrasound input power: 500W
    Ultrasonic output power: 2000W
    Timer: 0-999Min
    Driving method: piezoelectric ceramic
    Display: Touch screen display
    Temperature display: -10~199
    Adjustment: Power adjustable from 30% to 100%
    Work head material: titanium alloy T1-6AL-4V, amplitude ratio: 1:1.5
    Specification: diameter 25-35mm
    Job Head Type: Exponential
    Minimum immersion depth: 150-300mm
    Emulsification display: LCD screen display
    Emulsification input power: 1050W
    Emulsification output power: 750W
    Drive motor: Brushless DC motor, capable of continuous operation
    Emulsification speed: adjustable from 4000-26000rpm
    Emulsification head material: 304/316L optional
    Emulsification head diameter: stator outer diameter 30mm
    Processing samples: suitable for paste, fiber, liquid, resin
    Cable length: 150cm
    Specification of fuse: 20A
    Processing capacity: 2L-10L

  • Introduction:
    The HXR-2000 high-speed ultrasonic emulsifier is a professional processing equipment that combines ultrasonic vibration rods and high-speed emulsifiers, and is used for dispersing large sample capacity, pilot testing, and high sample concentration; Its energy output is between that of ultrasonic dispersers and emulsifiers, so the direction of use is relatively flexible. The integrated equipment can effectively process samples with large capacity, high concentration, high viscosity, and poor fluidity. It is typically used in graphene, silicon oxide, carbon nanotubes, gel, resins and other fields.
