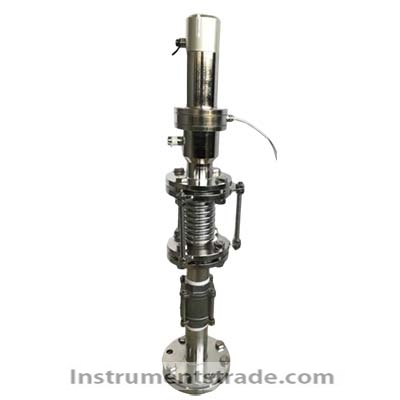

HWFST500-BRFLC Hot Blast Stove Radiation Pyrometer
Product Overview
The HWFST500-BRFLC Hot Blast Stove Radiation Pyrometer is a high-performance infrared temperature measurement system specifically designed for monitoring the temperature of hot blast stove domes and air ducts in ironmaking blast furnace operations. It uses non-contact infrared radiation measurement instead of conventional thermocouples, providing fast and accurate temperature data under conditions involving frequent temperature changes, pressure fluctuations, vibration, and difficult installation environments.
The system integrates optical sensing, electronic signal processing, cooling, air purging, and protection against water and dust. Its dedicated protective assembly enables reliable operation in high-temperature, high-pressure, and outdoor environments, helping maintain continuous temperature monitoring without requiring blast furnace shutdown for routine measurement maintenance.

Key Features
• Specifically designed for temperature measurement of hot blast stove domes and air ducts
• Non-contact infrared temperature measurement eliminates many limitations associated with thermocouples
• Fast response and high measurement accuracy
• Microcomputer-based data acquisition and signal processing
• Imported key electronic components for stable and reliable operation
• Adjustable slope and emissivity settings
• Slope adjustment range: 800–1200
• Emissivity adjustment range: 0.10–1.00
• Dedicated sealed viewing window with moisture removal, anti-condensation, and thermal insulation functions
• Flange connection for convenient installation on stove domes or air ducts
• Stainless-steel ball valve for opening and closing the sight tube
• Integrated cooling and air-purging system for improved measurement reliability
• IP33-rated protection against dust and water
• Designed for continuous operation in demanding blast furnace environments

Working Principle
The HWFST500-BRFLC measures the temperature of the hot blast stove dome or air duct through an opening perpendicular to the dome cover and connected to the regenerator, or through an existing thermocouple measurement port.
The optical receiving unit detects infrared radiation emitted by the measured surface. The temperature signal is transmitted through a dedicated cable to the secondary instrument installed in the measurement and control cabinet. After signal processing, the system displays the measured temperature and provides multiple output signals for connection to computers, recorders, or other control systems.
This non-contact measurement method avoids direct insertion of a temperature sensor into the high-temperature process, reducing the influence of installation depth, mechanical vibration, pressure fluctuations, and thermocouple response lag.

System Composition
The HWFST500-BRFLC consists of the following major functional sections:
• Optical receiving unit
• Electronic signal processing unit
• Cooling system
• Air-purging system
• Waterproof and dustproof protection system
• Protective steel sleeve
• Fine adjustment mechanism
• Thermal insulation layer
• Quartz glass assembly
• Heating system
• Stainless-steel ball valve
• Seamless steel pipe
• Flange assembly

Technical Specifications

Parameter	Specification
Product Model	HWFST500-BRFLC
Product Type	Hot Blast Stove Radiation Pyrometer
Measurement Method	Non-contact infrared radiation measurement
Application	Hot blast stove dome and air duct temperature measurement
Slope Adjustment Range	800–1200
Emissivity Adjustment Range	0.10–1.00
Data Processing	Microcomputer-based data acquisition and processing
Key Components	Imported electronic components
Protection Rating	IP33
Installation	Flange connection
Protective Structure	Protective steel sleeve, insulation, quartz glass, heating and cooling systems
Valve	Stainless-steel ball valve
Signal Transmission	Dedicated cable to secondary instrument
Output	Multiple signal outputs for computer or recorder connection

Applications
The HWFST500-BRFLC is primarily designed for temperature monitoring in ironmaking and blast furnace systems, including:
• Hot blast stove dome temperature monitoring
• Hot blast stove air duct temperature measurement
• Blast furnace temperature monitoring systems
• Ironmaking process temperature control
• High-temperature furnace monitoring
• Industrial thermal process monitoring
• Continuous temperature monitoring in high-temperature and high-pressure environments

Application Scenarios
Hot Blast Stove Dome Monitoring
The pyrometer can measure the temperature of the stove dome through an existing measurement opening or dedicated installation port, providing continuous temperature information for safe and accurate hot blast stove operation.
Air Duct Temperature Monitoring
The system can be installed on hot blast stove air ducts to provide real-time temperature measurement without inserting a thermocouple directly into the duct.
Existing Thermocouple Port Replacement
The HWFST500-BRFLC can utilize an existing thermocouple measurement opening, reducing installation modifications and facilitating the replacement of conventional contact temperature measurement methods.
Outdoor Industrial Installation
The dedicated protective structure incorporates sealing, heating, cooling, moisture protection, and dust/water protection measures, allowing the infrared measurement system to operate reliably under changing outdoor environmental conditions.

Advantages Over Conventional Thermocouple Measurement

Feature	HWFST500-BRFLC Radiation Pyrometer	Conventional Thermocouple
Measurement Method	Non-contact infrared	Contact measurement
Response	Fast	Relatively slow
Installation	Flange-mounted optical system	Requires probe insertion
Effect of Vibration	Low influence on sensing element	Can affect measurement stability
Pressure Fluctuation	No direct sensor insertion	May affect installation and probe
Maintenance	Designed for convenient maintenance	Probe replacement and maintenance required
High-Temperature Measurement	Suitable for hot blast stove applications	Limited by thermocouple materials and structure
Continuous Operation	Supports continuous monitoring	Sensor wear and damage may require maintenance

FAQ
What is the HWFST500-BRFLC used for?
The HWFST500-BRFLC is designed for non-contact temperature measurement of hot blast stove domes and air ducts in blast furnace ironmaking systems.
Why use a radiation pyrometer instead of a thermocouple?
A radiation pyrometer performs non-contact measurement, avoiding many problems associated with probe insertion, installation depth, vibration, pressure fluctuations, and thermocouple response lag.
Can the system operate outdoors?
Yes. The system is designed with a dedicated protective assembly incorporating sealing, moisture removal, anti-condensation, insulation, heating, cooling, and dust/water protection functions for outdoor industrial environments.
Can the HWFST500-BRFLC be connected to an existing thermocouple port?
Yes. The system can use an existing thermocouple measurement opening, which can simplify installation and modification.
Is the emissivity adjustable?
Yes. The emissivity adjustment range is 0.10–1.00.
What is the protection rating of the system?
The HWFST500-BRFLC system has an IP33 protection rating.
What signals can the system provide?
The measured temperature is processed by the secondary instrument, which can display the temperature and provide multiple signal outputs for connection to computers, recorders, or other equipment.

Product Summary
The HWFST500-BRFLC Hot Blast Stove Radiation Pyrometer provides a reliable non-contact alternative to conventional thermocouple temperature measurement for blast furnace hot blast stoves. With fast response, adjustable measurement parameters, dedicated environmental protection, and continuous measurement capability, it is well suited for high-temperature temperature monitoring in ironmaking and other demanding industrial furnace applications.
