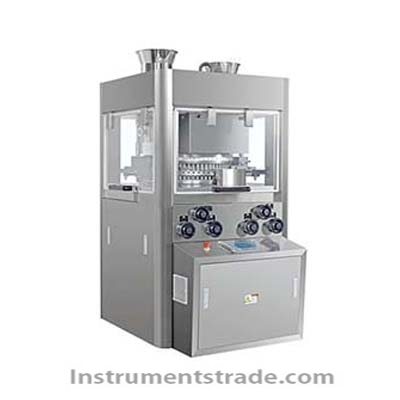

HSZP-57 high-speed automatic tablet press for Pharmaceutical Industry

Product ID：HZYJzjypj001

Price: Please inquire PDF Format

Supply Ability:320SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberHSZP-57

Brand NameYIMA

Payment TermsT/T, paypal

Introduction:
HSZP series of rotary tablet press can be widely used in the pharmaceutical industry, but also for food, chemical, electronics and other industries. A variety of tablets in line with the requirements of the tablet material pressed into tablets. The highest production reached 300,000 per hour.
The use of pressed dry granulated raw materials in the fine powder (greater than 100 mesh) content of not more than 10%, not suitable for semi-solid, wet particles, low melting point of raw materials and non-granulated powder suppression.
The machine not only can suppress the round sheet, but also to suppress the geometric shape of the shaped and double-sided lettering.
HSZP series rotary tablet presses have four specifications, namely: HSZP35, HSZP43, HSZP53, HSZP57 (four specifications of the model of the technical parameters described below) customers can according to their respective production, product size to choose the appropriate size model.
Features:
The maximum pressure of the machine, while setting the preload device to extend the pressure time, so that the quality of tablets more in line with the requirements.
Turntable high speed, double-sided tablet, the highest yield of 300,000 per hour, to meet the requirements of mass production of pharmaceutical companies.
The pressure on the pressure roller and the display screen to accurately display the average working pressure of the tablet; at the same time you can set the maximum working pressure, when the working pressure exceeds the set value, the machine automatically emergency stop, play a protective role.
The main pressure, preload and fill adjustment part of the displacement sensor, through the front of the six hand wheel adjustment, you can clearly show the main press on the thick, pre-compression film thickness and filling depth value, easy to adjust the tablet Thickness and weight.
The lubricating part of the equipment adopts electric lubrication pump, measuring parts and other automatic lubrication system, the upper and lower rails, pressure roller, punch and turntable holes and other parts of the relative friction movement of oil, and according to the actual work needs in a timely manner on the touch screen Adjust the lubrication frequency and time, in order to obtain lubrication effect, reduce noise, extend the life of parts.
Control part of the programmable controller, the operation panel with color touch screen, convenient and intuitive. Display the screen as the user's user interface, you can display the main technical parameters, pressure average, filling the amount of the main pre-tablet thickness, etc .; set turntable speed and other operating parameters, maximum working pressure, lubrication frequency and time control parameters; Fault point, display the cause of the malfunction and remove the method to improve the maintenance efficiency.
Technical Parameters:

Model		HSZP57
No.of Stations		57
Type of Tooling		IPT
Max. Pressure (kN)		80
Max. Pre-pressure (kN)		60
Max. Filling Depth (mm)		18
Max. Tablet Dia (mm)		11
Max. Tablets output (ten thousand/ hour)		30.78
Max. Turret Speed （1/min）		45
Main Motor Power(kW)		7.5
Height of the Machine (mm)	Without Hopper	1750
	With Hopper	1900
Machine Floor Space (mm²)		1170×1290
Machine Net Weight（kg）		3500
