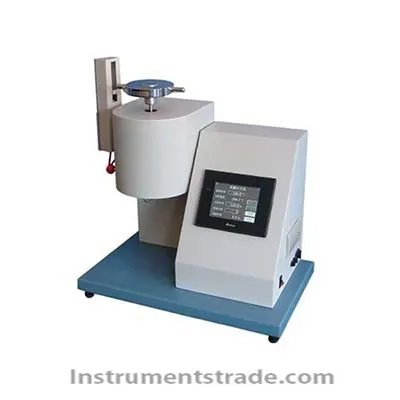

HSY-3682A Melt Flow Rate Tester

Product ID:HZXSrrzs015

Price: Please inquire PDF Format
Supply Ability:30SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberHSY-3682A
    Brand NameSHANGHAIQIGAO
    Payment TermsT/T, paypal
    HSY-3682A Melt Flow Rate Tester
    Introduction
    HSY-3682A (liquid crystal display, fully automatic) melt flow rate measuring instrument is an instrument for measuring the flow properties of thermoplastics at high temperature according to the test methods of GB3682-2000 and ISO1133. It adopts microcomputer (microcontroller) control, Chinese operation interface, automatic Test results; for the determination of melt flow rate at high temperatures for polyethylene (PE), polypropylene (PP), polyoxymethylene (POM), polystyrene (PS), ABS plastic, polycarbonate (PC), etc. Measuring MFR value, equipped with printer, manual automatic two cutting methods.

    Feature
    Easy to operate
    High control accuracy

    Technical Parameters
    1. Extrusion part
    Outlet diameter: Φ2.095±0.005 mm
    Outlet length: 8.000±0.025 mm
    Loading cylinder diameter: Φ9.550±0.025 mm
    Loading barrel length: 152 ± 0.1 mm
    Piston head diameter: 9.475 ± 0.015 mm
    Piston head length: 6.350 ± 0.100 mm
    2, standard test load (a total of 8)
    Level 1: 0.325kg=(piston rod + weight tray + insulation sleeve + 1 size body) = 3.187N
    Level 2: 1.200kg=(0.325+2#0.875)=11.77N
    Level 3: 2.160kg = (0.325 + 3 No. 1.835 weight) = 21.18N
    Level 4: 3.800kg = (0.325 + 4 No. 3.475) = 37.26N
    Level 5: 5.000kg = (0.325 + 5 No. 4.675) =49.03N
    Level 6: 10.000kg=(0.325+5#4.675 +6号5.000)=98.07N
    Level 7: 12.500kg=(0.325+5#4.675 +6号5.000 +7号2.500)=122.58N
    Level 8: 21.600kg=(0.325+5#4.675 +6号5.000 +7号2.500 +8号2.915)=211.82N
    3, temperature range: room temperature - 400 ° C
    4, constant temperature accuracy: ± 0.1 ° C
    5, display resolution: 0.1 ° C
    6, temperature recovery time: less than 4 minutes
    7, the number of cuttings: 1-99 times
    8, cutting time interval: 10-600 seconds
    9, constant temperature time: can work tens of thousands of hours
    10, the power supply voltage: AC220V ± 10% 50HZ
    11. Dimensions: width × thickness × height = 250 × 350 × 510 (mm)
