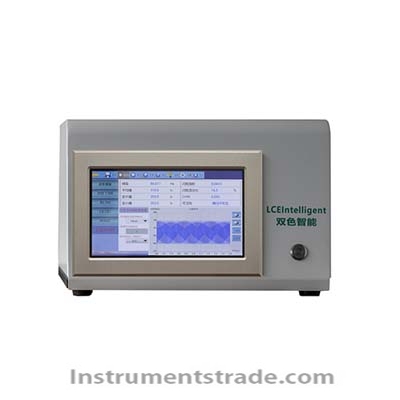

HSP6000F Light Source Flicker Meter

Position: Home > > Optical instruments and equipment > Optical measurement instrument > Other optical measuring instruments > HSP6000F Light Source Flicker Meter

HSP6000F Light Source Flicker Meter

Product ID：GGFqita005

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHSP6000F

Brand NameHZSHUANGSE

Payment TermsTT，PAYPAL，Alibaba.com Pay

HSP6000F Light Source Flicker Meter

Product Introduction
The HSP6000F Light Source Flicker Meter is a professional instrument designed for real-time measurement and recording of light intensity waveforms, spectra, and key flicker parameters, including the short-term flicker severity index (Pst), stroboscopic effect visibility measure (SVM), and flicker perception index (Mp).
Suitable for LED lighting, general light sources, flash lamps, automotive xenon lamps, warning lights, and other transient light sources, this light flicker measurement instrument supports flash frequency analysis, photometric variation curve recording, and stable light source measurements. It can also be used with integrating spheres, luminous intensity devices, and luminance tubes for expanded photometric testing.

Performance Features
• High-Speed Data Acquisition: High-performance CPU, precision electro-optical sensor, and high-speed 16-bit analog-to-digital conversion for stable, accurate measurements.
•   Comprehensive Flicker Analysis: Records light waveforms, spectra, Pst, SVM, and Mp parameters.
• 10.1-Inch IPS Touchscreen: High-resolution capacitive touchscreen with vivid graphics, intuitive controls, and clear data presentation.
•   Fast Operation: Millisecond-level startup and shutdown with one-touch testing.
•   Flexible Sampling: Selectable sampling rates from 1 kS/s to 100 kS/s.
• Convenient Data Management: Supports system updates and measurement file export in PDF, GDF, and Excel formats.

Working Principle
The HSP6000F uses a precision optical sensor to detect changes in incident light and convert them into electrical signals. A high-speed 16-bit analog-to-digital converter samples these signals, while the embedded processing system analyzes the resulting data to generate light intensity waveforms, spectra, and photometric measurements.
Based on the acquired light variation data, the instrument evaluates flicker-related parameters such as Pst, SVM, and Mp, helping users assess temporal light modulation and potential visual effects. It also supports illuminance, luminance, luminous flux, and luminous intensity measurements.

Technical Parameters

Parameter	Specification
Illuminance Measurement Range	0.1–200,000 lx
Measurement Range Selection	Automatic and 4 selectable ranges
Measurement Accuracy	Class 1, ±4%
Sampling Rates	1, 5, 10, and 100 kS/s
Sampling Time	0.1–200 s at 1 kS/s, adjustable
Measurement Modes	Illuminance, luminance, luminous flux, luminous intensity
Flicker Parameters	Pst, SVM, Mp
Data Recording	Light waveforms and spectra
Export Formats	PDF, GDF, Excel
Display	10.1-inch high-resolution IPS capacitive touchscreen
System	Embedded operating system with upgrade support

Note: Specifications are based on the supplied product information. Confirm any additional operating conditions or measurement-mode-specific limits with the manufacturer.

Application Scenarios
• LED Lighting Testing: Evaluate light flicker and temporal light modulation in LED lamps and lighting systems.
• Lighting Quality Assessment: Measure Pst, SVM, and related parameters for lighting performance evaluation.
• Automotive Lighting: Analyze flash frequency and light output variations in automotive xenon lamps and warning lights.
• Flash Lamp Testing: Record transient light waveforms and photometric changes.
• Laboratory Photometry: Measure stable light sources and analyze light intensity variation.
• Optical Measurement Systems: Integrate with integrating spheres, luminous intensity devices, and luminance tubes.

HSP6000F vs. Conventional Light Meters

Comparison Item	HSP6000F Light Source Flicker Meter	Conventional Illuminance Meter
Primary Function	Flicker analysis and photometric measurement	Primarily illuminance measurement
Waveform Recording	Supports	Usually unavailable
Spectrum Recording	Supports	Model-dependent
Pst and SVM Analysis	Supported	Usually unavailable
Transient Light Measurement	Supports waveform and flash-frequency analysis	Generally limited
Sampling Rate	Up to 100 kS/s	Depends on instrument
Data Export	PDF, GDF, Excel	Depends on model
Display	10.1-inch IPS touchscreen	Varies by model

Frequently Asked Questions
1. What is the HSP6000F Light Source Flicker Meter used for?
It measures light waveforms, spectra, flicker parameters, and photometric quantities for lighting evaluation, laboratory testing, and transient light source analysis.
2. Which flicker parameters can the HSP6000F measure?
It supports Pst short-term flicker severity, SVM stroboscopic effect visibility measurement, and Mp flicker perception measurement.
3. Can the HSP6000F test LED lights?
Yes. It is suitable for evaluating flicker and light output variations in LED lamps and other lighting sources.
4. Can it measure flashing and transient light sources?
Yes. It can record flash frequency and photometric variation curves for flash lamps, automotive xenon lamps, warning lights, and similar sources.
5. What is the maximum sampling rate?
The maximum selectable sampling rate is 100 kS/s, equivalent to 100,000 samples per second.
6. What is the illuminance measurement range?
The specified illuminance range is 0.1 lx to 200,000 lx, with automatic range selection and four selectable measurement ranges.
7. Which photometric quantities can it measure?
The instrument supports illuminance, luminance, luminous flux, and luminous intensity measurement modes.
8. What file formats are available for measurement data?
Measurement files can be saved in PDF, GDF, and Excel formats.
9. Can the HSP6000F work with other optical testing equipment?
Yes. It can be used with integrating spheres, luminous intensity devices, and luminance tubes for broader photometric testing applications.
