HRC60×16.7MAPRF electric zoom lens

Product ID：GSYjtjp026

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHRC60×16.7MAPRF

Brand NameHUARUITONG

Payment TermsTT，PAYPAL，Alibaba.com Pay

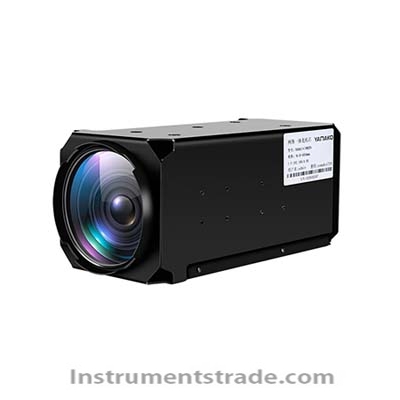

HRC60×16.7MAPRF electric zoom lens
Introduction:
The HRC60×16.7MAPRF is an industry-leading high-definition fog-penetrating telephoto lens specifically designed for both day and night infrared surveillance. Its unique optical technology enables it to provide detailed color images during the day and fine black-and-white images at night. It is suitable for long-distance day and night surveillance in border and coastal defense, forest fire prevention, ports, railways, highways, airports, and other applications. It allows for clearer and farther vision even in foggy weather.
Features:
1. It ensures a center resolution of no less than 2 million pixels and a peripheral resolution of no less than 1.3 million pixels, providing high-definition image quality and color reproduction.
2. The lens features an integrated auto-focus function for easier operation and more accurate focusing. 3.
The fog-penetrating function effectively penetrates fog, solving the problem of objects being invisible in heavy fog conditions. It employs multiple sets of filters to accommodate different application scenarios. 4.
It boasts 24-hour surveillance capability, providing high-definition color images during the day and fine black-and-white images at night.
5. An integrated temperature sensor detects thermal expansion and contraction caused by changes in lens temperature, automatically compensating for the back focus position to prevent image blurring. Even in environments with significant temperature differences, it maintains clear images without the need for refocusing.
6. The lens adopts military-grade standards, enabling it to operate normally in extreme environments ranging from -40°C to 70°C, with excellent environmental adaptability.
7. It employs RS485 digital control, a pioneering innovation in the industry, and also supports analog level control, compatible with existing traditional control methods. 8.
It effectively reduces light reflection, minimizes astigmatism and ghosting, and enhances light transmission ability, allowing the lens to absorb more light energy. 9.
It ensures over 98% transmittance in the visible light and near-infrared light (400-1100nm) ranges, expanding the transmission range.
Technical Specifications:

model		HRC60×16.7MAPRF
Screen size		1/1.8 type
focal length		16.7mm-1000mm
pixel		2 million
interface		C
Aperture range		F4-10
Minimum object distance		5 meters
Field of view angle (diagonal × horizontal × vertical)	1/1.8"	20.258X0.426~17.7X0.372~10.011X0.209
	1/2"	18.181X0.382~14.588X0.306~10.967X0.229
	1/3"	13.686X0.286~10.967X0.229~8.236X0.172
Back focal length (in air)		36.1mm
Operation method	focus	electric
	zoom	electric
	aperture	electric
distortion rate	1/1.8"	0.3%~-0.48%
	1/2"	0.24%~-0.34%
	1/3"	0.13%~-0.19%
Overall dimensions (W×H×L)		160168412mm
fog-penetrating		have
autofocus		have
weight		9.5kg
Operating Temperature		-40°~+70°
