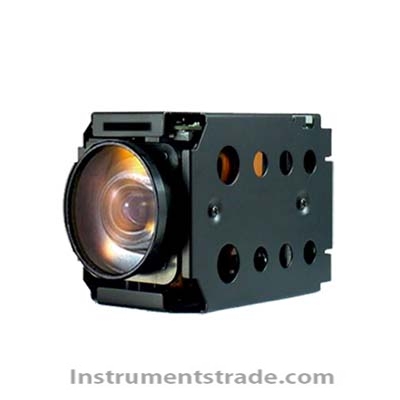

HRC10-210mm electric zoom lens

Product ID：GSYjtjp025

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHRC10-210mm

Brand NameHUARUITONG

Payment TermsTT，PAYPAL，Alibaba.com Pay

HRC10-210mm electric zoom lens
Introduction:
The HRC 2 million 10-210mm is an industry-leading high-definition motorized zoom lens specifically designed for both day and night infrared surveillance. Its unique optical technology enables it to provide detailed color images during the day and fine black-and-white images at night. It is suitable for long-distance day and night surveillance needs in areas such as forest fire prevention, ports, borders, railways, highways, and airports, allowing for clearer and farther vision even in hazy weather.
Features:
1. World-first broadcast-grade megapixel, high magnification lens.
2. Ensures a center resolution of no less than 2 million pixels and a peripheral resolution of no less than 1.3 million pixels, providing high-definition image quality and color reproduction.
3. Day and night IR function - the industry's highest level,
with 24-hour surveillance capability. Provides high-definition color images during the day and fine black-and-white images at night.
4. Advanced nano-EBC electron beam coating technology - world-leading.
Effectively reduces light reflection, minimizes astigmatism and ghosting, and enhances light transmission ability, allowing the lens to absorb more light energy. 5.
Wide wavelength and high transmittance technology
ensures over 95% transmittance in the visible light and near-infrared light (400-950nm) ranges, expanding the transmission range.
Technical Specifications:

specification			1/2"
focal length			10～210mm
Aperture value			F2.0-360
Back focus value			12.97mm
interface method			C
Operation method		aperture	DC drive
		focus	electric
		zoom	electric
field of view	1/2"	wide-angle	42.8°×34.7°×26.2°
		telephoto	2.23°×1. 8°×1.36°
Shortest object distance			1.5m
effective diameter		Front group	Φ42mm
		Back group	Φ16.58mm
Front filter thread			M=62.0 P=0.75
wavelength			400～950nm
feature			ED, IR, 2.0MP
Overall dimensions			Φ78mm×92mm×159.3mm
Operating Temperature			-10oC ～ +50oC
weight			850g (for reference)
