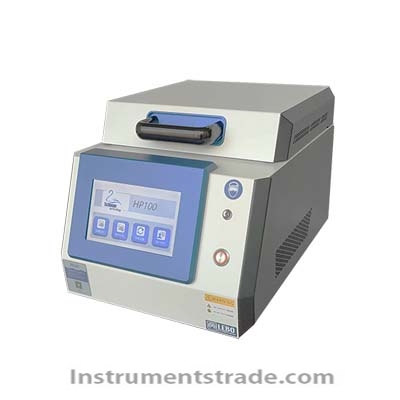

HP100 standard glue baking machine Introduction: The HP100 glue baking machine is a glue baking equipment with high thermal uniformity and temperature control, which can store 100 sets of programs, each set of programs can reach 5 steps. All operating parameters such as heating time and selection of lifting height can be conveniently set on the touch screen. characteristic: 1. Hard anodized aluminum panel, panel size: 220mm * 220mm, suitable for 8 "round crystal substrate baking glue 2. Temperature regulation range: room temperature to 300 ℃, temperature resolution: 0.1 ℃ 3.7-inch full-color touch screen, advanced PLC control, temperature control accuracy up to ± 0.2 ℃ 4. Close to baking glue mode with lifting function, lifting height range: 0-30mm controllable, electric needle height resolution: 0.1mm 5. The ejector pin can be used for circular or square substrates with a diameter or inscribed circle diameter greater than 40mm 6.1KW cast aluminum high uniformity heating component, with uniform surface temperature on the heating plate Technical parameters: 1. Hard anodized aluminum panel, panel size: 220mm * 220mm, suitable for 8 "round crystal substrate baking glue 2. Temperature regulation range: room temperature to 300 ℃, temperature resolution: 0.1 ℃ 3.7-inch full-color touch screen, advanced PLC control, temperature control accuracy up to ± 0.2 ℃ 4. Close to baking glue mode with lifting function, lifting height range: 0-30mm controllable, electric needle height resolution: 0.1mm 5. The ejector pin can be used for circular or square substrates with a diameter or inscribed circle diameter greater than 40mm 6.1KW cast aluminum high uniformity heating component, surface temperature uniformity of the hot plate: ± 1% in the working area 7. Can store 100 sets of baking glue formulas, each with 5 heating stages, adjustable heating time and top needle height 8. Dimensions: 303 (W) * 446 (D) * 295 (D)
Introduction: The HP100 glue baking machine is a glue baking equipment with high thermal uniformity and temperature control, which can store 100 sets of programs, each set of programs can reach 5 steps. All operating parameters such as heating time and selection of lifting height can be conveniently set on the touch screen.
