HBM-400A Homogenizer for Laboratory Sample Preparation
Product Overview

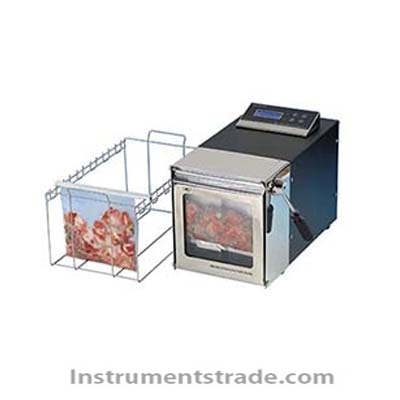

The HBM-400A Homogenizer is a laboratory stomacher-type homogenizer designed to prepare representative samples from solid or semi-solid materials. The sample and diluent are placed in a sterile disposable filter bag, which is then processed directly in the homogenizer without contact between the sample and the instrument.
The unit efficiently releases and mixes microorganisms and other target components from the sample matrix, providing a representative homogenate for subsequent analysis. With adjustable homogenization time and speed, the HBM-400A is suitable for food testing, microbiological analysis, environmental monitoring, agricultural testing, and research laboratories.

Key Features
• Quiet operation and simple digital control for convenient laboratory use.
• Adjustable homogenization time with eight preset settings from 10 seconds to 600 seconds, plus continuous operation.
• Variable homogenization speed of 6–9 cycles/second, with customization available from 3–12 cycles/second.
• 30–400 mL effective processing volume for a wide range of laboratory samples.
• Optional micro-slapper mechanism for processing smaller sample quantities.
• Sterile disposable filter bags help maintain hygienic sample handling and reduce cross-contamination.
• Full-opening door, transparent glass window, and waste collection tank make operation, observation, and cleanup easier.
• Sample remains inside the sterile bag and does not contact the homogenizer, minimizing the need for system cleaning when no leakage occurs.
• Automatic stop Hall switch helps protect the operator by stopping operation when the door is opened.

Working Principle
The HBM-400A uses a stomacher-type mechanical homogenization principle. The sample and a suitable diluent are sealed inside a sterile disposable filter bag. After the bag is placed in the chamber, the homogenizer uses reciprocating paddles to repeatedly compress and release the bag.
This mechanical action breaks up and disperses the sample while transferring microorganisms and other analytes into the liquid phase. The resulting homogenate can then be removed from the sterile bag for subsequent microbiological, chemical, or other analytical procedures.
Because the sample does not directly contact the internal mechanism, the risk of cross-contamination and instrument contamination is significantly reduced.

Technical Specifications

Specification	HBM-400A
Control Method	Digital control
Effective Volume	30–400 mL
Homogenization Time	10 s, 30 s, 60 s, 90 s, 120 s, 180 s, 600 s, or continuous operation
Time Settings	8 adjustable settings
Homogenization Speed	6–9 cycles/s
Customized Speed Range	3–12 cycles/s
Homogenization Bag Size	30 × 17 cm
Power	200 W
Power Supply	220 V / 50 Hz
Net Weight	16.5 kg
Dimensions	450 × 270 × 290 mm
Optional Accessory	Micro-slapper mechanism for micro-sample processing

Applications
• Food Testing: Sample preparation for microbiological and quality testing of food products.
• Agricultural Products: Homogenization of vegetables, fruits, aquatic products, and other agricultural samples.
• Microbiological Analysis: Preparation of representative homogenates for microbial detection and enumeration.
• Pesticide Residue Testing: Pretreatment and homogenization of food and agricultural samples before chemical analysis.
• Environmental Monitoring: Sample preparation for environmental microbiological and chemical testing.
• Scientific Research: Sample pretreatment in universities, research institutes, and analytical laboratories.

Applicable Standards
The HBM-400A is designed for laboratory sample homogenization procedures commonly used in food, microbiological, agricultural, and environmental testing. Specific analytical standards should be selected according to the sample type and testing method, such as applicable food microbiology, pesticide residue, and environmental analysis procedures.

Comparison

Feature	HBM-400A Stomacher Homogenizer	Manual Homogenization	Conventional Probe Homogenizer
Sample Contact with Instrument	No direct contact	Usually direct	Direct
Sterile Disposable Bag	Yes	Optional	Generally not applicable
Cross-Contamination Risk	Low when bags remain intact	Relatively high	Higher
Homogenization Control	Adjustable time and speed	Operator dependent	Adjustable depending on model
Sample Processing	30–400 mL	Flexible	Usually small to medium volume
Cleaning Requirement	Minimal when no bag leakage occurs	Manual cleaning required	Cleaning between samples required
Microbiological Sample Preparation	Well suited	Less consistent	Suitable, but requires cleaning/sterilization
Observation	Transparent window	Operator dependent	Usually direct vessel observation
Safety Feature	Automatic stop Hall switch	Not applicable	Model dependent

FAQ
1. What is the HBM-400A homogenizer used for?
It is mainly used for laboratory sample homogenization and pretreatment in food testing, microbiological analysis, agricultural testing, environmental monitoring, and scientific research.
2. What sample volume can the HBM-400A process?
The effective processing volume is 30–400 mL.
3. Does the sample contact the homogenizer?
No. The sample is processed inside a sterile disposable bag, so it does not normally contact the homogenization mechanism.
4. What is the homogenization speed?
The standard adjustable speed is 6–9 cycles per second, and a customized range of 3–12 cycles per second is available.
5. Can the homogenization time be adjusted?
Yes. The HBM-400A provides eight time settings: 10, 30, 60, 90, 120, 180, and 600 seconds, plus continuous operation.
6. What type of bags are used?
The instrument is designed for sterile disposable filter bags, with a recommended bag size of approximately 30 × 17 cm.
7. Is the HBM-400A suitable for microbiological testing?
Yes. Its sterile-bag processing method and low sample-to-instrument contact make it suitable for microbiological sample preparation.
8. Does the instrument require cleaning after every sample?
Normally, no cleaning of the homogenization mechanism is required when the sterile bag remains intact and there is no sample leakage.
9. Is there an option for very small samples?
Yes. An optional micro-slapper mechanism is available for micro-sample processing.
10. What is the power requirement of the HBM-400A?
The unit is rated at 200 W and requires 220 V / 50 Hz power.
