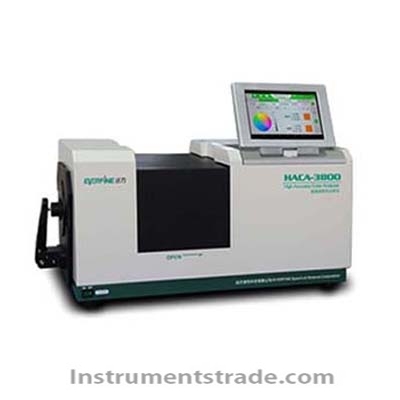

HACA-3800 High-Precision Spectrophotometer

Position: Home > > Optical instruments and equipment > Optical inspection instrument > Color measuring instrument > HACA-3800 High-Precision Spectrophotometer

HACA-3800 High-Precision Spectrophotometer

Product ID：GGCcsyi012

Price: Please inquire PDF Format

Supply Ability:50 SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberHACA-3800

Brand NameHZYUANFANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

HACA-3800 High-Precision Spectrophotometer
Product Overview
The HACA-3800 High-Precision Spectrophotometer is a professional-grade color measurement instrument developed for research, product development, laboratory analysis, and industrial color quality control. Utilizing advanced spectral measurement technology, it provides highly accurate measurements of spectral reflectance, spectral transmittance, color values, whiteness, yellowness index, metamerism index, and numerous international color parameters.
Designed for both reflection and transmission measurements, the HACA-3800 supports SCI (Specular Component Included) and SCE (Specular Component Excluded) measurement modes, enabling comprehensive evaluation of opaque, transparent, translucent, solid, and liquid samples.
With industry-leading repeatability of ΔE*ab < 0.005, dual-beam optical feedback, automatic zoom imaging, UV correction, and an integrated touch-screen operating system, the HACA-3800 is widely used in plastics, textiles, coatings, inks, dyes, printing, glass, pharmaceuticals, cosmetics, and scientific research laboratories.
The instrument complies with major international standards including ISO, CIE, ASTM, DIN, JIS, and GB.

Key Features
• Industry-leading repeatability of ΔE*ab < 0.005
•Advanced dual-beam optical feedback system for continuous light source compensation
• High-speed, high-resolution built-in spectrometer
• Reflection and transmission measurement in one instrument
• Optional SCI and SCE measurement modes
• Imaging-assisted positioning for precise measurement area selection
• Automatic zoom adjustment for different aperture sizes
• High-performance light source with excellent stability and long service life
• Outstanding measurement accuracy for dark and low-reflectance materials
• Large transmission chamber for solid and liquid sample measurement
• UV correction for fluorescent whitening materials
• Built-in calibration and self-standardization functions
• Large touch-screen interface for standalone operation
• Comprehensive analysis software for color management and statistical analysis

Working Principle
The HACA-3800 measures the spectral characteristics of samples using a high-performance spectrometer combined with an optimized optical system.
For opaque materials, diffuse illumination and 8° viewing geometry accurately determine spectral reflectance. For transparent or translucent samples, diffuse transmission measurement provides spectral transmittance data.
The collected spectral information is converted into various international color spaces and color difference formulas, allowing precise evaluation of product color consistency, whiteness, yellowness, opacity, metamerism, and other optical properties.
The dual-beam feedback system continuously monitors light source stability to ensure highly repeatable measurement results, while UV correction improves the accuracy of fluorescent materials.

Technical Specifications

Parameter	Specification
Model	HACA-3800
Measuring Geometry	Reflection: d/8 (Diffuse Illumination / 8° Viewing)
Transmission Geometry	d/0 (Diffuse Illumination / 0° Viewing)
Measurement Modes	SCI / SCE Optional
Standard Observer	2° / 10°
Standard Illuminants	A, C, D50, D65, F1–F12, ID50, ID65
Color Spaces	CIE Yxy, XYZ, Lab, Lch, Hunter Lab and more
Color Difference Formulas	ΔE*ab, ΔE94, ΔE00, ΔECMC, ΔECH, Hunter ΔE
Other Parameters	Whiteness Index (WI), Yellowness Index (YI), Metamerism Index (MI), Contrast Ratio (CR)
UV Correction	Yes
Reflectance Range	0–200%
Resolution	0.001%
Spectral Repeatability	Standard Deviation < 0.05%
Color Repeatability	ΔE*ab < 0.005 (30 measurements of calibrated white tile at 10-second intervals)
Imaging Positioning	Yes
Auto Zoom	Yes
Touch Screen	Large Integrated Display
Calibration	Built-in Zero & White Calibration
Software	Color Analysis, Reflectance, Transmittance, Opacity & Statistical Analysis

Typical Applications
The HACA-3800 is suitable for color measurement and quality control in:
• Plastics and Polymer Manufacturing
• Paints and Coatings
• Printing and Packaging
• Textile and Dyeing Industry
• Glass Manufacturing
• Liquid Color Analysis
• Ink Production
• Rubber Industry
• Ceramics
• Food and Beverage
• Cosmetics
• Pharmaceutical Industry
• Automotive Components
• Consumer Electronics
• Universities and Research Laboratories

Why Choose the HACA-3800?

Feature	HACA-3800	Conventional Color Meter
Spectral Reflectance Measurement	✔	Limited
Spectral Transmittance Measurement	✔	Optional or Not Available
SCI / SCE Modes	✔	Limited
Repeatability ΔE*ab < 0.005	✔	Typically ≥0.02
Imaging Positioning	✔	Usually Not Available
Automatic Zoom	✔	No
UV Correction	✔	Rare
Dark Material Performance	Excellent	Moderate
Large Transmission Chamber	✔	Limited
Standalone Touch Screen Operation	✔	Usually Requires PC
Professional Color Analysis Software	✔	Basic

Frequently Asked Questions (FAQ)
What materials can the HACA-3800 measure?
It measures both opaque and transparent materials, including plastics, coatings, textiles, dyes, glass, liquids, paper, inks, films, ceramics, and many other industrial materials.
What is the advantage of SCI and SCE measurement?
SCI includes the specular reflection component, making it suitable for objective color evaluation, while SCE excludes surface gloss, providing results closer to human visual perception.
Why is UV correction important?
UV correction improves the accuracy of measuring fluorescent whitening agents commonly used in paper, textiles, plastics, and coatings by controlling the UV component of the light source.
How accurate is the instrument?
The HACA-3800 achieves industry-leading repeatability of ΔE*ab < 0.005, making it suitable for demanding laboratory research and precision color matching applications.
Can it perform both reflection and transmission measurements?
Yes. The instrument integrates both functions in one platform, reducing equipment investment while expanding measurement capability.
Does it require an external computer?
No. The large built-in touch screen allows calibration, measurement, data viewing, and basic analysis directly on the instrument. Dedicated software is also available for advanced reporting and statistical analysis.

Industries Served
• Color Quality Control Laboratories
• Plastic Manufacturing
• Textile Mills
• Printing Companies
• Paint & Coating Manufacturers
• Glass Industry
• Packaging Manufacturers
• Automotive Suppliers
• Electronics Manufacturing
• Pharmaceutical Laboratories
• Research Institutes
• Universities
• Third-Party Testing Laboratories

Conclusion
The HACA-3800 High-Precision Spectrophotometer combines advanced spectral measurement technology, exceptional repeatability, reflection and transmission capabilities, UV correction, imaging-assisted positioning, and comprehensive color analysis into a single professional instrument. Designed for laboratories and industrial quality control, it provides reliable, standards-compliant color measurements that improve product consistency, accelerate color development, and ensure accurate color communication across multiple industries.

Frequently Asked Questions (FAQ)
What materials can the HACA-3800 measure?
It measures both opaque and transparent materials, including plastics, coatings, textiles, dyes, glass, liquids, paper, inks, films, ceramics, and many other industrial materials.
What is the advantage of SCI and SCE measurement?
SCI includes the specular reflection component, making it suitable for objective color evaluation, while SCE excludes surface gloss, providing results closer to human visual perception.
Why is UV correction important?
UV correction improves the accuracy of measuring fluorescent whitening agents commonly used in paper, textiles, plastics, and coatings by controlling the UV component of the light source.
How accurate is the instrument?
The HACA-3800 achieves industry-leading repeatability of ΔE*ab < 0.005, making it suitable for demanding laboratory research and precision color matching applications.
Can it perform both reflection and transmission measurements?
Yes. The instrument integrates both functions in one platform, reducing equipment investment while expanding measurement capability.
Does it require an external computer?
No. The large built-in touch screen allows calibration, measurement, data viewing, and basic analysis directly on the instrument. Dedicated software is also available for advanced reporting and statistical analysis.
