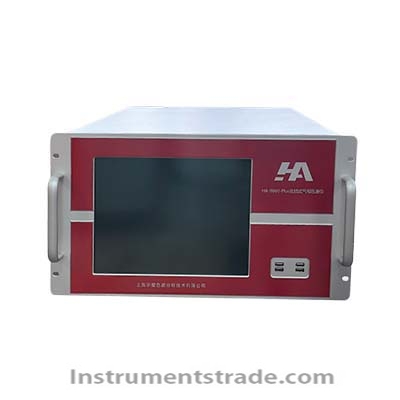

HA-9660-PDD online gas analyzer

Product ID:GYSP002

US$0.00 ~ US$1.00 PDF Format
Supply Ability:20 SETS/MONTH
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberHA-9660-PDD
    Brand NameSHHA
    Payment TermsT/T, paypal
    Introduction:
    HA-9660-PDD online gas analyzer is a new generation product of Shanghai Huaai Chromatography Analysis Technology Co., Ltd. It is equipped with ultra-high sensitivity pulse discharge helium ionization detector (PDHID), suitable for high-purity gas ppb-level traces. On-line analysis of impurities; the instrument comes standard with embedded computer control system, and the built-in analysis software can easily realize instrument control, sample analysis and data transmission; it can realize 19′′ standard cabinet installation or laboratory application. analysis.
    Application areas: air separation plant; process control; steel industry; low temperature tank filling station; special gas laboratory; aerospace; photovoltaic industry; chlor-alkali industry; coal chemical industry;
    Method standard:
    GB/T 28726-2012 "Gas Analysis, Helium Ionization Gas Chromatography"
    GB/T 28125.1-2011 "Determination of dangerous substances in air separation process - Part 1: Determination of hydrocarbons"
    Technical Parameters:
    Control method: embedded industrial computer
    Detector type: Pulse discharge ionization detector (PDHID)
    Lower range limit: 5ppb
    Drift / repeatability: ±1%~±5%
    Sample gas flow: 50ml/min
    Sample gas pressure: 0.1MPa
    Sample gas interface: 1/4 Swagelok SS
    Carrier gas type: He
    Carrier gas interface: 1/8 Swagelok SS
    Carrier gas flow rate: 100ml/min
    Carrier gas pressure: 0.4 MPa
    Display: LED
    Power supply: AC220V, 50~60Hz
    Power: 400W
    Weight: 20Kg
    Size: Standard 5U rack housing 482mm*222mm*400mm
    Carrier gas and sample gas flow control: electronic monitoring
    Communication interface: RS-232/485
    Communication protocol: modbus

  • Introduction:
    HA-9660-PDD online gas analyzer is a new generation product of Shanghai Huaai Chromatography Analysis Technology Co., Ltd. It is equipped with ultra-high sensitivity pulse discharge helium ionization detector (PDHID), suitable for high-purity gas ppb-level traces. On-line analysis of impurities; the instrument comes standard with embedded computer control system, and the built-in analysis software can easily realize instrument control, sample analysis and data transmission; it can realize 19′′ standard cabinet installation or laboratory application. analysis.
    Application areas: air separation plant; process control; steel industry; low temperature tank filling station; special gas laboratory; aerospace; photovoltaic industry; chlor-alkali industry; coal chemical industry;
