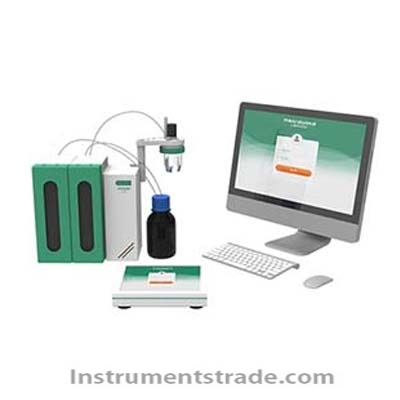

GT70 Fully Automatic Potentiometric Titrator

Position: Home > > Analytical instruments > Electrochemical Equipment > Potentiometric titration > GT70 Fully Automatic Potentiometric Titrator

GT70 Fully Automatic Potentiometric Titrator

Product ID：FDdd042

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGT70

Brand NameSHZHUOGUANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

GT70 Fully Automatic Potentiometric Titrator
Product Overview
The GT70 Fully Automatic Potentiometric Titrator is designed for automated quantitative analysis using potentiometric endpoint detection. It supports acid-base, redox, precipitation, complexometric and non-aqueous titration methods, making it suitable for routine laboratory analysis in pharmaceutical, chemical, food, environmental and research applications.
The system provides high-precision closed-loop dosing control with a dosing resolution of 1 μL. It can automatically perform sample loading, titration, cleaning, result calculation, data recording and titration curve generation, reducing manual operation and improving measurement consistency.

Key Features
• Supports acid-base, redox, precipitation, complexometric and non-aqueous titration
• Two built-in titration dosing channels, expandable to up to 8 channels
• 1 μL dosing resolution with high-precision closed-loop control
• Corrosion-resistant PTFE tubing and imported PTFE rotary valves for acid and alkali titration
• Automatic instrument self-check, sample loading, pipeline cleaning and result recording
• Real-time display of titration curves and measurement results
• Automatic generation of pH–titrant volume curves
• Multi-level user management, audit trail and electronic signature functions for regulated laboratories

Working Principle
The GT70 determines the titration endpoint by continuously measuring the potential or pH of the sample during titrant addition. According to the selected titration method, the instrument precisely delivers the titrant through a motorized dosing unit while monitoring the electrode response.
The system can perform endpoint titration, equivalence-point titration and dynamic titration. Measurement data are processed automatically to determine the endpoint and calculate the final analytical result. The real-time titration curve allows users to monitor changes in pH or potential throughout the titration process.

Technical Specifications

Parameter	Specification
Model	GT70
Measurement Range	-2000.0 to +2000.0 mV; -20.000 to +20.000 pH
Resolution	0.1 mV; 0.001 pH
Accuracy	±0.1 mV; ±0.003 pH
Measurement Modes	MEAS: pH/mV/T measurement; CAL: multi-point pH calibration; SET: endpoint mode; MET: equivalence-point titration; DET: dynamic titration
Titration Modes	Acid-base, redox, precipitation, complexometric and non-aqueous titration
Temperature Measurement Range	-5 to 120°C
Temperature Accuracy	±0.1°C
Communication Interfaces	2 × USB, RS-232, Ethernet
Dosing Unit	Built-in dosing unit
Standard Dosing Channels	2 built-in titration dosing channels
Expandable Dosing Channels	Up to 8 channels
Titration Burette Sizes	1 mL, 5 mL, 10 mL, 25 mL, 50 mL; 10 mL standard
Burette Resolution	1/48,000
Burette Refill Time	10 seconds at 100% filling speed
Control Unit	PC with software; PC supplied separately
Automatic Sampler	Compatible with GT robotic sampling system for high-throughput analysis
Self-Check	Automatic instrument status check at startup
Calibration	Supported
Method Editing	Supported
Storage Capacity	More than 300 GB; more than 10,000 records
Preset Methods	More than 10,000 methods
Compliance Functions	FDA/GMP/GLP-oriented audit trail, hierarchical user management and electronic signatures
Tubing	Corrosion-resistant PTFE titration tubing
Stirring	Top-mounted spiral stirrer or magnetic stirring
PTFE Valve	Imported corrosion-resistant rotary valve
Micro Detection Electrode	Imported
Micro Syringe Pump	Imported
Automatic Operation	Automatic sampling, titration, cleaning, result calculation and data recording

Applications
• Acid-base titration: Determination of oxalic acid content in aqueous or non-aqueous systems
• Redox titration: Iodine value and iron(II) content determination
• Precipitation titration: Chloride content determination
• Complexometric titration: Calcium determination using polarized electrodes (Ipol/Upol)
• Pharmaceutical quality control and laboratory analysis
• Chemical and material testing
• Food and beverage analysis
• Environmental and research laboratories

Applicable Standards
• Designed with functions supporting GMP and GLP laboratory requirements
• Supports audit trails, hierarchical user permissions and electronic signatures
• Designed to meet relevant requirements of the 2015 edition of the Chinese Pharmacopoeia
• Specific analytical methods and regulatory requirements should be selected according to the sample and application

Comparison

Feature	GT70 Fully Automatic Potentiometric Titrator	Manual Potentiometric Titration	Basic Automatic Titrator
Titrant Dosing	Automatic precision dosing	Manual or semi-manual	Automatic
Dosing Resolution	1 μL	Operator-dependent	Model-dependent
Titration Methods	Acid-base, redox, precipitation, complexometric, non-aqueous	Method-dependent	Usually several common methods
Dosing Channels	2 standard, up to 8 expandable	Usually 1	Usually 1–2
Automatic Sampling	Supported with robotic sampler	No	Model-dependent
Automatic Cleaning	Supported	Manual	Model-dependent
Real-Time Titration Curve	Supported	Requires manual recording/software	Usually supported
Data Management	Audit trail, user hierarchy and electronic signatures	Limited	Model-dependent
High-Throughput Analysis	Suitable	Limited	Suitable depending on configuration

FAQ
Q1: What types of titration can the GT70 perform?
The GT70 supports acid-base, redox, precipitation, complexometric and non-aqueous titration.
Q2: What is the dosing resolution of the GT70?
The titrant dosing resolution is 1 μL, while the burette resolution is specified as 1/48,000.
Q3: How many titration channels are available?
Two dosing channels are included as standard, with the system expandable to up to 8 dosing channels.
Q4: Can the GT70 perform automatic sample analysis?
Yes. The GT70 can work with a GT robotic sampling system for automated, high-throughput sample analysis.
Q5: Does the instrument automatically clean the titration lines?
Yes. Automatic pipeline cleaning is supported as part of the automated workflow.
Q6: What pH and mV ranges can be measured?
The measurement range is -20.000 to +20.000 pH and -2000.0 to +2000.0 mV, with resolutions of 0.001 pH and 0.1 mV.
Q7: Is the GT70 suitable for regulated laboratories?
The system provides audit trail, hierarchical user management and electronic signature functions and is designed to support GMP and GLP requirements.
Q8: What burette sizes are available?
Burettes are available in 1, 5, 10, 25 and 50 mL sizes, with a 10 mL burette supplied as standard.
