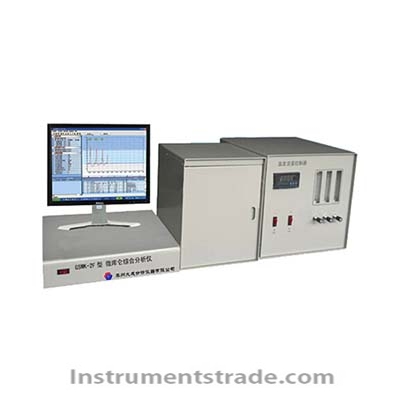

GSWK-2F Microcoulometric Comprehensive Analyzer for Sulfur and Chlorine Analysis

Product ID：FDkl002

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGSWK - 2 F

Brand NameTZDACHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

GSWK-2F Microcoulometric Comprehensive Analyzer for Sulfur and Chlorine Analysis

Product Overview
The GSWK-2F Microcoulometric Comprehensive Analyzer is an upgraded microcoulometric analysis instrument developed from the WK-2E series. It provides improved detection limits, repeatability, stability, and reliability in a more compact instrument design.
The analyzer supports liquid, gas, and solid sample analysis through different optional sample injectors and is particularly suitable for sulfur and chlorine determination in petroleum, chemical, metallurgical, and research applications. Automatic sample injection and computer-controlled analysis help simplify routine testing and improve laboratory efficiency.

Key Features
• Improved detection limits and repeatability compared with the previous WK-2E model.
• Supports analysis of liquid, gas, and solid samples with optional sample injectors.
• Sulfur detection limit down to 0.05 mg/L and chlorine detection limit down to 0.1 mg/L for liquid samples.
• Supports automatic liquid sample injection and automatic analysis initiation from either the computer or injector.
• Adjustable process parameters for analysis of different or challenging sample types.
• Windows-based Chinese/English software with historical data and curve playback for comparative analysis.
• USB interface, Access database, and LIMS connectivity for data management and laboratory integration.
• Compact design with temperature control from room temperature to 1100°C.

Working Principle
The GSWK-2F uses microcoulometric analysis to determine the concentration of target components based on the amount of electricity required for an electrochemical reaction.
During analysis, the sample is introduced into the system through an appropriate liquid, gas, or solid sample injector. Target components such as sulfur or chlorine are converted into electrochemically detectable species in the reaction system. The instrument measures the corresponding electrochemical response and calculates the analyte concentration from the electrical charge consumed during the reaction.
The computer-controlled system can automatically manage sample injection, analysis, data processing, and historical data storage, reducing manual intervention during routine measurements.

Technical Specifications

Parameter	Specification
Instrument Type	Microcoulometric Comprehensive Analyzer
Sample Types	Liquid, Gas, Solid
Bias Voltage Range	0–500 mV
Sulfur Measurement Range	0.05–5000 mg/L (liquid sample)
Chlorine Measurement Range	0.1–5000 mg/L (liquid sample)
Sulfur Repeatability, <1.0 mg/L	<0.1 mg/L
Sulfur Repeatability, 1–10 mg/L	<8%
Sulfur Repeatability, >10 mg/L	<3%
Temperature Control Range	Room temperature to 1100°C
Data Interface	USB
Database	Access
LIMS Support	Yes
Software Languages	Chinese / English
Sample Injection	Automatic injection available for liquid samples

Applications
The GSWK-2F is widely used for analytical testing and research in:
• Petroleum and petrochemical industries
• Chemical production and quality control
• Metallurgical laboratories
• Universities and research institutes
• Fuel and petroleum product analysis
• Sulfur and chlorine determination in liquid samples
• Analysis of gaseous and solid samples with suitable optional injectors
• Laboratory research requiring low-level sulfur or chlorine measurement

Applicable Standards
The GSWK-2F is designed for microcoulometric determination of sulfur and chlorine. The applicable testing standard should be selected according to the sample matrix, analyte, concentration range, and laboratory method requirements.

Comparison

Feature	GSWK-2F Microcoulometric Analyzer	Conventional Microcoulometric Analyzer	General Sulfur/Chlorine Analyzer
Sulfur Analysis	Yes	Yes	Yes
Chlorine Analysis	Yes	Model dependent	Yes
Liquid Samples	Yes	Yes	Yes
Gas Samples	Yes	Model dependent	Model dependent
Solid Samples	Yes	Model dependent	Model dependent
Sulfur Detection Limit	0.05 mg/L	Model dependent	Model dependent
Chlorine Detection Limit	0.1 mg/L	Model dependent	Model dependent
Automatic Liquid Injection	Yes	Model dependent	Usually available
Adjustable Process Parameters	Yes	Limited	Model dependent
Historical Curve Playback	Yes	Limited	Model dependent
USB Interface	Yes	Model dependent	Usually available
LIMS Connectivity	Yes	Model dependent	Model dependent
Temperature Control	Room temperature–1100°C	Model dependent	Model dependent

FAQ
Q1: What can the GSWK-2F analyze?
A: It is mainly designed for microcoulometric analysis of sulfur and chlorine, with support for liquid, gas, and solid samples using suitable sample injectors.
Q2: What is the sulfur detection limit?
A: For liquid samples, the sulfur measurement range starts at 0.05 mg/L.
Q3: What is the chlorine detection limit?
A: For liquid samples, the chlorine measurement range starts at 0.1 mg/L.
Q4: Can the analyzer test solid and gas samples?
A: Yes. Different optional sample injectors can be selected for liquid, gas, and solid sample analysis.
Q5: Does the GSWK-2F support automatic injection?
A: Yes. During liquid sample analysis, automatic injection and automatic analysis initiation are supported. Analysis can be started through the computer or the sample injector.
Q6: Can test data be exported and managed on a computer?
A: Yes. The instrument provides a USB interface, and historical parameters, data, and curves can be managed through the software and Access database.
Q7: Can the GSWK-2F connect to a LIMS system?
A: Yes. The analyzer supports connection with LIMS systems for laboratory data integration.
Q8: What is the maximum temperature control range?
A: The temperature control range is from room temperature to 1100°C, allowing the instrument to accommodate different analytical processes and sample types.
