GH-D electronic thickness gauge

Product ID：WCHqtOther002

Price: Please inquire PDF Format

Supply Ability:40 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGH-D

Brand NameGUANGZHOUBIAOJI

Payment TermsT/T, paypal

GH-D electronic thickness gauge
Introduction

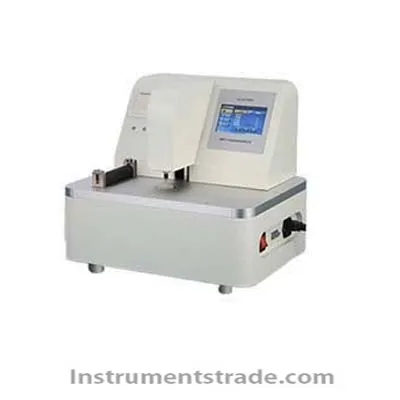

GH-D electronic thickness gauge is a high-precision digital thickness gauge integrating light, machine, electricity and calculation, which is easy to operate. The measurement result is a digital display. And you can connect to a computer for automatic control. It is mainly used for thickness measurement or comparative measurement of plastic film, paper and other materials.
Execution standards: ISO 4593, ISO 534, ISO 3034, GB/T 6672, GB/T 451.3, GB/T 6547, ASTM D645, ASTM F 2251, ASTM D374, ASTM D1777, TAPPI T411, DIN 53105, DIN 53353, JIS K6250 , JIS K 6328, JIS K6783, JIS Z1702, BS 3983, BS 4817
Features
1. High precision (0.1μm), digital display, stable, easy to operate.
2. Measuring mode: manual and automatic.
3. Single point and multiple points measurement.
4. Can adjust sampling space and number of test points.
5. LCD display, can print report.
6. Real time display of max, min, average and current values.
7. Can connect to computer, program controlled, automatic, software supported (optional).
Technical parameters

Measuring range	0~1.5mm
Accuracy	0.1μm
Sampling space	0~1000mm
Number of test points	0~10 points
Measuring force	0.5N
Sensor stick size	Φ5mm (can customize)
Environment temperature	0~40℃
Power supply	220V 50Hz
Instrument size	380x360x720mm

Introduction
GH-D electronic thickness gauge is a high-precision digital thickness gauge integrating light, machine, electricity and calculation, which is easy to operate. The measurement result is a digital display. And you can connect to a computer for automatic control. It is mainly used for thickness measurement or comparative measurement of plastic film, paper and other materials.
Execution standards: ISO 4593, ISO 534, ISO 3034, GB/T 6672, GB/T 451.3, GB/T 6547, ASTM D645, ASTM F 2251, ASTM D374, ASTM D1777, TAPPI T411, DIN 53105, DIN 53353, JIS K6250 , JIS K 6328, JIS K6783, JIS Z1702, BS 3983, BS 4817
