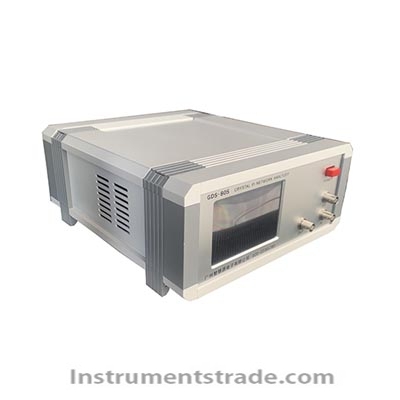

GDS-80S Crystal Oscillator Network Analyzer

Position: Home > > Measurement instrument > Other measuring/measurement instrument > Time frequency measurement instrument > GDS-80S Crystal Oscillator Network Analyzer

GDS-80S Crystal Oscillator Network Analyzer

Product ID：CLQTsjpljly041

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberGDS-80S

Brand NameGZZHIHUIYUAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

GDS-80S Crystal Oscillator Network Analyzer
Product Overview
The GDS-80S Crystal Oscillator Network Analyzer is a cost-effective crystal testing system designed for high-precision measurement and analysis of quartz crystal electrical parameters. It adopts advanced network analysis technology to achieve intelligent and efficient measurement and complies with relevant IEC 444 standards.
The GDS-80S supports two frequency ranges, 10 kHz–200 kHz and 1 MHz–100 MHz, and uses a π-network zero-phase method to measure series resonance frequency. A direct impedance measurement method is used to determine load resonance frequency and load capacitance.
The instrument can measure multiple important crystal parameters, including series resonance frequency Fr, load resonance frequency FL, series resonance resistance Rr, load resonance resistance RL, load capacitance CL, dynamic capacitance C1, dynamic inductance L1, quality factor Q, shunt capacitance C0, and frequency pulling capability Ts.
The load capacitance can be freely programmed from 1 pF to 200 pF, allowing the instrument to test crystals under different load capacitance conditions. Intelligent network analysis and calculation technology eliminates the limitations of conventional physical capacitor testing methods, reduces measurement errors, and minimizes the need for manual calibration.

Key Features
• High-precision crystal parameter measurement using advanced network analysis technology
• Supports measurement of multiple crystal electrical parameters
• Impedance value and ppm value can be displayed simultaneously
• No manual calibration required for routine testing
• Programmable load capacitance from 1 pF to 200 pF
• Supports crystal testing across 10 kHz–200 kHz and 1 MHz–100 MHz frequency ranges
• Uses the π-network zero-phase method for series resonance frequency measurement
• Uses the direct impedance method for load resonance frequency and load capacitance measurement
• Fast measurement speed and high testing efficiency
• LCD display for clear measurement results
• Touchscreen interface for convenient operation
• USB interface for data communication
• Complies with relevant IEC 444 measurement standards
• Suitable as a cost-effective alternative to imported crystal testing equipment

Working Principle
The GDS-80S Crystal Oscillator Network Analyzer uses network analysis technology to determine the electrical characteristics of quartz crystal resonators.
For series resonance frequency Fr, the instrument uses the π-network zero-phase method. By analyzing the phase characteristics of the crystal under test, the system identifies the resonance point and determines the series resonance frequency and corresponding equivalent resistance.
For load resonance frequency FL and load capacitance CL, the instrument adopts a direct impedance measurement method combined with intelligent network analysis and calculation. The user can program the required load capacitance between 1 pF and 200 pF, enabling crystal parameters to be evaluated under different load conditions.
Compared with conventional testing methods using physical capacitors, the network analysis approach provides greater flexibility, reduces the influence of external components, improves measurement accuracy, and eliminates complicated manual correction procedures.

Applicable Standards
The GDS-80S is designed according to the following standards:
• SJ/Z 9154.1-87 / IEC 444-1:1989 — Measurement of Quartz Crystal Unit Parameters by the π-Network Zero Phase Technique — Part 1: Basic Method for Measuring Resonance Frequency and Resonance Resistance
• SJ/Z 9154.2-87 / IEC 444-2:1980 — Measurement of Quartz Crystal Unit Parameters by the π-Network Zero Phase Technique — Part 2: Phase Offset Method for Measuring Dynamic Capacitance
• GB/T 22319.11-2018 / IEC 60444-11:2010 — Measurement of Quartz Crystal Unit Parameters — Part 11: Standard Method for Determining Load Resonance Frequency and Effective Load Capacitance Using Automatic Network Analysis Techniques and Error Correction

Technical Specifications

Parameter	Specification
Model	GDS-80S
Center Frequency Range	10 kHz–200 kHz; 1 MHz–100 MHz
Load Resonance Frequency FL Test Range	±400 ppm
FL Test Accuracy	±5 ppm
Programmable Load Capacitance CL	1–200 pF, freely settable
Load Capacitance CL Test Range	1–200 pF
CL Test Accuracy	±1 pF
Equivalent Resistance Rr Test Range	10 kHz–200 kHz: 10 kΩ–300 kΩ
	1 MHz–100 MHz: 1 Ω–1000 Ω
Equivalent Resistance Rr Test Accuracy	10 kHz–200 kHz: ±10% ±2 kΩ
	1 MHz–100 MHz: ±10% ±2 Ω
Time Base Frequency	26 MHz
Crystal Stability	5 × 10⁻⁷/day
Display	LCD
Operation	Touchscreen
Data Communication	USB
Dimensions	120 mm × 230 mm × 260 mm
Power Consumption	20 W

Measurable Parameters
The GDS-80S can measure and analyze a comprehensive range of quartz crystal parameters:
• Series resonance frequency (Fr)
• Load resonance frequency (FL)
• Series resonance resistance (Rr)
• Load resonance resistance (RL)
• Load capacitance (CL)
• Dynamic capacitance (C1)
• Dynamic inductance (L1)
• Quality factor (Q)
• Shunt capacitance (C0)
• Frequency pulling capability (Ts)

Applications
The GDS-80S Crystal Oscillator Network Analyzer is suitable for research, development, production testing and quality control of quartz crystal resonators and crystal oscillator components.
Typical applications include:
• Quartz crystal resonator testing
• Crystal oscillator component testing
• Crystal frequency measurement
• Crystal impedance measurement
• Load capacitance characterization
• Crystal electrical parameter analysis
• Incoming inspection of electronic components
• Production-line quality control
• R&D and laboratory testing
• Verification of quartz crystal device performance

Application Scenarios
Quartz Crystal Manufacturing
The GDS-80S can be used for production testing of quartz crystal resonators, including resonance frequency, equivalent resistance, load capacitance and other electrical parameters.
R&D Laboratories
The instrument provides multiple electrical parameter measurements for research and development of quartz crystal resonators, crystal oscillators and frequency-control components.
Incoming Quality Inspection
Manufacturers can use the analyzer to verify the electrical specifications of purchased crystal components before they enter the production process.
Production Quality Control
Fast and intelligent measurement allows the GDS-80S to be used for process monitoring, batch inspection and quality control of crystal components.

GDS-80S vs. Conventional Crystal Testing Methods

Feature	GDS-80S Network Analysis Method	Conventional Physical Capacitor Method
Measurement Method	Intelligent network analysis	Physical capacitor testing
Load Capacitance	1–200 pF programmable	Depends on external capacitor
Parameter Measurement	Multiple parameters	Relatively limited
Manual Calibration	Not normally required	May require manual correction
FL Measurement	Network analysis based	More dependent on external circuit
Measurement Efficiency	High	Relatively lower
Testing Flexibility	High	Limited by external components
Data Communication	USB supported	Depends on equipment

The GDS-80S provides a more flexible and automated solution than conventional physical capacitor-based crystal testing methods. Its programmable load capacitance, intelligent network analysis and multi-parameter measurement capability make it suitable for both laboratory characterization and production quality control.

FAQ
What is the GDS-80S Crystal Oscillator Network Analyzer used for?
The GDS-80S is used to test and analyze the electrical parameters of quartz crystal resonators and crystal oscillator components, including resonance frequency, equivalent resistance, load capacitance, dynamic capacitance, dynamic inductance and quality factor.
What frequency range does the GDS-80S support?
The analyzer supports two frequency ranges: 10 kHz–200 kHz and 1 MHz–100 MHz.
What is the load capacitance range of the GDS-80S?
The load capacitance can be freely programmed from 1 pF to 200 pF, allowing crystals to be tested under different load conditions.
What is the FL measurement accuracy?
The FL measurement accuracy is ±5 ppm, with a measurement range of ±400 ppm.
Can the GDS-80S measure crystal equivalent resistance?
Yes. The instrument measures equivalent series resistance Rr. The measurement range is 10 kΩ–300 kΩ for 10 kHz–200 kHz and 1 Ω–1000 Ω for 1 MHz–100 MHz.
Does the GDS-80S require manual calibration?
The analyzer uses intelligent network analysis technology to reduce the need for manual calibration and correction during routine crystal testing.
What standards does the GDS-80S comply with?
The GDS-80S is designed according to relevant requirements of IEC 444-1, IEC 444-2 and IEC 60444-11, as well as the corresponding Chinese standards.
Does the GDS-80S support USB communication?
Yes. The instrument is equipped with a USB interface for data communication.
Is the GDS-80S suitable for production testing?
Yes. Its fast measurement speed, programmable load capacitance, automatic network analysis and multi-parameter measurement functions make it suitable for crystal component production testing and quality control.
