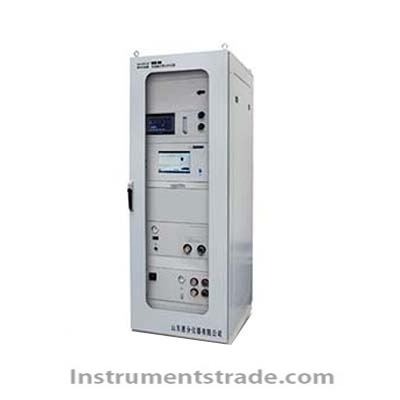

GCS-60 Online Sulfide Analyzer for Natural gas analysis

Product ID:FYtl031

US$0.00 ~ US$1.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberGCS-60
    Brand NameSHANDONGHUIFEN
    Payment TermsTT,PAYPAL
    GCS-60 Online Sulfide Analyzer

    Introduction:
    GCS-60 online sulfide analyzer is mainly used for the analysis of sulfide content in natural gas, coke oven gas, blast furnace gas, refinery gas and other gases. It can optimize product quality, save energy and reduce consumption, so as to achieve optimized control of the production process and improve Production process equipment and personal safety. This equipment is widely used in petroleum, mining, new energy, electric power, building materials, chemical and other industries, ensuring the high-performance price ratio of the device, allowing users to obtain high-quality and high-performance with minimal investment The complete set of online analysis and control system has been recognized and endorsed by many companies.
    Features:
    1. Equipped with high-sensitivity FPD detector, in line with national standards. The design is reasonable, the analysis period is short, the measurement is accurate, and continuous automatic monitoring can be realized.
    2. The sampling pipeline is heated with constant temperature throughout the whole process, which effectively solves the problem of condensation loss of samples under high temperature and high humidity gas occasions, and provides more accurate test results.
    3. Automatic recovery function, automatic recovery after an unexpected power failure, start-up, gas supply, automatic high pressure, automatic sampling and other functions.
    4. It adopts a large 10-inch color touch screen, built-in system control software, self-developed operation interface, humanized design, simple interface and easy operation.
    5. Equipped with imported high temperature resistant automatic valve control system, micro gas path cutting technology, high sensitivity, miniaturized special trace sulfur detector.
    technical parameter:
    Working voltage: 200240V 50/60Hz
    Ambient temperature: 0~+45
    Environmental humidity: ≤90%RH
    Warm-up time: ≤35min
    Sample gas flow: 100±50mL/min
    Inlet pressure: ≤0.4Mpa
    Filtration accuracy: <5um
    Detection limit: ≤2*10-12g/s
    Detection interval: 0-2000ppm (hydrogen sulfide)
    Baseline drift: ≤0.1mv/h
    Output signal: 420mA
    Communication mode: RS232 or RS485 (communication protocol: Modbus RTU)
  • Introduction:
    GCS-60 online sulfide analyzer is mainly used for the analysis of sulfide content in natural gas, coke oven gas, blast furnace gas, refinery gas and other gases. It can optimize product quality, save energy and reduce consumption, so as to achieve optimized control of the production process and improve Production process equipment and personal safety. This equipment is widely used in petroleum, mining, new energy, electric power, building materials, chemical and other industries, ensuring the high-performance price ratio of the device, allowing users to obtain high-quality and high-performance with minimal investment The complete set of online analysis and control system has been recognized and endorsed by many companies.
