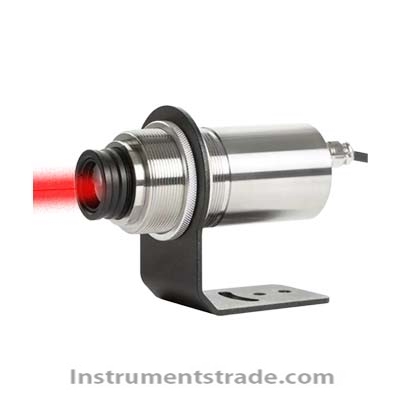

FD-TR series infrared thermometer Introduction: The FD-TR series infrared thermometer features precise laser aiming capabilities; it comes with an LCD display window that shows the current measured temperature and allows for on-site parameter settings. Users can easily align the measurement target and select the optimal measurement distance. It provides users with a convenient and highly reliable measurement method. Application areas: Medium and low temperature target and environmental detection: temperature measurement and monitoring for tobacco, food, plastics, packaging, textiles, electricity, petrochemicals, coal, etc Metal processing and heat treatment: welding, forging, annealing, quenching, hot stamping, vacuum furnace, high-frequency heating, etc Semiconductor: polysilicon, monocrystalline silicon crystal pulling, melting, annealing, furnace temperature control, etc Steel and non-ferrous metals: smelting, bar and plate production, hot rolling, wire rod, wire, galvanizing, tin plating, hot blast stove, coke oven, sintering, etc Printing, papermaking, glass, refractory materials, furnaces and kilns: temperature measurement and control of medium and high temperature objects during production processes Features: The casing of the thermometer is made of 304 stainless steel, which has strong resistance to electromagnetic interference and can be replaced. 2. LCD temperature display with background light, on-site emissivity adjustment 3. Maximum distance coefficient of 200:1, with a minimum measurable diameter of < 0.8mm 4. Focal length adjustment is available for medium and high temperature products 5. Laser indication and measurement of azimuth 6. The light spot indicates the optimal measurement position 7. The sturdy and durable housing meets IP65 (NEMA4) standards 8. RS485 digital output is optional. External laser control function is optional 9. The multifunction button setting mode is optional (peak value, average value, output range, etc. can be set on-site) Technical Specifications: Measurement accuracy: ±0.75%FS Repeatability: 0.5% Emissivity: 0.100 - 1.099, step size 0.001 Signal processing: average, peak value, output range, etc. (customizable multi-function button setting mode) Resolution: 1℃ Response time: <10ms Optical parameters: Detector: Indium, Silicon Measuring distance: 0.3m-∞ Distance coefficient: 200:1 Measurable minimum target: 6mm Electrical parameters: Power supply: 24VDC (±20%, 150mA) Analog output: 0-5V / 0-20mA / 4-20mA Digital output: RS485 (standard configuration) Power consumption: <1.2W Insulation voltage: ≤500VAC Output impedance: Maximum loop impedance of 500Ω (24VDC) Ambient temperature: <60℃ Relative humidity: 10-95%, non-condensing, 25-45℃ Physical dimensions: Φ50×145mm Weight: 390g
FD-TR series infrared thermometer Introduction: The FD-TR series infrared thermometer features precise laser aiming capabilities; it comes with an LCD display window that shows the current measured temperature and allows for on-site parameter settings. Users can easily align the measurement target and select the optimal measurement distance. It provides users with a convenient and highly reliable measurement method.
