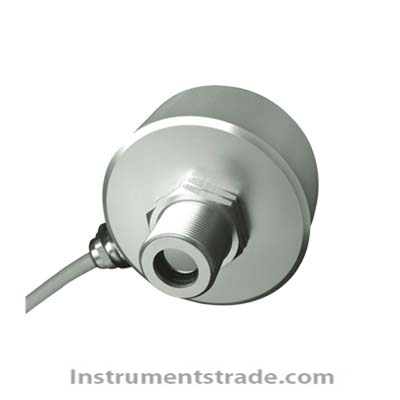

FD-F11 series online infrared thermometer Features: 1. The thermometer adopts a die-cast aluminum housing, which is compact, more durable, and has strong anti-electromagnetic interference capability. 2. Equipped with protection functions against power supply reversal, signal short circuit, etc. 3. The compact and exquisite casing makes installation more convenient, and the two-wire wiring method simplifies operation 4. Multiple temperature ranges from 0-500℃ can be freely customized 5. The product is a universal thermometer that can be freely applied to various industries such as electricity, heating furnaces, paper making, cables, hardware, steel, plastics, rubber, food, tobacco, composite materials, etc Technical Specifications: Measuring temperature range and response wavelength: FD-F11 0-500℃ 8-14μm (electric power, paper making, heating furnace) Measurement accuracy: ±1%FS Repeatability: 0.5% Resolution: 1℃ Response time: <300ms Optical parameters: Detector: thermopile Wavelength: 8-14μm Distance coefficient: 20:1 Measurable minimum target: 8mm Electrical parameters: Power supply: 24VDC (±20%, 150mA) Analog output: 4-20mA Power consumption: <6.6W Insulation voltage: ≤500VAC Load capacity: ≤300Ω Ambient temperature: <60℃ Relative humidity: 10-95%, non-condensing 25-45℃ Physical dimensions: 30mm × 59.5mm × 22.5 (thread length) Weight: 120g
FD-F11 series online infrared thermometer Features: 1. The thermometer adopts a die-cast aluminum housing, which is compact, more durable, and has strong anti-electromagnetic interference capability. 2. Equipped with protection functions against power supply reversal, signal short circuit, etc. 3. The compact and exquisite casing makes installation more convenient, and the two-wire wiring method simplifies operation 4. Multiple temperature ranges from 0-500℃ can be freely customized 5. The product is a universal thermometer that can be freely applied to various industries such as electricity, heating furnaces, paper making, cables, hardware, steel, plastics, rubber, food, tobacco, composite materials, etc
