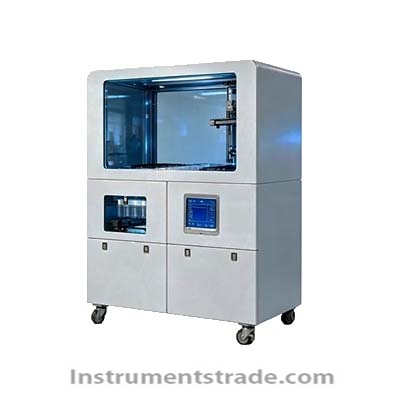

FAE-001 Fully Automatic Soil Extraction System
Product Overview
The FAE-001 Fully Automatic Soil Extraction System is an automated sample pretreatment instrument designed for agricultural soil testing. It integrates extractant dispensing, temperature control, shaking, and filtration into a single automated workflow, significantly reducing manual operations and improving the efficiency and consistency of soil sample extraction.
Soil extraction is a critical pretreatment step for many agricultural soil testing indicators, including organic matter and available nutrients. Although different testing methods may require different extractants, extraction times, temperatures, and operating conditions, the basic workflow is highly consistent.
Traditional manual extraction involves multiple repetitive operations, including reagent addition, timing, temperature control, shaking, and filtration. These procedures are labor-intensive and can introduce variations between operators and batches.
The FAE-001 automates these key steps and supports simultaneous filtration of the entire batch, helping maintain consistent extraction and filtration times while improving laboratory productivity.

Key Features
• High-Throughput Batch Processing
Supports up to 40 samples per batch, significantly increasing sample pretreatment capacity for routine soil testing.
• Fully Automated Workflow
After manual weighing and method selection, the instrument automatically performs extractant dispensing, temperature control, shaking, and filtration without requiring continuous manual intervention.
• Flexible Method Management
The programmable method library allows users to edit and modify extraction time, temperature, liquid volume, and other parameters. Methods can be saved, recalled, and reused for routine testing.
• Efficient Filtration System
The optimized filtration structure provides fast filtration and clear filtrate, helping reduce retesting caused by incomplete or ineffective filtration.
• Five Independent Dispensing Channels
Five independently controlled dispensing channels can simultaneously add extractant to five samples. Each channel can be switched independently to accommodate different extractants or dispensing strategies.
• Parallel Batch Filtration
All 40 samples can be filtered in parallel, helping maintain consistent processing time throughout the batch.
• Programmable Shaking Modes
Shaking time can be freely configured, with continuous and intermittent shaking modes available to meet different extraction requirements.

Working Principle
The FAE-001 automates the conventional soil extraction pretreatment process.
After soil samples are loaded and the corresponding extraction method is selected, the instrument automatically dispenses the specified volume of extractant through its independent dispensing channels. The samples are then subjected to controlled temperature conditions and horizontal shaking according to the programmed method.
After extraction, the system performs batch parallel filtration of the samples. By automating the key operations from extractant addition to filtration, the instrument minimizes manual intervention and improves the consistency of sample pretreatment.

Technical Specifications

Parameter	Specification
Rated Voltage	220 ± 10 V
Shaking Speed	0–300 rpm
Shaking Mode	Horizontal Shaking
Shaking Amplitude	20–30 mm
Temperature Control Accuracy	0.5°C
Temperature Fluctuation	±0.5°C
Temperature Control Range	10–60°C
Sample Capacity	40 Positions
Liquid Dispensing Speed	≤100 mL/min

Applications
The FAE-001 is suitable for automated sample pretreatment in agricultural and soil testing laboratories.
Typical applications include:
• Agricultural soil nutrient analysis
• Soil organic matter testing
• Available nutrient extraction
• Routine soil fertility testing
• Agricultural laboratory sample preparation
• Soil quality assessment
• Batch soil sample pretreatment
• Research and testing laboratories

Application Scenarios
Agricultural Soil Testing Laboratories
For laboratories processing large numbers of soil samples, the 40-position capacity allows multiple samples to be processed in parallel, reducing repetitive manual operations.
Soil Nutrient Analysis
The programmable extraction parameters allow the instrument to accommodate different extraction methods and conditions used for soil nutrient analysis.
High-Throughput Sample Pretreatment
Automated dispensing, shaking, temperature control, and filtration make the FAE-001 suitable for laboratories seeking to improve sample pretreatment throughput and standardization.
Routine Batch Testing
Stored extraction methods can be recalled when needed, simplifying routine testing procedures and reducing the need for repeated manual parameter settings.

Advantages Over Manual Soil Extraction

Comparison	Manual Extraction	FAE-001 Fully Automatic Soil Extraction System
Sample Capacity	Limited by manual operation	Up to 40 samples per batch
Extractant Addition	Manual	Automated
Temperature Control	Manual or separate equipment	Automated
Shaking	Manual or separate equipment	Programmable
Extraction Timing	Operator dependent	Method controlled
Filtration	Usually manual	Automated batch filtration
Batch Consistency	Can vary between samples/operators	Improved consistency
Labor Requirement	High	Significantly reduced
Method Management	Manual recording/settings	Programmable and storable methods

FAQ
What is the FAE-001 used for?
The FAE-001 is used for automated pretreatment of agricultural soil samples, including extractant addition, temperature-controlled extraction, shaking, and filtration.
How many samples can the FAE-001 process at one time?
The system supports up to 40 samples per batch, making it suitable for high-throughput soil testing laboratories.
Can different extraction methods be programmed?
Yes. The instrument provides a programmable method library that allows users to set and save parameters such as extraction time, temperature, and extractant volume.
Does the instrument require continuous manual operation?
No. After samples are loaded and the appropriate method is selected, the instrument automatically completes the programmed extraction and filtration process without continuous manual intervention.
How many extractant dispensing channels are available?
The FAE-001 is equipped with five independent dispensing channels, and each channel can be independently controlled.
What shaking modes are supported?
The instrument supports programmable shaking time as well as continuous and intermittent shaking modes.
What is the temperature control range?
The temperature control range is 10–60°C, with a temperature fluctuation of ±0.5°C.
What are the main advantages of automatic soil extraction?
Automation reduces repetitive manual work, improves batch-to-batch consistency, standardizes extraction conditions, and increases the efficiency of soil sample pretreatment.
