F97 Fluorescence Spectrophotometer

Position: Home > > Analytical instruments > Spectroscopy Equipment > Fluorescence spectrophotometer > F97 Fluorescence Spectrophotometer

F97 Fluorescence Spectrophotometer

Product ID：FGyg002

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberF97

Brand NameSHLENGGUANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

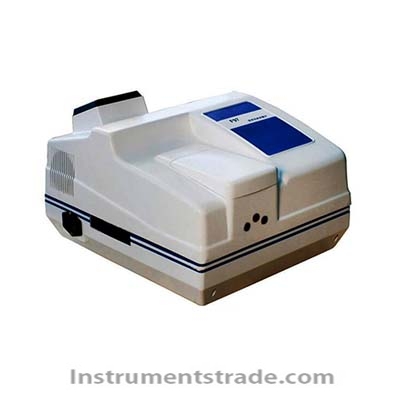

F97 Fluorescence Spectrophotometer

Product Introduction
The F97 Fluorescence Spectrophotometer is a high-sensitivity analytical instrument designed for fluorescence measurement, spectral scanning, and quantitative analysis. It features a double-monochromator optical system, a dual-beam excitation light monitoring system, and a 150 W high-intensity xenon lamp to support stable optical performance and sensitive signal detection.
Equipped with a 1200 lines/mm concave grating and large-aperture aspheric mirrors, the F97 provides excitation and emission wavelength coverage from 200 to 900 nm. Its software supports multiple analytical functions, while rapid three-dimensional fluorescence scanning can be completed in approximately one minute under the specified operating conditions. A built-in automatic light-blocking door helps protect light-sensitive samples and improve measurement consistency.

Performance Features
• Double-Monochromator Optical System: Provides wavelength selection for excitation and emission measurements.
• Dual-Beam Excitation Monitoring: Monitors excitation light intensity to improve signal stability and measurement reliability.
• High-Intensity Xenon Lamp: Uses a 150 W xenon lamp to provide illumination across the specified spectral range.
• Wide Spectral Coverage: Supports excitation and emission measurements from 200 to 900 nm.
• Rapid 3D Fluorescence Scanning: Completes full three-dimensional spectral scanning in approximately one minute, according to the manufacturer.
• Adjustable Spectral Bandwidth: Offers four selectable bandwidth settings: 2, 5, 10, and 20 nm.
• High Sensitivity: Achieves a water Raman peak signal-to-noise ratio of at least 200 (peak-to-peak).
• Large Photometric Range: Displays fluorescence photometric values from 0.00 to 10,000.
• Automatic Light-Blocking Door: Helps minimize unwanted light exposure for photosensitive samples and supports consistent excitation timing.
• Flexible Software Analysis: Provides multiple analytical functions for different sample testing requirements.
• Convenient Data Export: Supports Microsoft Excel-compatible data and BMP image output.
• USB 2.0 Connectivity: Enables straightforward connection to a computer for data transmission and instrument operation.

Working Principle
The F97 Fluorescence Spectrophotometer measures the light emitted by a sample after excitation at a selected wavelength. The xenon lamp provides the excitation light, and the excitation monochromator selects the required wavelength. When the sample absorbs this energy, fluorescent molecules may emit light at longer wavelengths.
The emission monochromator separates the emitted light by wavelength, and a photomultiplier tube detects the resulting optical signal. The dual-beam excitation monitoring system tracks excitation intensity to help compensate for light-source fluctuations. The software processes the measured signal to generate fluorescence spectra and support quantitative analysis.

Technical Parameters

Parameter	Specification
Model	F97
Detection Sensitivity	Water Raman peak S/N ≥ 200 (P-P)
Spectral Bandwidth	2, 5, 10, or 20 nm
Excitation Wavelength Accuracy	±0.4 nm
Wavelength Repeatability	≤0.2 nm
Light Source	150 W high-intensity xenon lamp
Optical System	Double-monochromator system with automatic wavelength scanning and dual-beam excitation monitoring
Detector	Imported photomultiplier tube
Excitation Wavelength Range	200–900 nm
Emission Wavelength Range	200–900 nm
Wavelength Scanning Speed	Up to 48,000 nm/min; fine scanning at 15 nm/min
Linear Measurement Correlation Coefficient	≥0.995
Integration Response Time	Six selectable settings; 20 ms–4 s
Gain Adjustment	17 selectable levels
Data Output	Microsoft Excel-compatible format and BMP images
Data Transmission	USB 2.0
Fluorescence Photometric Value Range	0.00–10,000
Peak Intensity Repeatability	≤1.5%
Power Supply	220 V/50 Hz or 110 V/60 Hz
Power Consumption	200 W
Dimensions (W × D × H)	380 × 445 × 310 mm
Net Weight	12 kg
Gross Weight	14 kg

Note: The original specification contains some ambiguous wording regarding the xenon lamp's automatic function and the integration response time settings. These details should be confirmed with the manufacturer before publication.

Application Scenarios
• Chemical and Biochemical Laboratories: Fluorescence measurement and quantitative analysis of fluorescent compounds.
• Pharmaceutical Research: Fluorescence-based studies of compounds, formulations, and analytical samples.
• Environmental Analysis: Fluorescence characterization of suitable water and environmental samples.
• Life Science Research: Spectral analysis of fluorescent probes, dyes, and other fluorescent materials.
• Academic and Scientific Research: Excitation spectra, emission spectra, and three-dimensional fluorescence analysis.
• Quality Control Laboratories: Fluorescence intensity measurement and repeatability assessment.

F97 vs. Conventional Fluorescence Spectrophotometers

Comparison Item	F97 Fluorescence Spectrophotometer	Conventional Fluorescence Spectrophotometer
Optical Configuration	Double monochromators	Depends on model
Excitation Monitoring	Dual-beam monitoring system	Varies by configuration
Light Source	150 W xenon lamp	Depends on model
Wavelength Coverage	200–900 nm excitation and emission	Model-dependent
Spectral Bandwidth	Four selectable settings	Depends on model
3D Spectral Scanning	Approximately one minute under specified conditions	Depends on scanning configuration
Data Connectivity	USB 2.0	Depends on model
Data Export	Excel-compatible files and BMP images	Depends on software
Light-Sensitive Sample Protection	Built-in automatic light-blocking door	Varies by design

Frequently Asked Questions
1. What is the F97 Fluorescence Spectrophotometer used for?
It is used for fluorescence intensity measurement, excitation and emission spectral analysis, quantitative fluorescence testing, and three-dimensional fluorescence scanning.
2. What is the wavelength range of the F97?
Both excitation and emission wavelength ranges are specified as 200–900 nm.
3. What light source does the F97 use?
It uses a 150 W high-intensity xenon lamp to provide illumination for fluorescence measurements.
4. How sensitive is the F97 Fluorescence Spectrophotometer?
Its specified detection sensitivity is a water Raman peak signal-to-noise ratio of at least 200 (peak-to-peak).
5. What spectral bandwidth settings are available?
Users can select bandwidths of 2, 5, 10, or 20 nm according to the analytical requirements.
6. Can the F97 perform three-dimensional fluorescence scanning?
Yes. The instrument supports rapid three-dimensional fluorescence scanning, which the manufacturer states can be completed in approximately one minute under specified conditions.
7. How can measurement data be exported?
The instrument supports Excel-compatible data output and BMP image export, with USB 2.0 connectivity for computer communication.
8. Does the F97 support light-sensitive samples?
Its built-in automatic light-blocking door helps reduce unwanted light exposure and supports consistent excitation conditions for photosensitive samples.
9. What are the power and installation requirements?
The specified power options are 220 V/50 Hz and 110 V/60 Hz. Power consumption is 200 W, and the instrument dimensions are 380 × 445 × 310 mm, with a net weight of 12 kg.
