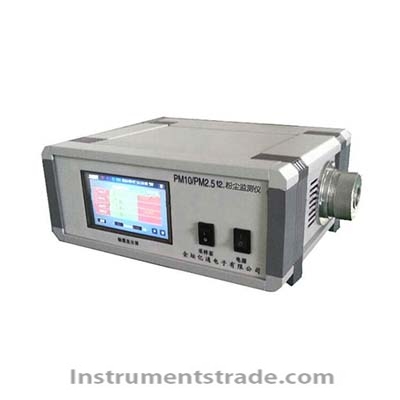

ET-08A Online Air Dust Monitor

Position: Home > > Environmental monitoring and analysis > Airborne particulate matter > PM2.5 atmospheric particulate monitor > ET-08A Online Air Dust Monitor

ET-08A Online Air Dust Monitor

Product ID：HQKLPM2.5015

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberET-08A

Brand NameCZYITONG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ET-08A Online Air Dust Monitor

Product Introduction
The ET-08A Online Air Dust Monitor is designed for continuous monitoring of airborne particulate matter and dust concentration in industrial, occupational, public, and environmental settings. Based on laser light scattering technology, it measures particle counts and relative mass concentration, supporting online measurement and remote data transmission.
Unlike basic handheld dust meters, the ET-08A supports configurable sampling flow rates, touchscreen operation, adjustable calibration coefficients, and RS485 communication. It can display PM1, PM2.5, PM5, and PM10 particle counts alongside dust concentration, providing practical data for dust control and air quality monitoring.

Performance Features
• Laser Light Scattering: Enables rapid detection of airborne particles and calculation of relative mass concentration.
• Multiple Particle Size Channels: Displays PM1, PM2.5, PM5, and PM10 particle counts separately.
• Wide Measurement Range: Measures dust concentrations from 0.01 to 100 mg/m³, with customized ranges available.
• Online Monitoring: Supports continuous measurement and scheduled sampling.
• Touchscreen Operation: Allows users to configure K-values, correction coefficients, measurement settings, and alarm functions.
• RS485 Communication: Connects to computers and data acquisition systems for remote monitoring.
• Data Storage: Stores up to 256 measurement records.
• Portable Power Supply: A 12 V rechargeable battery provides up to 12 hours of continuous operation.

Working Principle
The ET-08A uses the laser light scattering principle. Sampled air enters through the instrument's inlet and passes through a labyrinth-type particle separator that removes larger particles and helps block external light.
Inside the dark measurement chamber, airborne particles pass through a sensitive optical zone. Scattered light collected at approximately 90° to the incident beam is converted into an electrical signal by a photomultiplier tube. The instrument processes the signal pulses to determine particle counts and calculate relative mass concentration.
Results are displayed as counts per minute (CPM) and dust concentration in mg/m³. With suitable calibration and correction coefficients, the instrument can provide concentration readings for different measurement environments.

Technical Parameters

Parameter	Specification
Model	ET-08A
Product Type	Online Air Dust Monitor
Measurement Principle	Laser light scattering
Detection Sensitivity	1 CPM = 0.01 mg/m³ under specified calibration conditions
Dust Concentration Range	0.01–100 mg/m³
Customized Range	Available upon request
Sampling Flow Rate	3–16 L/min
Particle Size Channels	PM1, PM2.5, PM5, PM10
Measurement Accuracy	±10% for relative calibration particles
Display and Control	Microcomputer touchscreen, digital display
Calibration Settings	Adjustable K-value and correction coefficient
Measurement Time	Standard 90 seconds; user-adjustable
Data Storage	Up to 256 records
Measurement Modes	Scheduled and continuous measurement
Alarm Function	Supported
Communication Interface	RS485
Remote Data Transmission	Connection to PC and data acquisition systems
Power Supply	12 V rechargeable battery
Battery Runtime	Up to 12 hours
Operating Temperature	−5°C to 40°C

Note: Sensitivity and accuracy depend on the specified calibration particles and measurement conditions. Confirm the required configuration and communication setup when ordering.

Application Scenarios
• Occupational Health: Monitoring respirable dust and workplace exposure conditions.
• Industrial Dust Control: Continuous monitoring of dust generated during manufacturing, processing, and material handling.
• Environmental Monitoring: Rapid and online monitoring of airborne particulate matter, including PM2.5 and PM10.
• Public Spaces: Assessing inhalable particulate levels in indoor and public environments.
• Dust Concentration Measurement: Supporting total dust concentration assessment and dust-control system evaluation.
• Remote Monitoring Systems: Transmitting measurement data to control rooms, computers, or compatible remote monitoring platforms.

ET-08A vs. Conventional Handheld Dust Meters

Feature	ET-08A Online Air Dust Monitor	Conventional Handheld Dust Meter
Monitoring Mode	Online and continuous monitoring	Typically spot measurements
Sampling Flow	Configurable from 3–16 L/min	Depends on model
Particle Measurement	PM1, PM2.5, PM5, PM10 channels	Depends on model
Dust Concentration	0.01–100 mg/m³	Depends on model
Remote Communication	RS485 interface	May be unavailable
Data Storage	Up to 256 records	Depends on model
Calibration Adjustment	Adjustable K-value and correction coefficient	Depends on model
Typical Applications	Industrial, occupational, and environmental monitoring	Portable inspection and field sampling

Frequently Asked Questions
1. What does the ET-08A online air dust monitor measure?
It measures airborne particle counts and relative dust mass concentration, with PM1, PM2.5, PM5, and PM10 channels.
2. What is the measurement range of the ET-08A?
The standard dust concentration range is 0.01–100 mg/m³. Customized measurement ranges may be available.
3. How does the ET-08A detect airborne dust?
It uses laser light scattering. Scattered light from particles is converted into electrical signals, which are processed to calculate particle counts and relative mass concentration.
4. Can the ET-08A support continuous online monitoring?
Yes. It supports continuous measurement and scheduled measurement, making it suitable for fixed monitoring points and compatible online monitoring systems.
5. Does the instrument support remote data transmission?
Yes. Its RS485 interface supports connection to a computer or data acquisition system for remote data transmission, subject to system compatibility.
6. How many measurement records can it store?
The instrument can store up to 256 records.
7. How long can the ET-08A operate on battery power?
Its 12 V rechargeable battery supports up to 12 hours of continuous operation under specified conditions.
8. What is the measurement accuracy?
The stated accuracy is ±10% for relative calibration particles. Actual results depend on calibration, particle characteristics, and measurement conditions.
9. Where can the ET-08A be used?
Typical applications include workplace dust monitoring, industrial production areas, public spaces, environmental particulate monitoring, and remote dust monitoring systems.
